PNOZ X9
Operating Manual PNOZ X9
19526-EN-09
13
NOTICE
In the event of an automatic start or manual start with a bridged start
contact (fault case)
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.

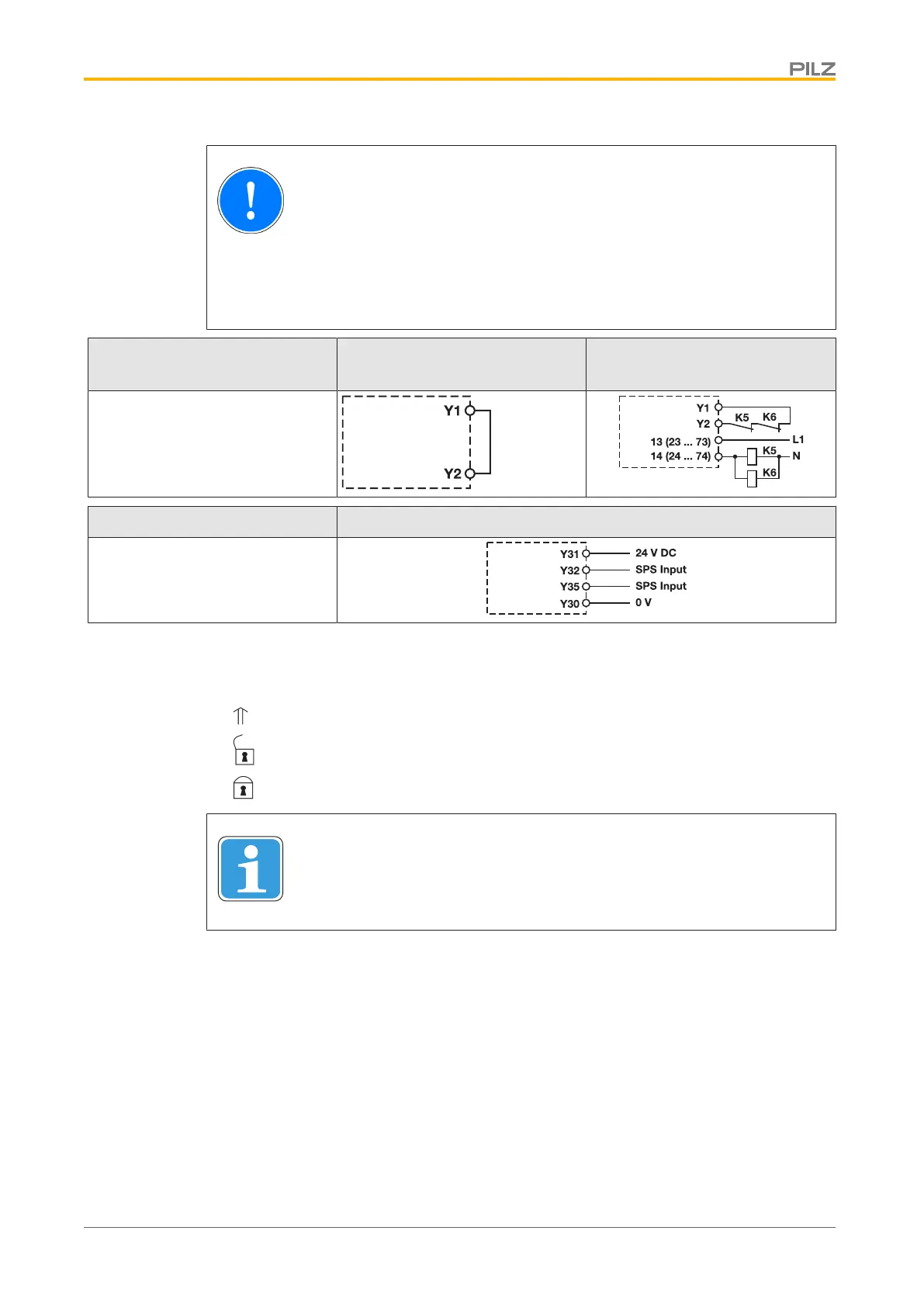

Feedback loop
without feedback loop monitor-
ing
with feedback loop monitoring
Link or contacts from external con-
tactors
Semiconductor output
Y31, Y30: External supply voltage
Legend
} S1/S2: E-STOP/safety gate switch
} S3: Reset button
} : Switch operated
} : Gate open
} : Gate closed
INFORMATION
With automatic and manual start, Y1 and S37 must not be linked.
