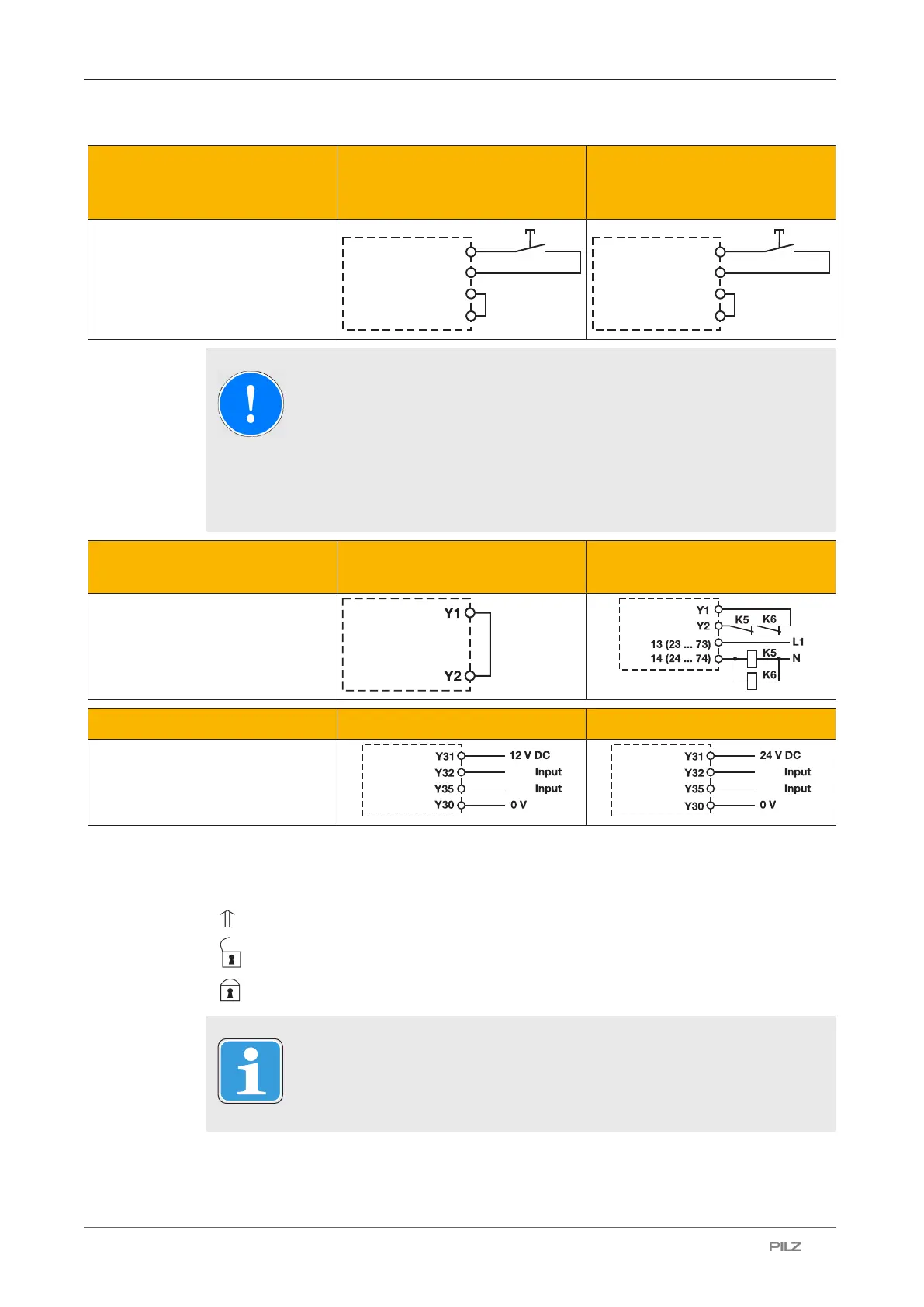

Start circuit Single-channel, dual-channel
without detection of shorts
across contacts
Dual-channel with detection of
shorts across contacts
Monitored start
NOTICE
In the event of an automatic start or manual start with a bridged start
contact (fault case)
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.
Feedback loop without feedback loop monitor-
ing
with feedback loop monitoring
Link or contacts from external con-
tactors
Semiconductor output U
B
: 12 V DC U
B
: 24 V DC; 24-240 V AC/DC
Y31, Y30: External supply voltage
Legend
} S1/S2: E-STOP/safety gate switch
} S3: Reset button
} : Switch operated
} : Gate open
} : Gate closed
INFORMATION
With automatic and manual start, Y1 and S37 must not be linked.
