Remove plug-in terminals

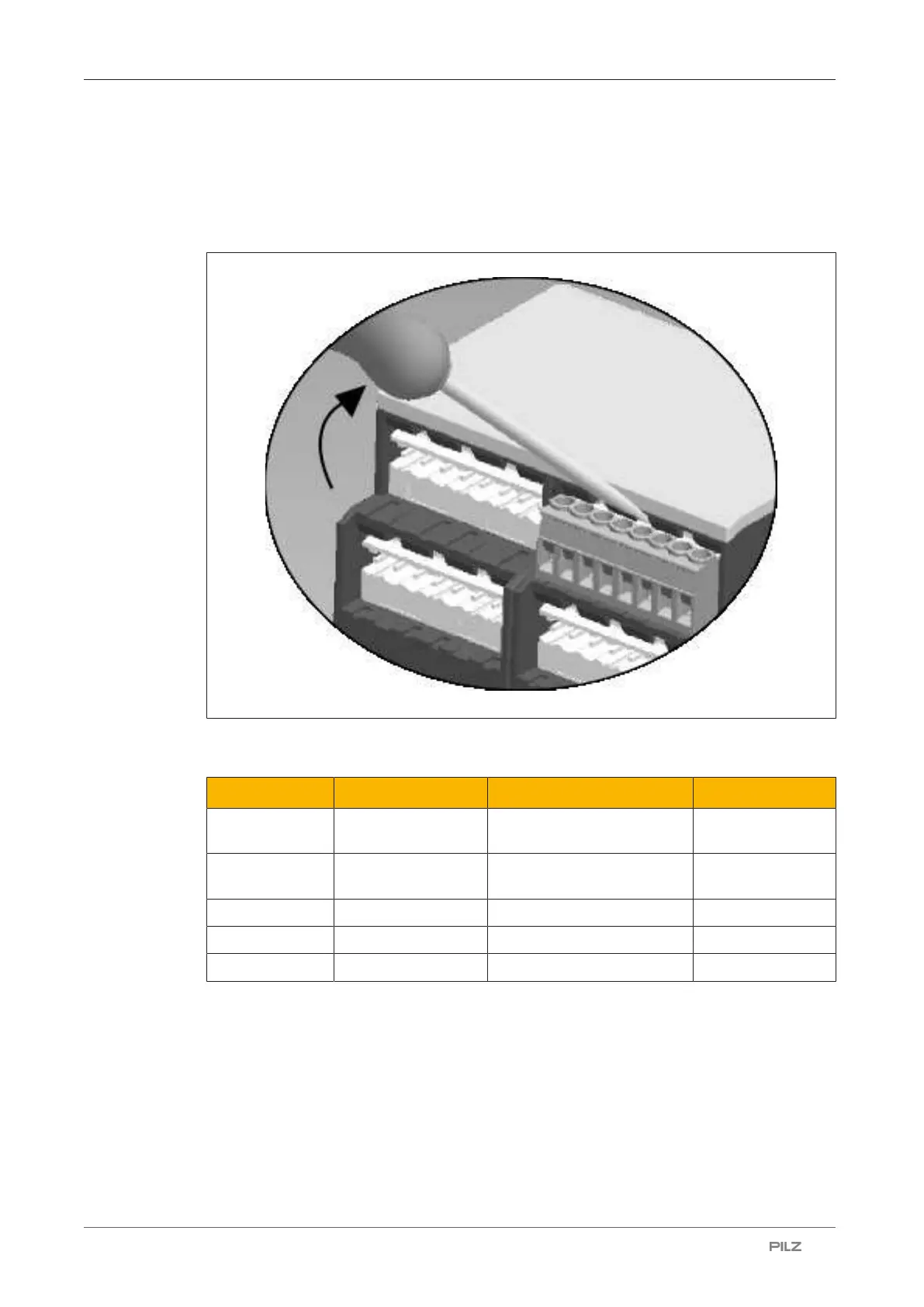

Procedure: Insert the screwdriver into the housing recess behind the terminal and lever the
terminal out.
Do not remove the terminals by pulling the cables!
Order reference
Product type Features Connection type Order no.
PNOZ X9P 24-240 V AC/DC,
24 V DC
Screw terminals 777606
PNOZ X9P C 24-240 V AC/DC,
24 V DC
Spring-loaded terminals 787606
PNOZ X9P 12 V DC Screw terminals 777607
PNOZ X9P 24 V DC Screw terminals 777609
PNOZ X9P C 24 V DC Spring-loaded terminals 787609
EC declaration of conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma-
chinery of the European Parliament and of the Council. The complete EC Declaration of
Conformity is available on the Internet at www.pilz.com/support/downloads.
Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost-
fildern, Germany
