PNOZ XV1P
Operating Manual PNOZ XV1P
20596-EN-07
13
NOTICE
Operation with a light guard or safety switch
It must not be possible to switch off the supply voltage for the PNOZ XV1P
separately from the supply voltage for the light guard or safety switch.

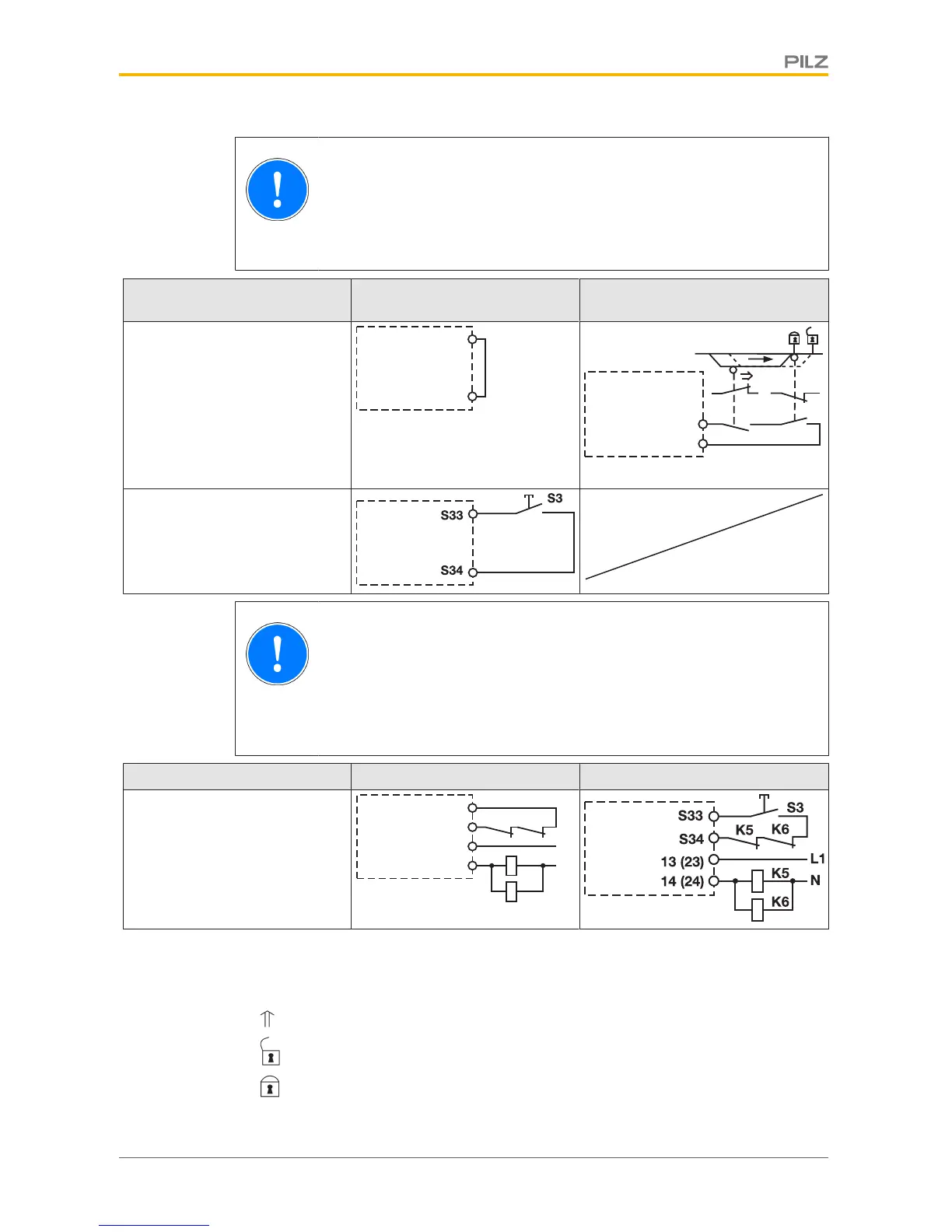

Start circuit
E-STOP wiring, safety gate
without start-up test Safety gate with start-up test
Automatic start
S11
S14
S2S1
S11
S14
Simultaneity S1 and S2: max. 1 s
Monitored start
NOTICE
In the event of an automatic start:
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.
Feedback loop Automatic start Monitored start
Contacts from external contactors
K5
K6
K5
L1
N
K6
S11
13 (23)
S14
14 (24)
Legend
} S1/S2: E-STOP/safety gate switch
} S3: Reset button
} : Switch operated
} : Gate open
} : Gate closed
