PNOZ XV1P
Operating Manual PNOZ XV1P
20596-EN-07
28

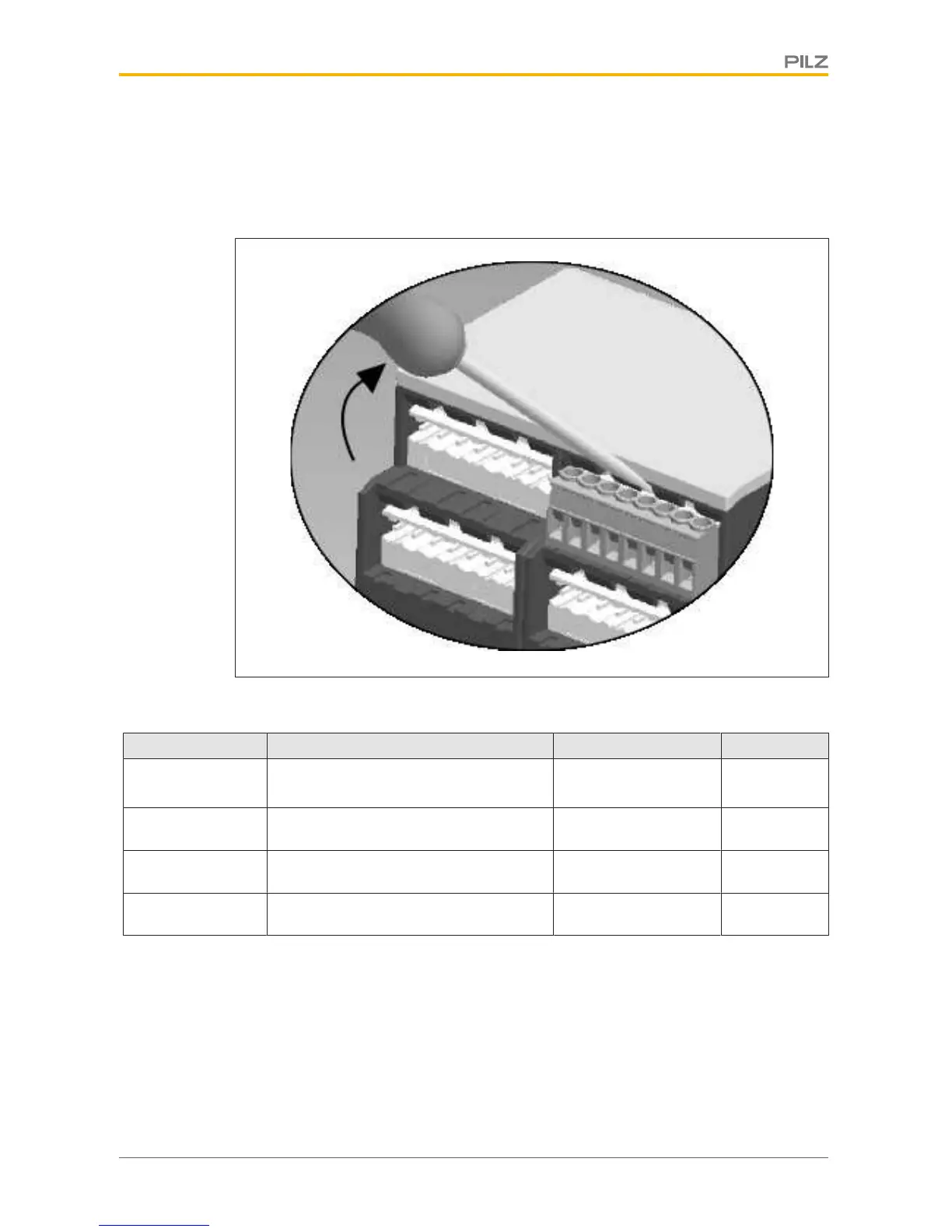

Remove plug-in terminals
Procedure: Insert the screwdriver into the housing recess behind the terminal and lever the
terminal out.
Do not remove the terminals by pulling the cables!
Order reference
Product type Features Connection type Order no.
PNOZ XV1P 24 VDC;
Delay: up to 3 s selectable
Screw terminals 777 601
PNOZ XV1P C 24 VDC;
Delay: up to 3 s selectable
Spring-loaded terminals 787 601
PNOZ XV1P 24 VDC;
Delay: up to 30 s selectable
Screw terminals 777 602
PNOZ XV1P C 24 VDC;
Delay: up to 30 s selectable
Spring-loaded terminals 787 602
EC declaration of conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma-
chinery of the European Parliament and of the Council. The complete EC Declaration of
Conformity is available on the Internet at www.pilz.com/support/downloads.
Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost-
fildern, Germany
