Pilz PNOZ XV2 User Manual

PNOZ XV2.1
Operating Manual PNOZ XV2.1
20690-EN-08
| 12

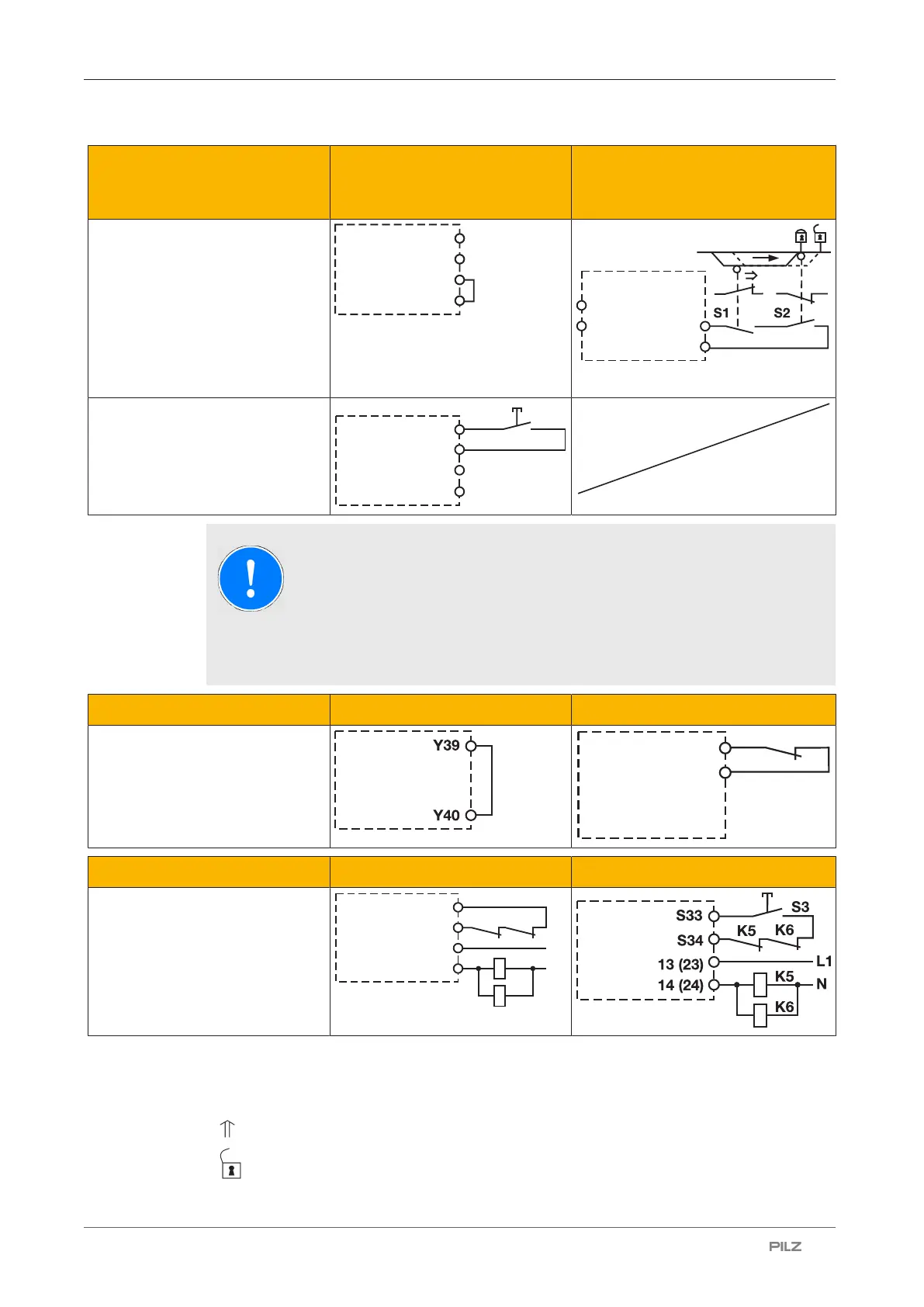

Start circuit E-STOP wiring
Safety gate without start-up
test
Safety gate with start-up test
Automatic start
S33
S34
S13
S14
S33
S13
S34
S14
Simultaneity S1 and S2: max. 3 s
Monitored start
S33
S34
S3
S14
S13
NOTICE
With automatic start
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.
Reset delay time Without reset With reset
Link or N/C contact
Y39
Y40
Feedback loop Automatic start Monitored start
Contacts from external contactors
K5
K6
K5
L1
N
K6
S13
13 (23)
S14
14 (24)
Legend
} S1/S2: E-STOP/safety gate switch
} S3: Reset button
} : Switch operated
} : Gate open

Pilz PNOZ XV2 Specifications

General

Supply Voltage	24 V DC
Width	45 mm
Depth	121 mm
Rated Current	6 A
Protection Class	IP20
Safety Category	Cat. 4
Stop Category	0
Standards	EN 60204-1
Operating Modes	Single-channel
Operating Temperature Range	-10 - 55 °C
