Pilz PNOZ XV2 User Manual

PNOZ XV2.1
Operating Manual PNOZ XV2.1
20690-EN-08
| 11

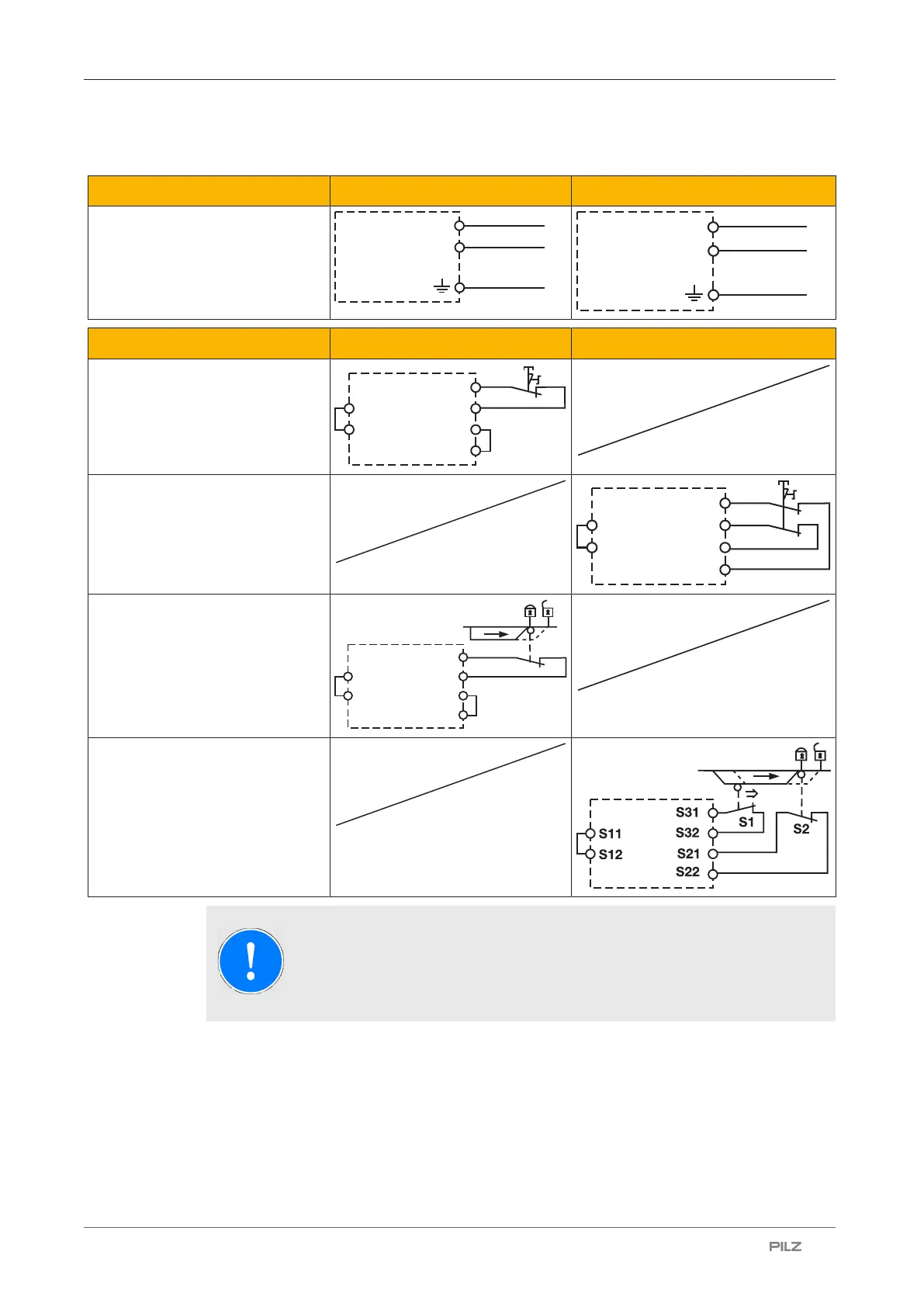

Preparing for operation
Supply voltage AC DC
A1
A2
L1
N
FE
A1
A2
L+
L-
FE
Input circuit Single-channel Dual-channel
E-STOP
without detection of shorts
across contacts
S1
S22
S21
S12
S32
S11
S31
E-STOP
with detection of shorts across
contacts
S1
S22
S31
S32
S21
S12
S11
Safety gate
without detection of shorts
across contacts
S1
S22
S21
S12
S32
S11
S31
Safety gate
with detection of shorts across
contacts
NOTICE
With single-channel wiring the safety level of your machine/plant may be
lower than the safety level of the unit (see Safety characteristic data).

Pilz PNOZ XV2 Specifications

General

Supply Voltage	24 V DC
Width	45 mm
Depth	121 mm
Rated Current	6 A
Protection Class	IP20
Safety Category	Cat. 4
Stop Category	0
Standards	EN 60204-1
Operating Modes	Single-channel
Operating Temperature Range	-10 - 55 °C
