Pilz PNOZ XV2 User Manual

PNOZ XV2.1
Operating Manual PNOZ XV2.1
20690-EN-08
| 7
Unit features
} Positive-guided relay outputs:
– 2 safety contacts (N/O), instantaneous
– 2 safety contacts (N/O), delay-on de-energisation
} Connection options for:
– E-STOP pushbutton
– Safety gate limit switch
– Start button
} LED display for:
– Supply voltage
– Switch state of the safety contacts
– Start circuit
} Delay time fixed or selectable
} Possible to cancel delay time
} See order reference for unit types
Safety features
The safety relay meets the following safety requirements:
} The circuit is redundant with built-in self-monitoring.
} The safety function remains effective in the case of a component failure.
} The correct opening and closing of the safety function relays is tested automatically in
each on-off cycle.

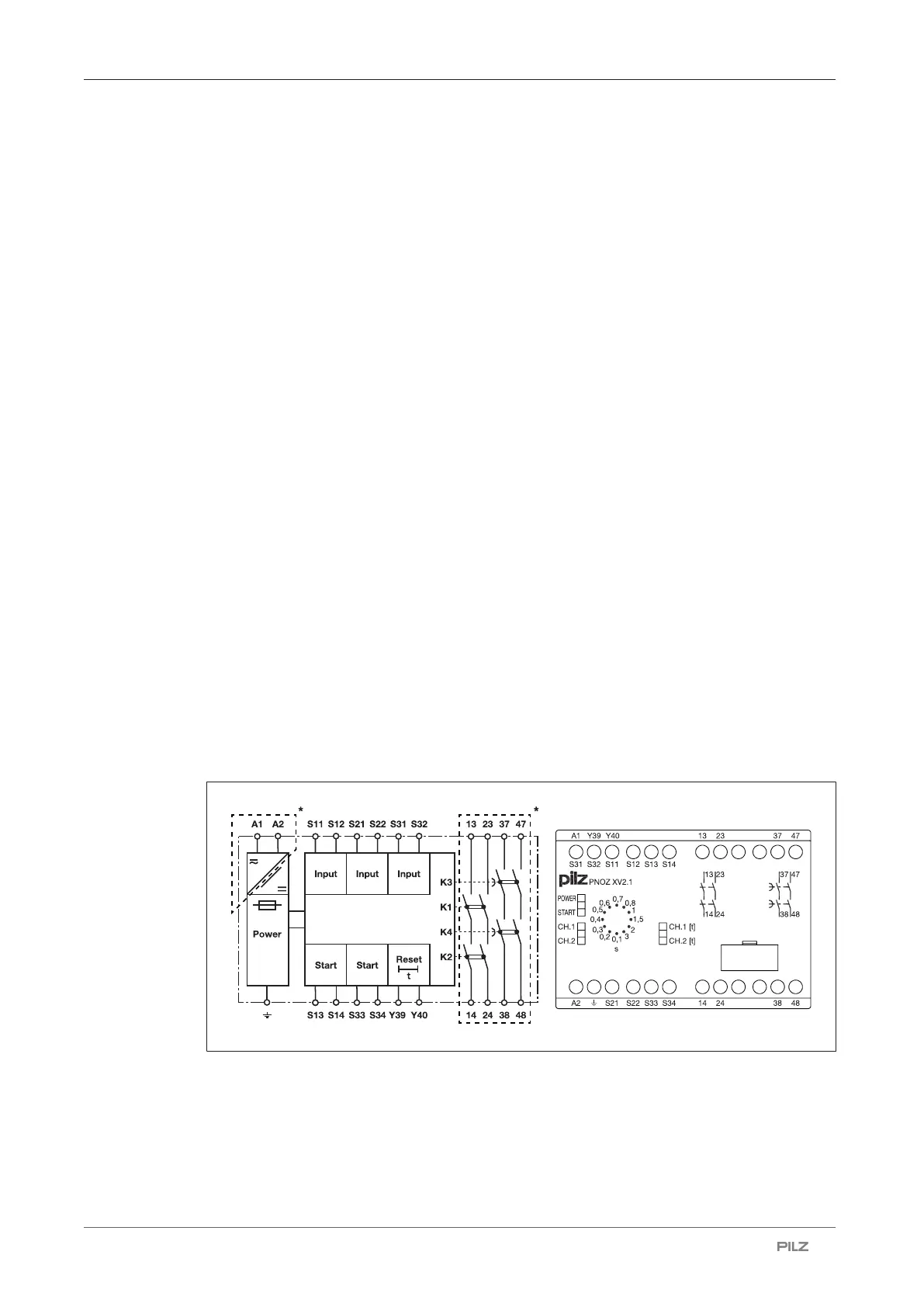

Block diagram/terminal configuration
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)

Pilz PNOZ XV2 Specifications

General

Supply Voltage	24 V DC
Width	45 mm
Depth	121 mm
Rated Current	6 A
Protection Class	IP20
Safety Category	Cat. 4
Stop Category	0
Standards	EN 60204-1
Operating Modes	Single-channel
Operating Temperature Range	-10 - 55 °C
