Faults – Interference
} Earth fault: The supply voltage fails and the safety contacts open. Once the cause of the
respective fault has been rectified and the supply voltage is switched off for approx.
1minute, the unit is ready for operation again.
} Contact malfunctions: If the contacts have welded, reactivation will not be possible after
the input circuit has opened.
} LED "POWER" does not light: Short circuit or no supply voltage.
} In the case of an error, the delay-on de-energisation contacts may open before the delay
time has elapsed.

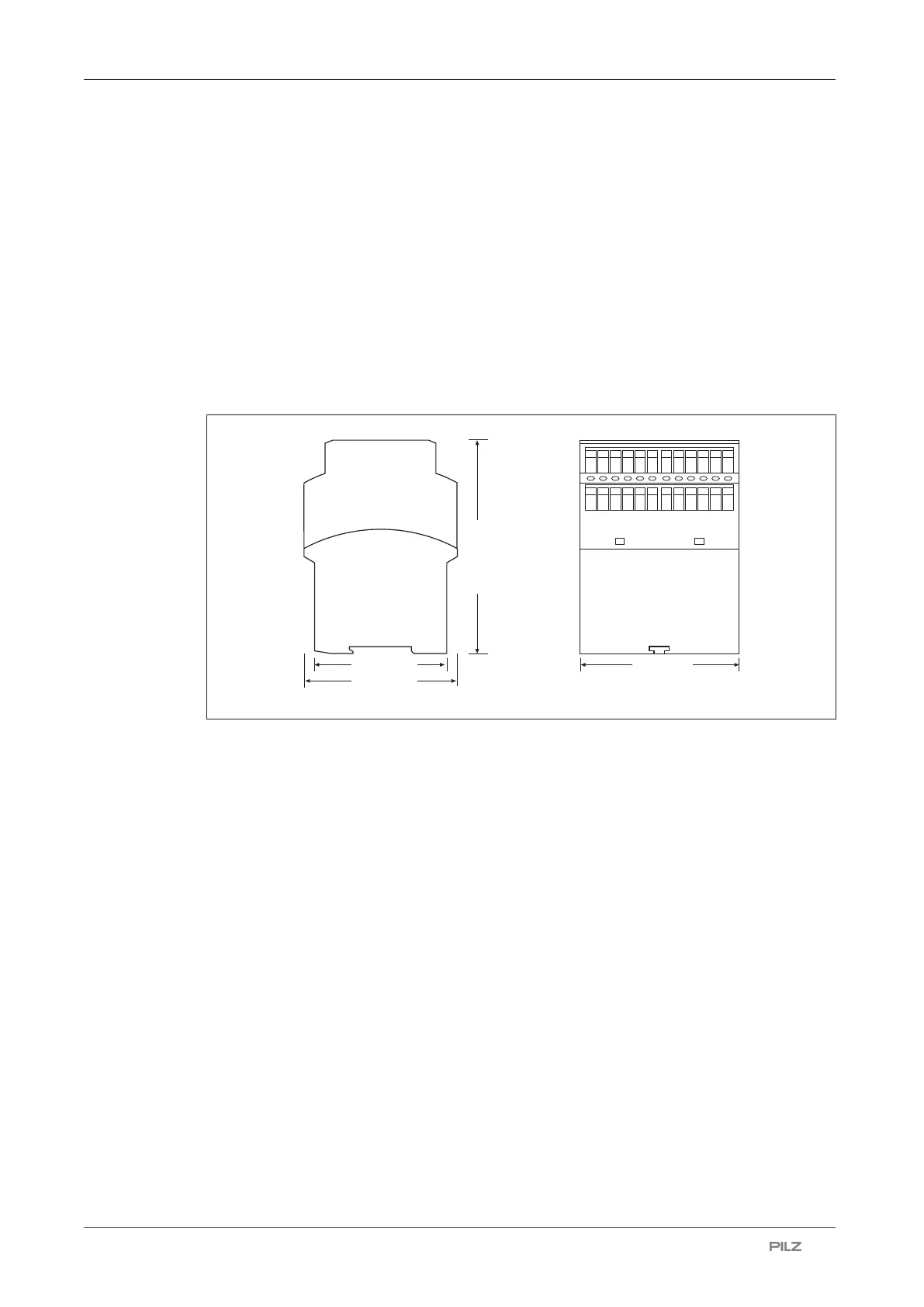

Dimensions in mm
121 (4.76")
75 (2.95")
87 (3.42")
90 (3.54")

Pilz PNOZ XV2 Specifications

General

Supply Voltage	24 V DC
Width	45 mm
Depth	121 mm
Rated Current	6 A
Protection Class	IP20
Safety Category	Cat. 4
Stop Category	0
Standards	EN 60204-1
Operating Modes	Single-channel
Operating Temperature Range	-10 - 55 °C
