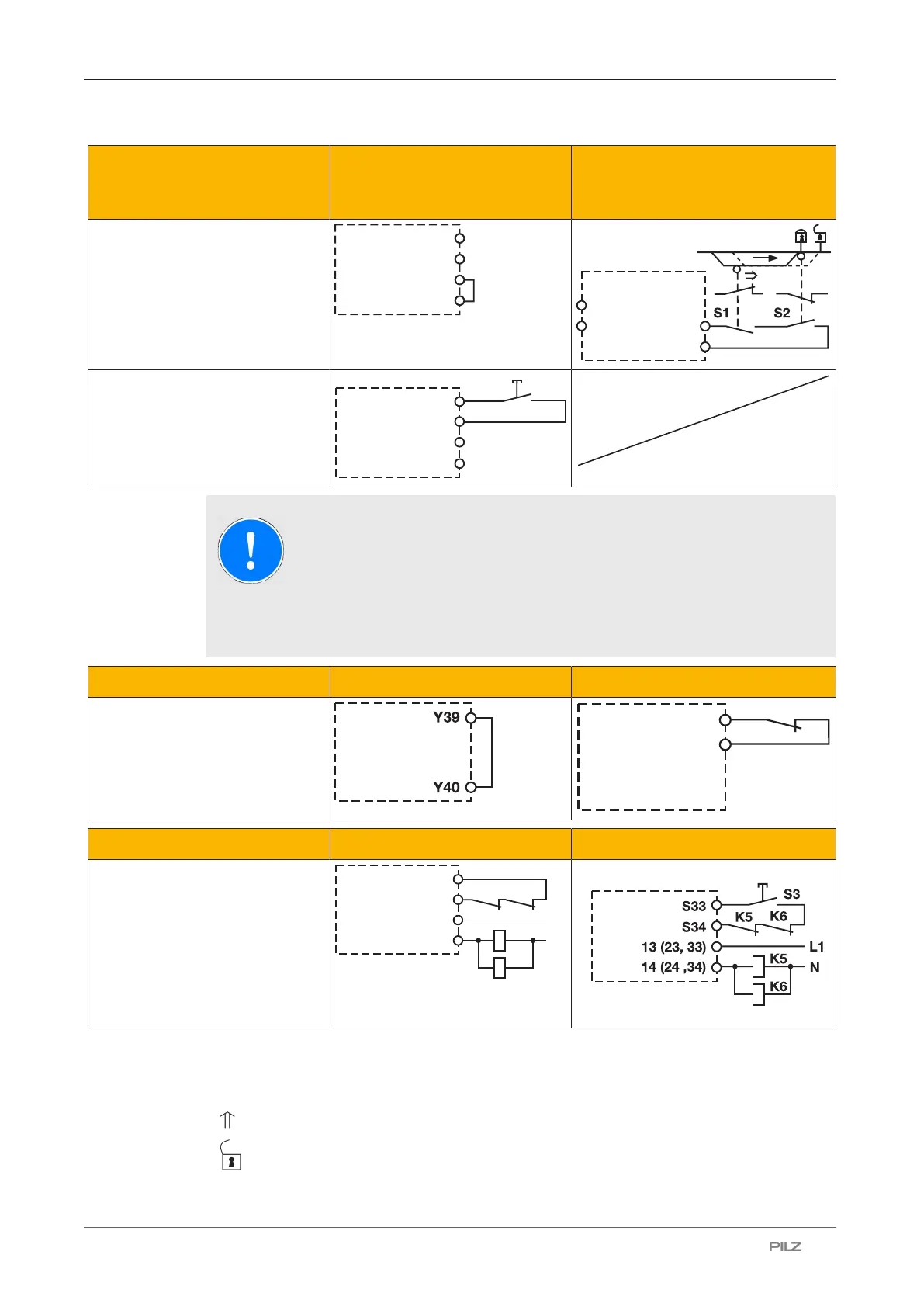

PNOZ XV3.1
Operating Manual PNOZ XV3.1
20515-EN-08
| 13
Start circuit E-STOP wiring
Safety gate without start-up
test
Safety gate with start-up test
Automatic start
S33
S34
S13
S14
S33
S13
S34
S14
Monitored start
S33
S34
S3
S14
S13
NOTICE
In the event of an automatic start:
The unit starts up automatically when the safeguard is reset, e.g. when the
E-STOP pushbutton is released. Use external circuit measures to prevent
an unexpected restart.
Reset delay time Without reset With reset
Link or N/C contact
Y39
Y40
Feedback loop Automatic start Monitored start
Contacts from external contactors
K5
K6
K5
L1
N
K6
S13
13 (23, 33)
S14
14 (24, 34)
Legend
} S1/S2: E-STOP/safety gate switch
} S3: Reset button
} : Switch operated
} : Gate open
