PNOZ XV3P
Operating Manual PNOZ XV3P
20122-EN-05
34

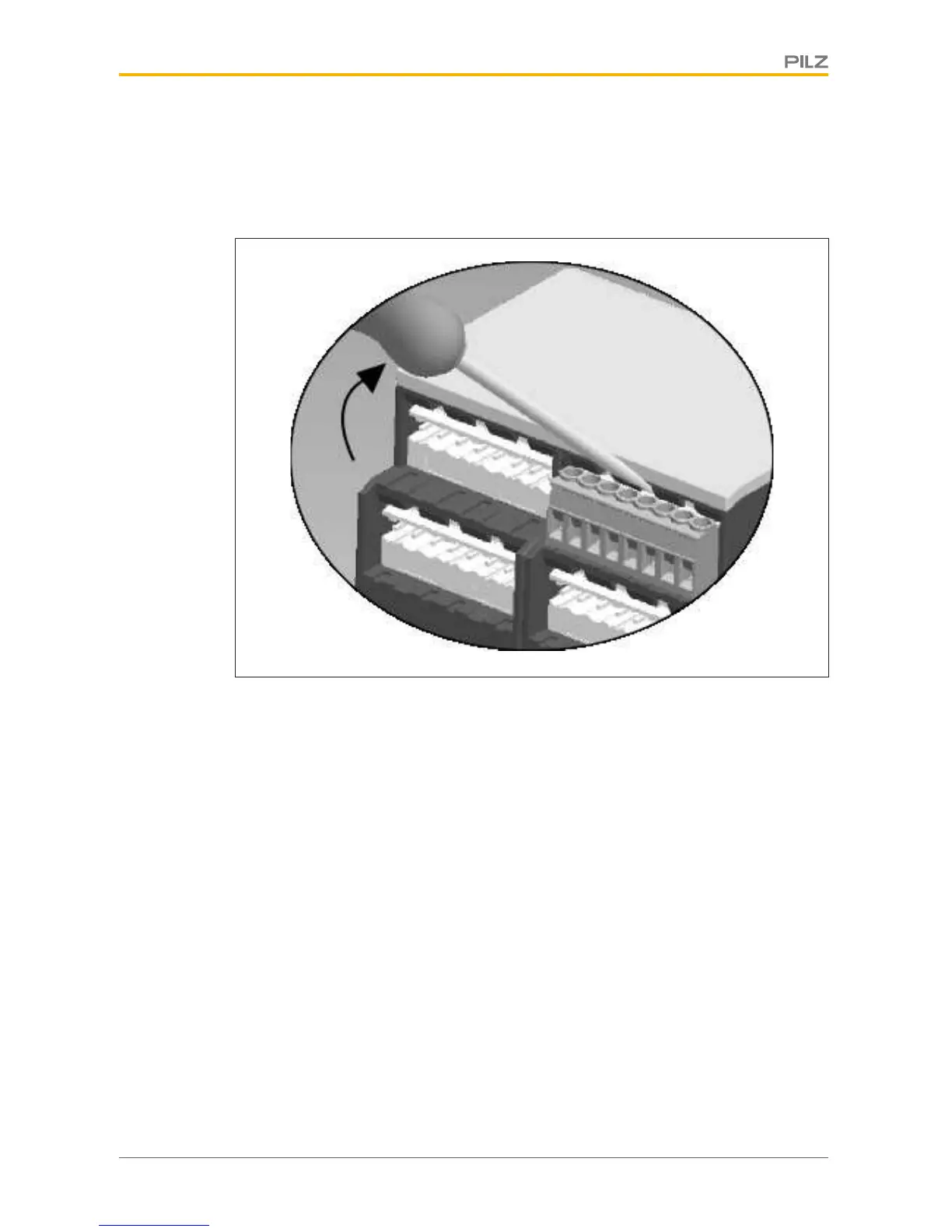

Remove plug-in terminals
Procedure: Insert the screwdriver into the housing recess behind the terminal and lever the
terminal out.
Do not remove the terminals by pulling the cables!
