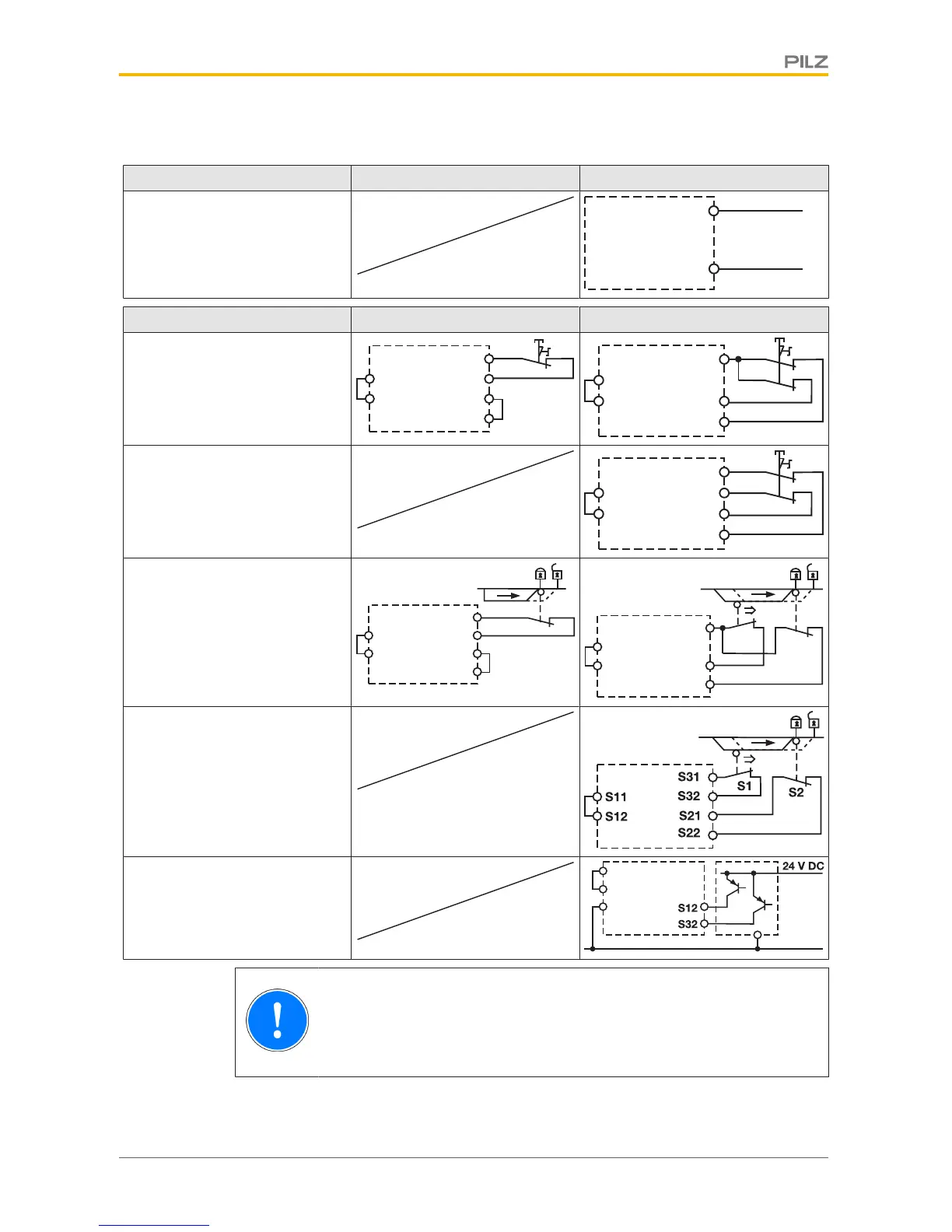

Preparing for operation
Supply voltage AC DC
A1
A2
L+
L-
Input circuit Single-channel Dual-channel
E-STOP
without detection of shorts
across contacts
S1
S22
S21
S12
S32
S11
S31
S1
S11
S12
S32
S22
S21
E-STOP
with detection of shorts across
contacts
S1
S22
S31
S32
S21
S12
S11
Safety gate
without detection of shorts
across contacts
S1
S22
S21
S12
S32
S11
S31
S1
S2
S22
S21
S11
S12
S32
Safety gate
with detection of shorts across
contacts
Light guard or safety switch, de-
tection of shorts across contacts
via ESPE
A2
GND
S21
S22
NOTICE
With single-channel wiring the safety level of your machine/plant may be
lower than the safety level of the unit (see Safety characteristic data).
