PSEN cs3.1p/M12

Operating Manual PSEN cs3.1p/M12

1003296-EN-09

| 27

7. Press on the actuator for at least3seconds with approx. 50N.

After this time, an adhesive force of approx. 50% is achieved. The full adhesive force is

achieved after 72 hours at an ambient temperature of at least 20°C.

8. Check the adhesive force of the glue after 10 minutes.

The actuator must no move when pressed sideways.

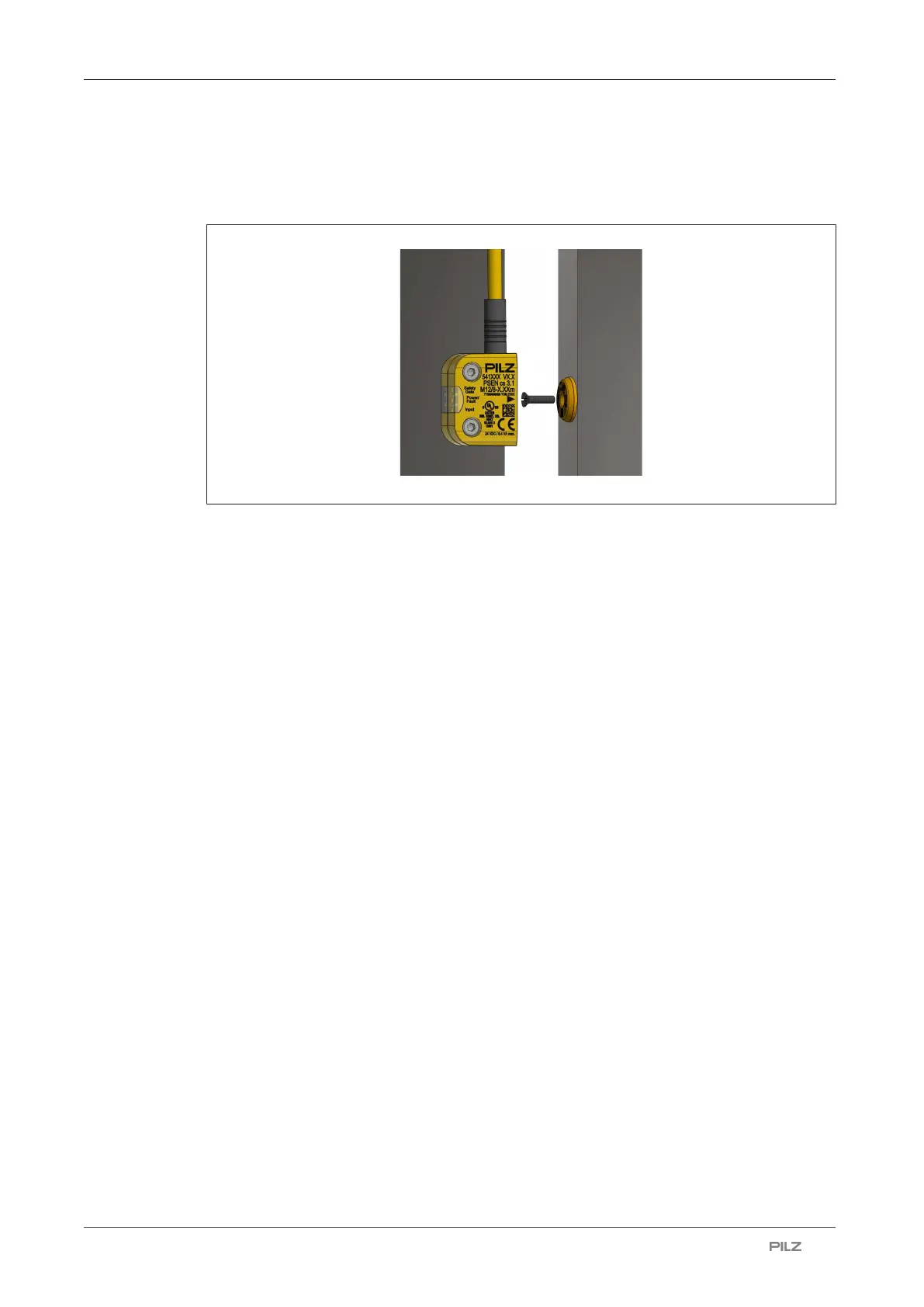

9. Tighten the M3 plastic screw to 0,8 Nm.
