Operation
NOTICE
The safety function should be checked after initial commissioning and each
time the plant/machine is changed. The safety functions may only be
checked by qualified personnel.
Status indicators:
} "Power/Fault" LED lights up green: The unit is ready for operation
} "Safety Gate" LED lights up yellow: Actuator is within the response range
} "Input" LED lights up yellow: There is a high signal at both inputs
Fault indicator:
} "Input" LED lights up yellow: the signal switches from high to low at one input, while a
high signal remains on the other input (partial operation).
Remedy: Open both channels of the input circuit.
} "Power/Fault" LED lights up red: Error message
Remedy: Rectify fault and interrupt power supply.

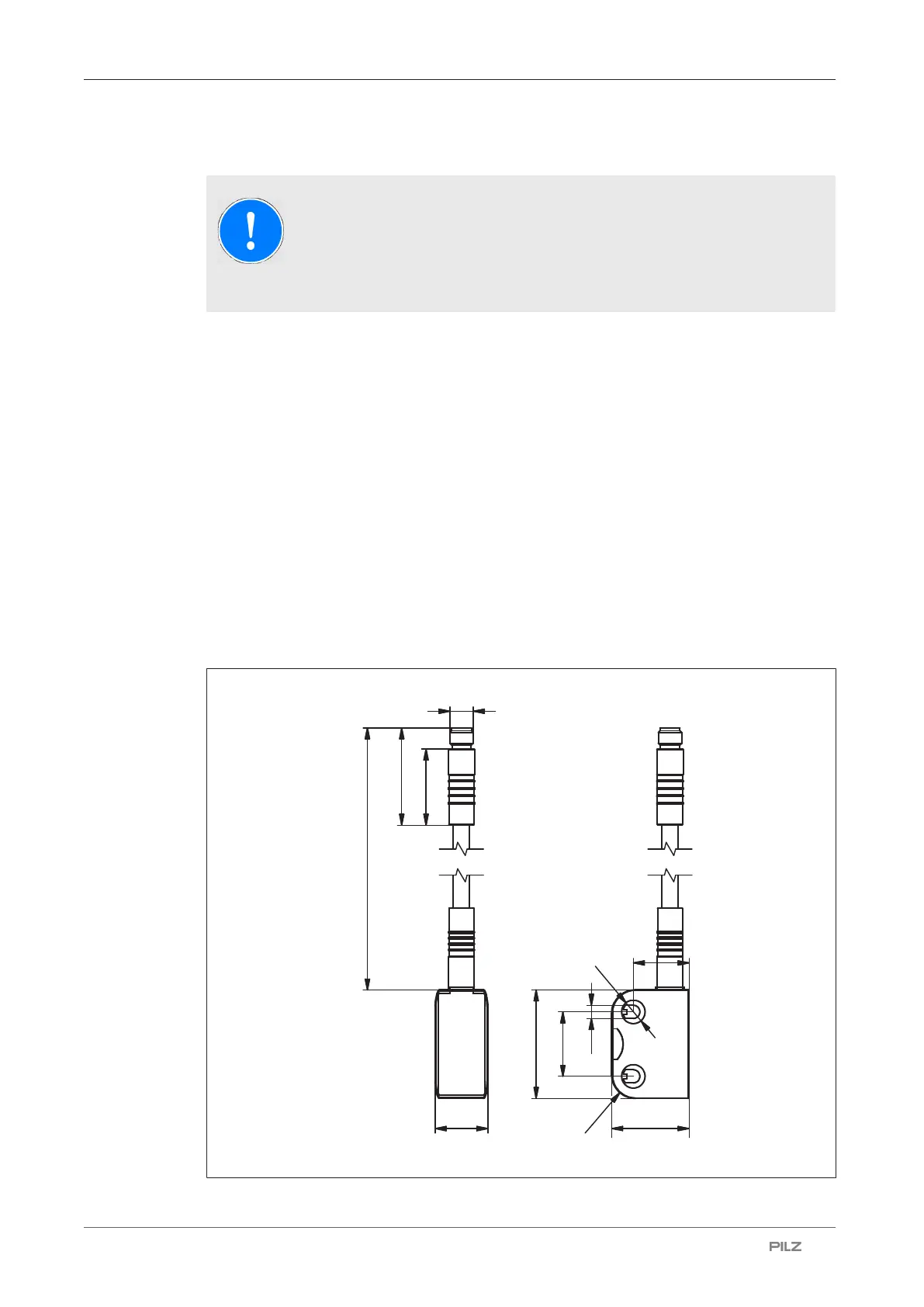

Dimensions in mm
Safety switch PSEN cs3.1p
19
ø 8
18 26,4
R 8
4,5
22 37
M8
33
26
140±10

Pilz PSEN cs3.1p/M12 Specifications

General

Brand	Pilz
Model	PSEN cs3.1p/M12
Category	Switch
Language	English
