If cable lengths greater than those stated in the table are required, please contact Pilz.

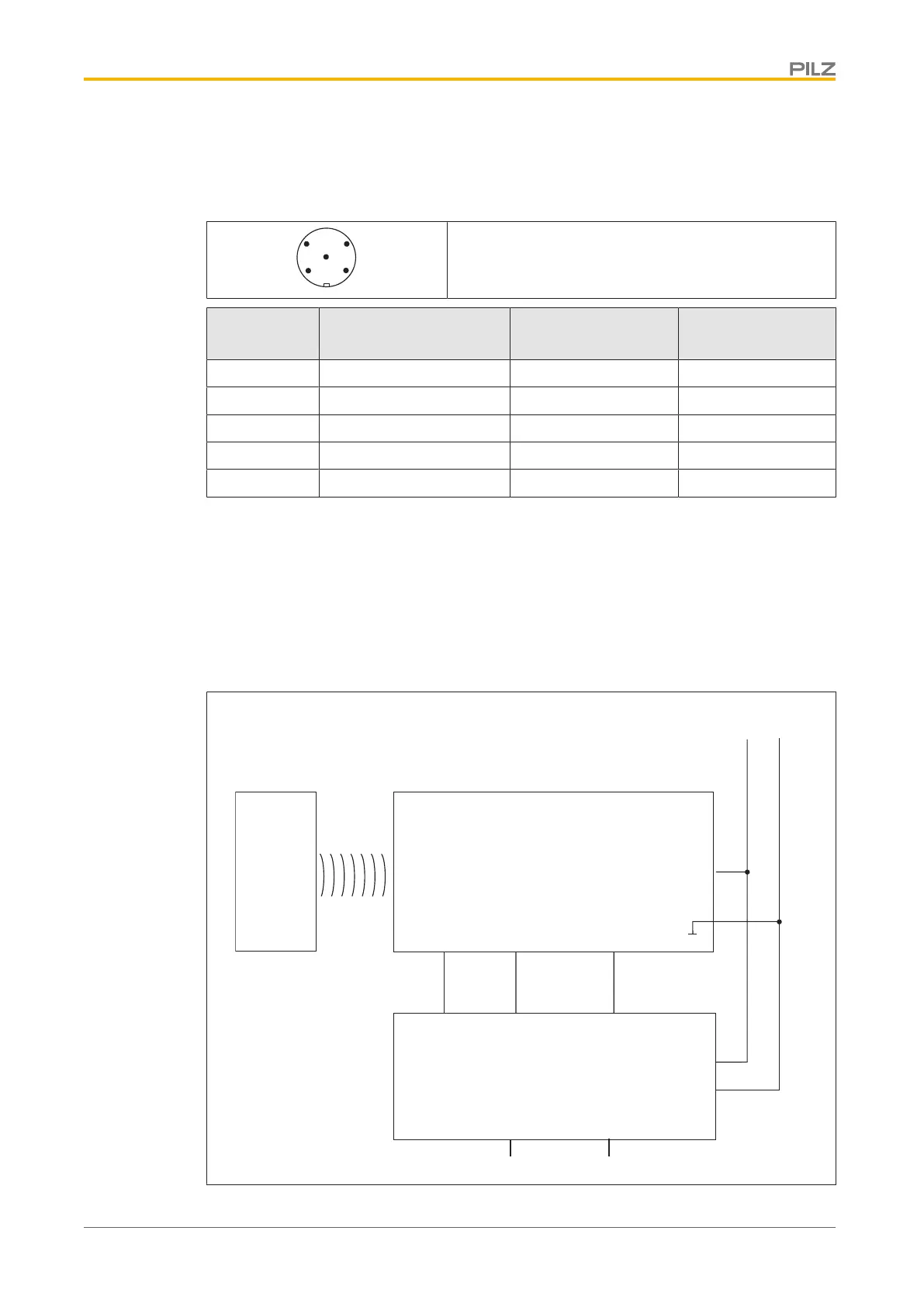

Pin assignment
1
2
3
5
4
5-pin M12 male connector
PIN Function Terminal designation
Cable colour (Pilz
cable)
1 +24 V UB A1 Brown
2 Output, channel1 12 White
3 0 V UB A2 Blue
4 Output, channel2 22 Black
5 "Lock_Unlock" S31 Grey
The wire colour also applies for the cable available from Pilz as an accessory.
Connection to evaluation devices
Make sure that the selected evaluation device has the following properties:
} 2-channel with feasibility monitoring
} OSSD signals are evaluated
Connection diagram, single connection
24 V 0 V
A1
A2
S31 12 22
O1 (ST) I1 (FS) I2 (FS)
A1
A2
FS: Failsafe
ST: Standard
Actuator
Safety switch
Evaluation device
