Operating Manual PSEN sl-0.5n 1.1
22173-EN-05
9
Unit features
} Transponder technology for presence detection
} Device types Pilz coding type:
– PSEN sl-0.5n 1.1: coded
} different actuators available (see Order reference [ 31])
– Standard actuator PSEN sl-0.5
– free-moving actuator PSEN sl-0.5fm for special applications with higher tolerance
compensation
} Dual-channel operation
} 2 safety outputs
} Magnetic guard locking for process protection
} 1 input to switch the locking magnet on/off
} LEDs for
– Supply voltage/fault
– Gate closed
– State of the magnetic guard locking device
} M12, 5-pin male connector

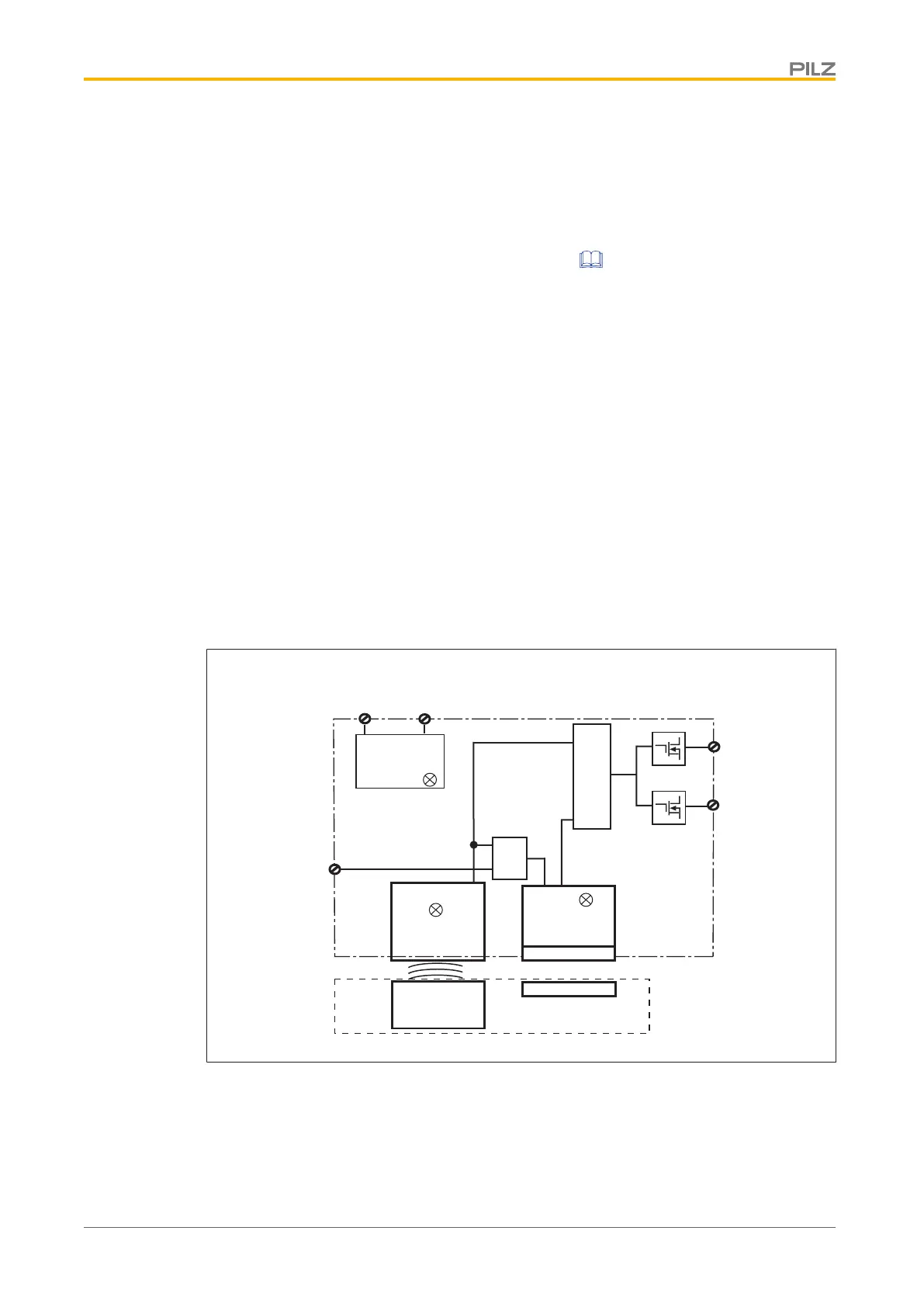

Function description
U
B
A1 A2
S31
12
22
Power supply
Power/Fault
&
&
Safety Gate
Lock
Receiver
Magnet
Actuator
There is a high signal at safety outputs 12 and 22 if the following occur simultaneously:
} The actuator is within the response range (safety gate closed) and
} There is a high signal at the input S31 (control command for magnetic guard locking)
and
} The holding force of the locking magnet has been tested successfully.
