PSEN sl-0.5n 1.1
Operating Manual PSEN sl-0.5n 1.1
22173-EN-05
14

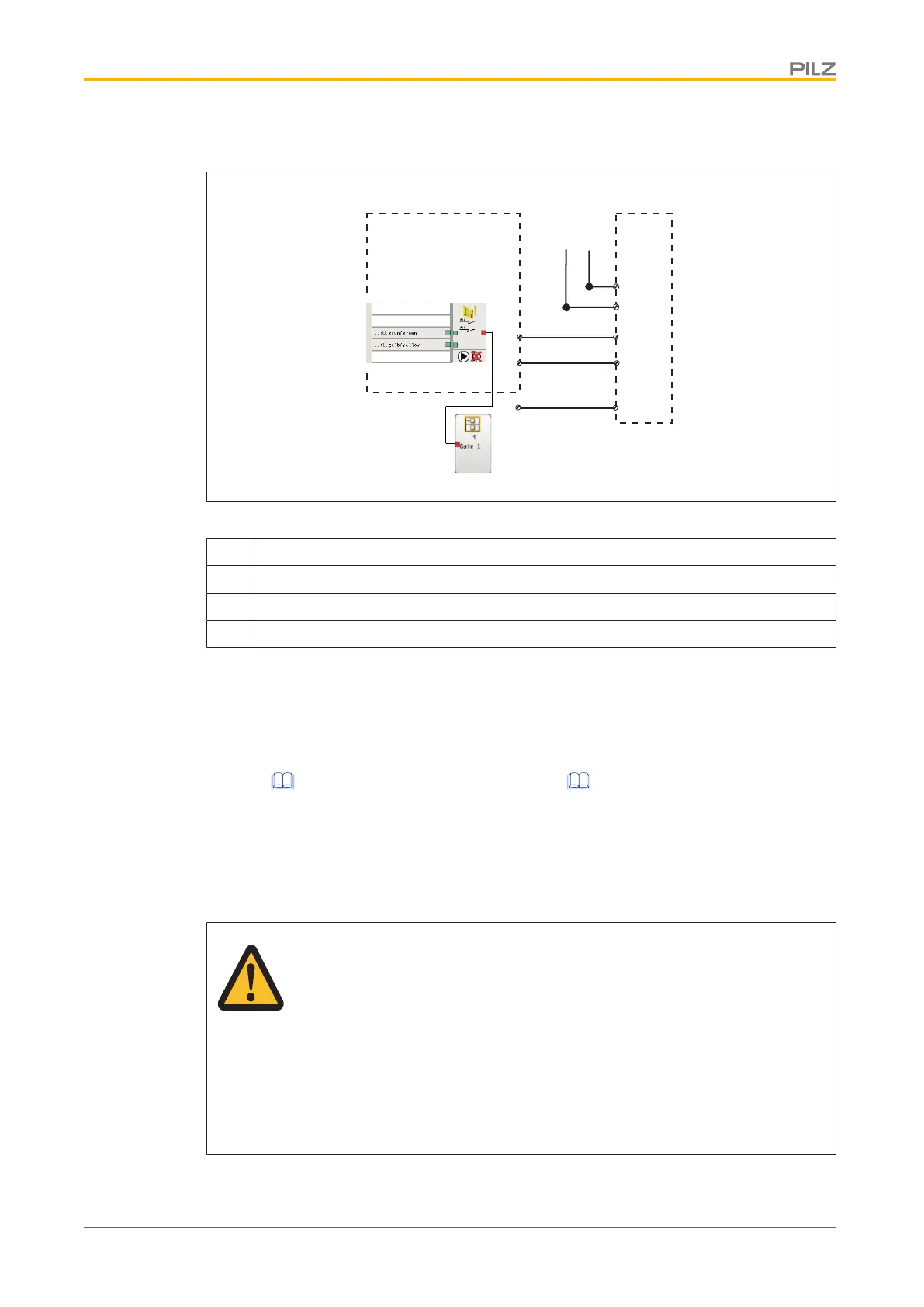

Connection example PNOZmulti
2
4
5
PNOZmulti PSENslock
green
yellow
red
I0
I1
12
22
S31
A1
A2
3
1
0 V 24 V
O1
Legend:
I0 Input OSSD
I1 Input OSSD
I2 Signal input
O1 Lock/Unlock
Teaching in the actuator
PSEN sl-0.5n 1.1
Any corresponding Pilz actuator (see Technical details: System with normal
actuator [ 23], System with free-moving actuator [ 27]) is detected as soon as it is
brought into the response range.
Installation
} The safety gate system can be installed on left or right-hinged swing gates or on sliding
gates.
WARNING!
Potential loss of safety function due to gross manipulation
Depending on the application, serious injury or death may result.
Use appropriate installation measures to prevent
– The wiring being modified.
– A short circuit being generated on the connector.
– The possibility of using a second actuator to open the safety gate.
