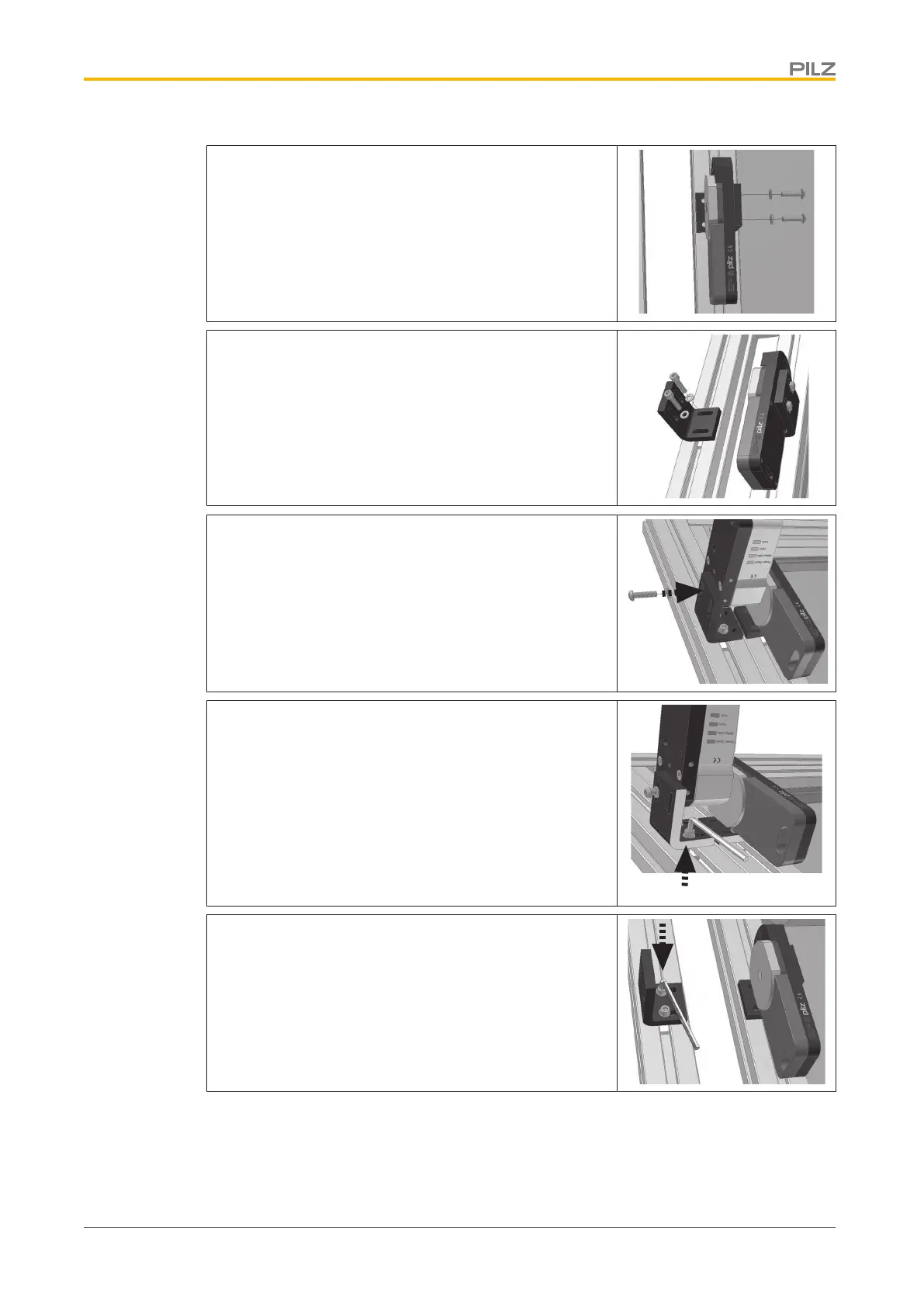

Install the actuator at the height required.
Align the safety switch mounting bracket flush with the
frame and fasten with screws.
(Important: do not tighten the screws)
Fix safety switch upright with a screw (a), close gate.
(a)
Align mounting brackets, press firmly together and tighten
screw (b).
(b)
Remove the safety switch and tighten screw (c).
(c)
