PSEN sl-0.5p 1.1
Operating Manual PSEN sl-0.5p 1.1
21904-EN-10
12
Recommended cable cross sections
Prerequisite:
} Supply voltage: 24V
} Cable type: LiYY 8x0.25 mm² (79Ohm/km) from Pilz
Max. load per safety output 100mA 500mA
Cable length 65m 28m
If cable lengths greater than those stated in the table are required, please contact Pilz.

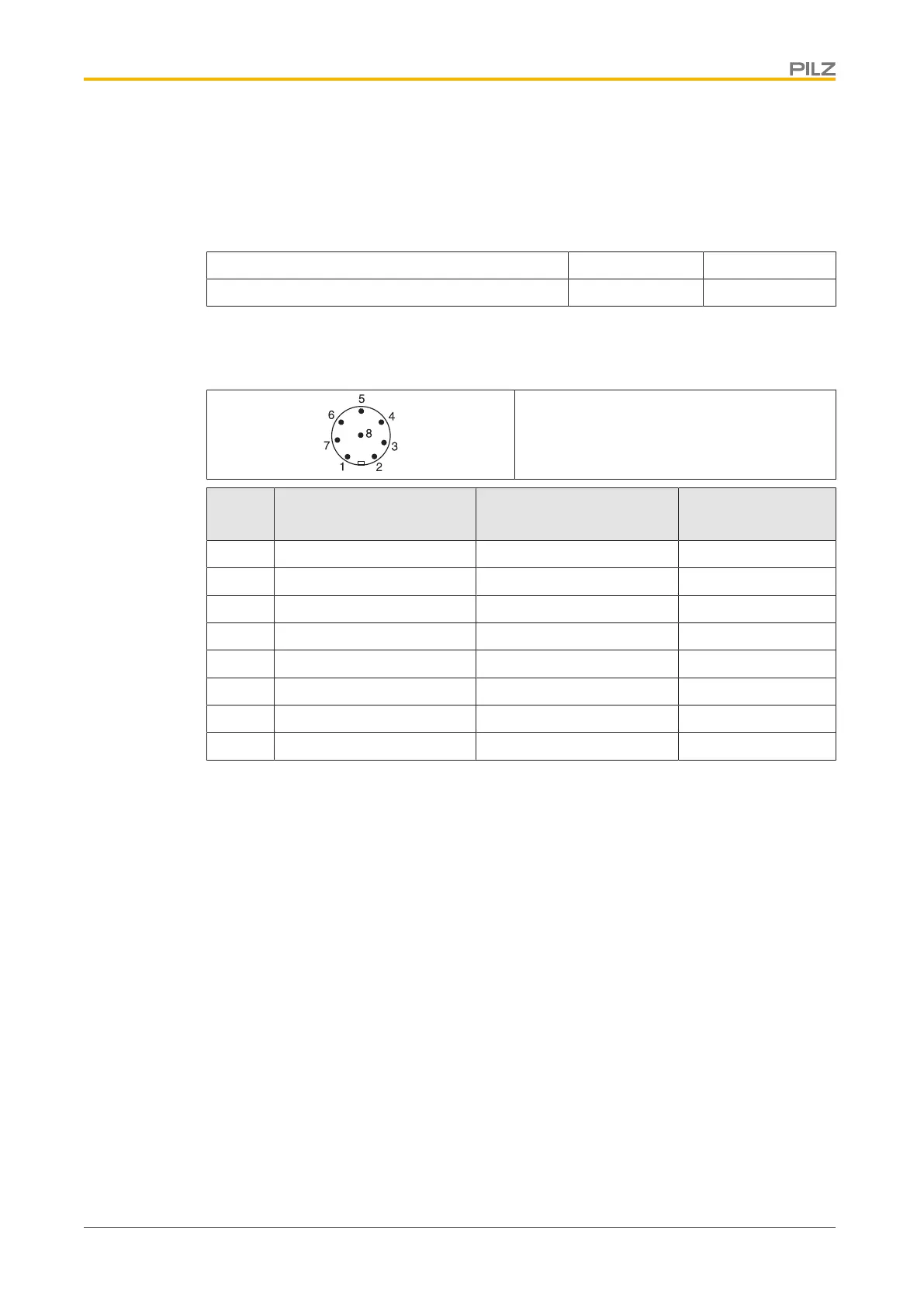

Pin assignment
8-pin M12 connector
PIN Function Terminal designation
Cable colour (Pilz
cable)
1 Input, channel 2 S21 White
2 +24 V UB A1 Brown
3 Safety output channel 1 12 Green
4 Safety output channel 2 22 Yellow
5 Signal output Y32 Grey
6 Input, channel 1 S11 Pink
7 0 V UB A2 Blue
8 "Lock_Unlock" S31 Red
The wire colour also applies for the cable available from Pilz as an accessory.
