Pilz PSS Series - Notes on Wiring

Interfaces
6-2 Installation Manual: PSS 3056 Series
N. C.
N. C.
N. C.
CAN_H
8
7
6
9
4
3
2
5
1
N. C.
CAN_GND
CAN_L
N. C.
CAN_SHLD

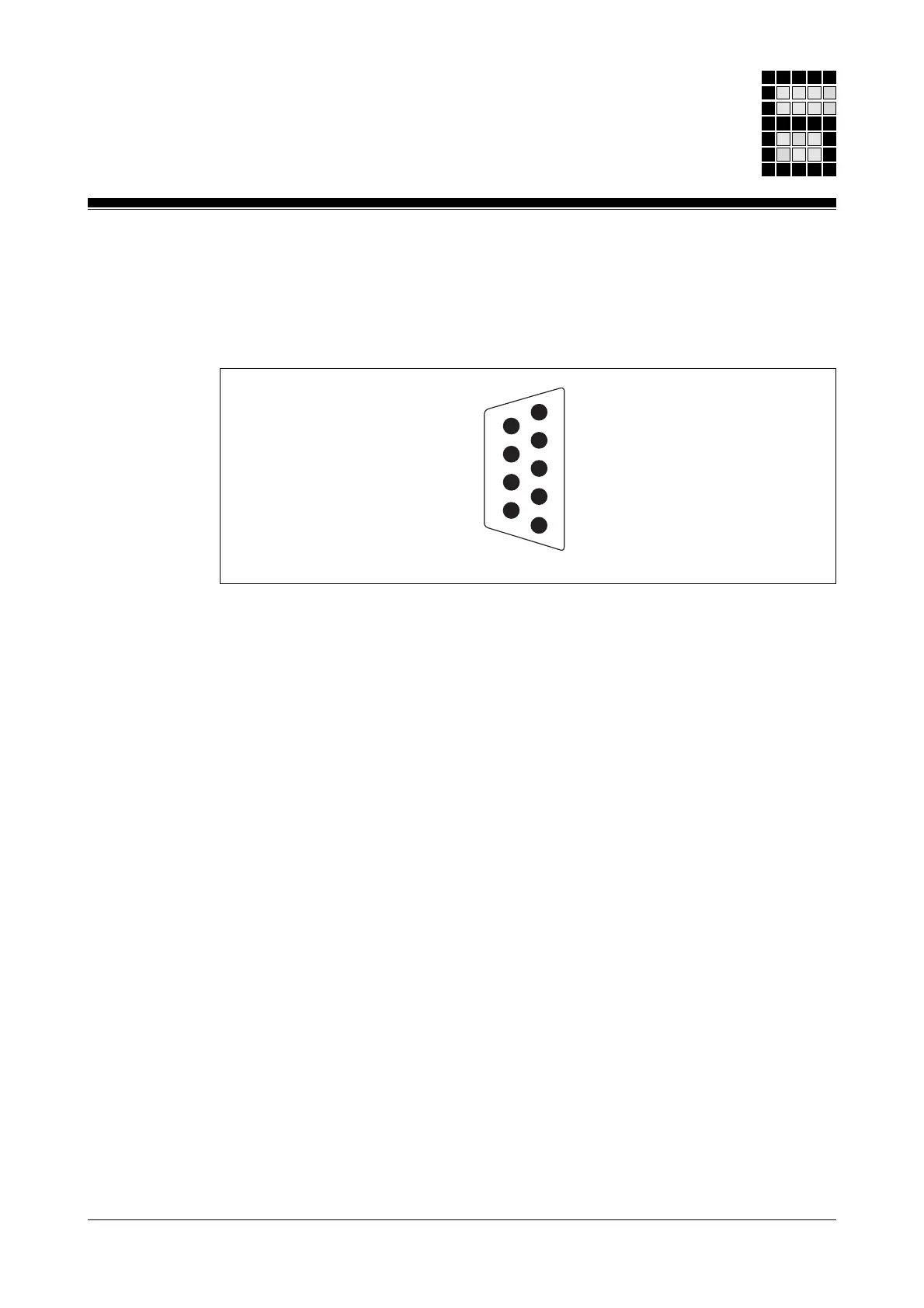

Fig. 6-3: Configuration of the SafetyBUS p interface
green
white
brown
N.C. = no connection
PSS SB 3056: SafetyBUS p interface
Connection to SafetyBUS p is via a male 9-pin D-Sub connector. Detailed
information on SafetyBUS p can be found in the SafetyBUS p manual.
