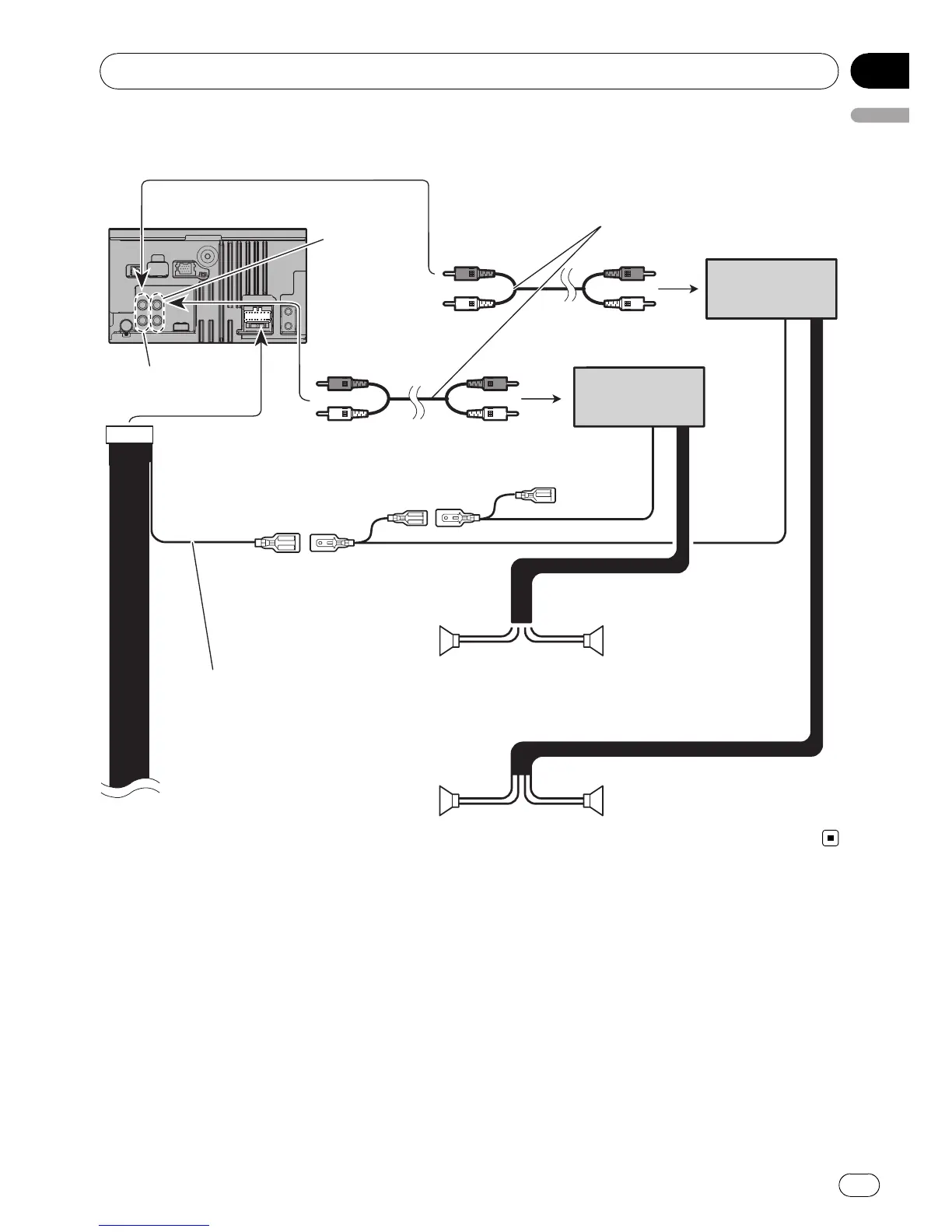

When connecting to separately sold power amp
Power amp
(sold separately)
Power amp
(sold separately)








Front speaker Front speaker
Left Right
System remote control
Rear speaker or
Subwoofer
Rear speaker or
Subwoofer
Front output
RCA cables
(sold separately)
The navigation unit
Blue/White
Connect to system control terminal of the power
amp or auto-antenna relay control terminal
(max. 300 mA 12 V DC).
Rear or Subwoofer
output
Connecting the System
