Installation using the screw holes
on the side of the navigation unit
% Fastening the navigation unit to the
factory radio-mounting bracket.
Position the navigation unit so that the brack-
ets screw holes and its screw holes are
aligned (are fitted), and tighten the screws at 3
or 4 locations on each side.
Use either the binding screws (5 mm × 8 mm)
or flush surface screws (5 mm × 8 mm), de-
pending on the shape of the bracket’s screw
holes.

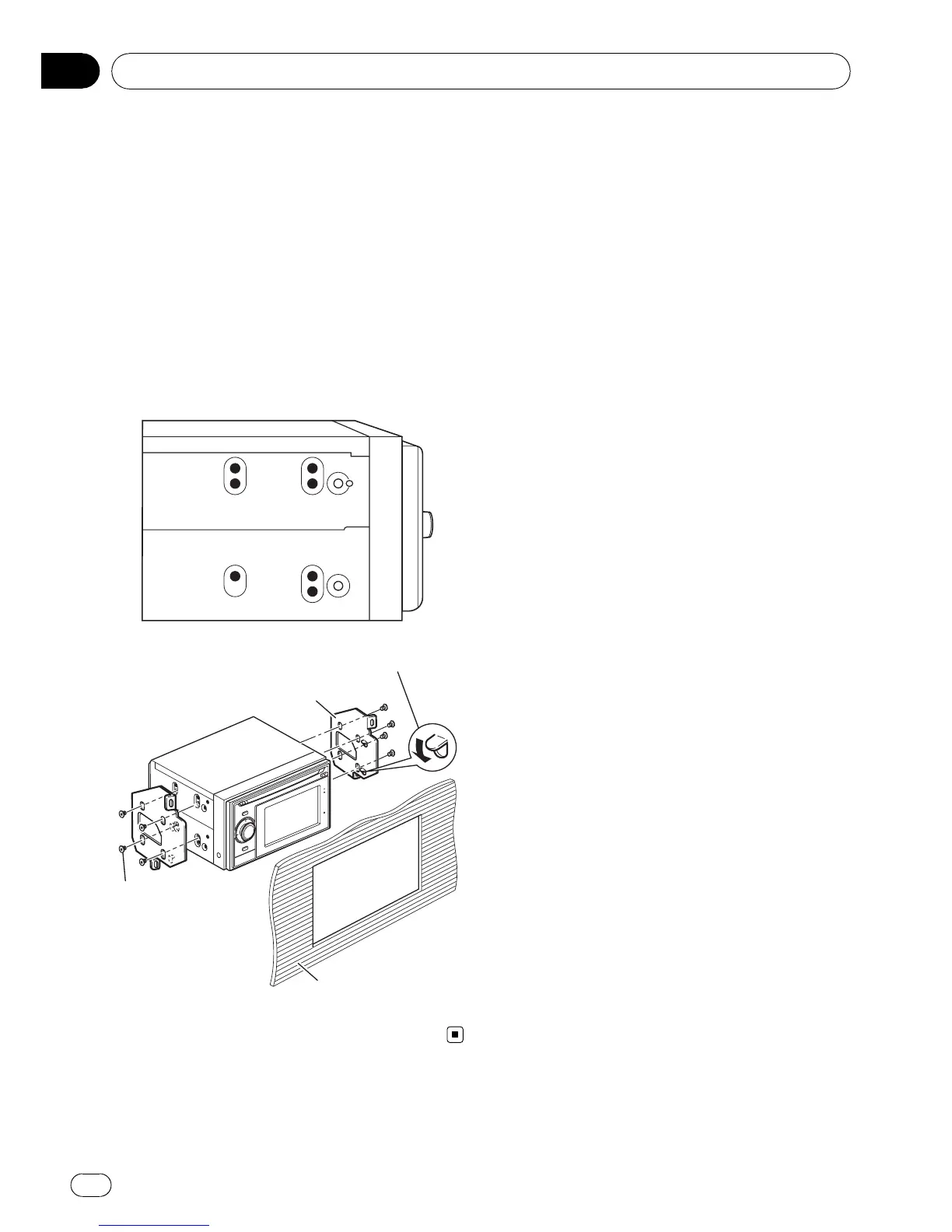

If the pawl gets in the
way, bend it down
Dashboard or console
Binding screw or
flush surface screw
Be sure to use the
screws supplied
with this navigation
system.
Factory radio mounting bracket
Installation
