Pioneer AVIC U310BT - Navigation System With CD player Installation Manual

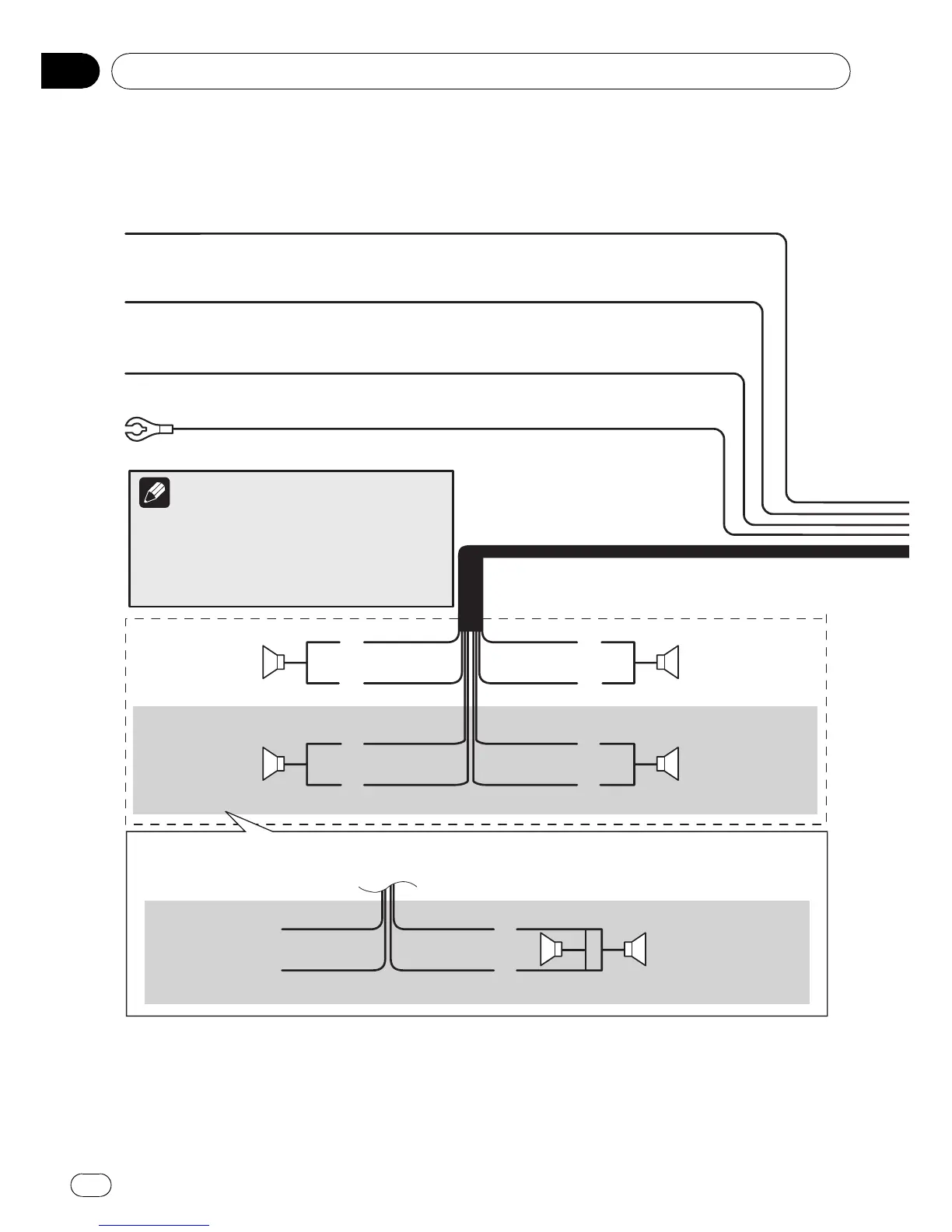

Connecting the power cord (1)
White
White/Black
Gray
Gray/Black
Green
Green/Black
Violet
Violet/Black
Front speakerFront speaker
Left Right










Violet
Violet/Black
Green
Green/Black
Not used.
Subwoofer (4 Ω )
 2
When using a subwoofer of 70 W (2
Ω ), be sure to connect with violet and violet/black leads of this
navigation system. Do not connect anything with green and green/black leads.
Yellow
To terminal always supplied with power
regardless of ignition switch position.
Red
To electric terminal controlled by ignition
switch (12 V DC) ON/OFF.
Orange/White
To lighting switch terminal.
Black (ground)
To vehicle (metal) body.
With a 2 speaker system, do not connect anything to
the speaker leads that are not connected to speakers.
When a subwoofer is connected to this navigation
system instead of a rear speaker, change the rear
output setting in the Initial Setting. (Refer to
“ Operation Manual ” .) The subwoofer output of this
navigation system is monaural.
Note
Rear speaker or
Subwoofer (4
Ω )
Rear speaker or
Subwoofer (4
Ω )
Connecting the System
En
10
Section
03
