Before installing this product
! This product is for vehicles with a 12-volt
battery and negative grounding. Check the
battery voltage of your vehicle before instal-
lation.

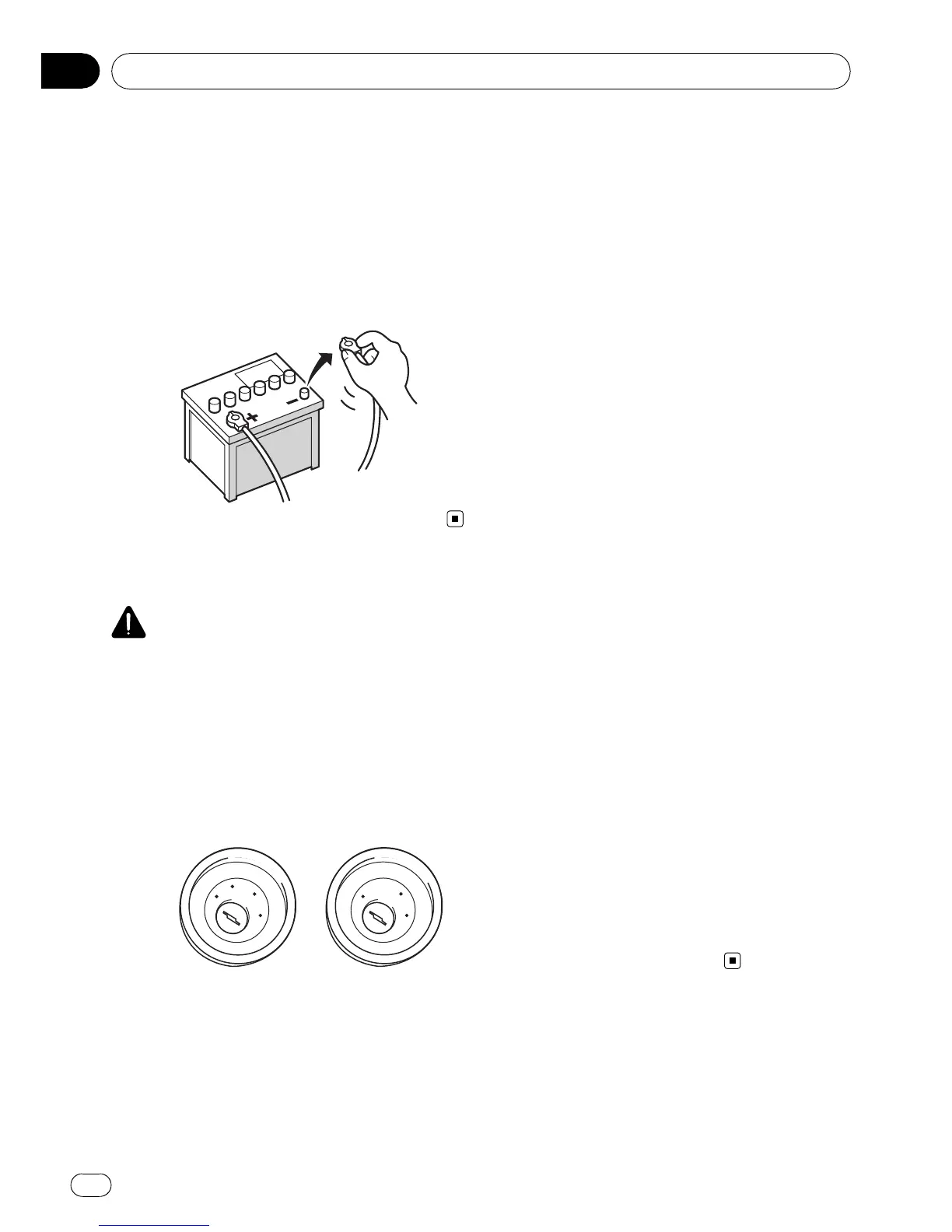

! To avoid shorts in the electrical system, be
sure to disconnect the (–) battery cable be-
fore beginning installation.
To prevent damage
WARNING
! When replacing the fuse, be sure to only
use a fuse of the rating prescribed on this
product.
! When disconnecting a connector, pull the
connector itself. Do not pull the lead, as
you may pull it out of the connector.
! This product cannot be installed in a vehi-
cle without ACC (accessory) position on
the ignition switch.
A
C
C
O
N
S
T
A
R
T
O
F
F
O
N
S
T
A
R
T
O
F
F
ACC position No ACC position
! To avoid short-circuiting, cover the discon-
nected lead with insulating tape. It is espe-
cially important to insulate all unused
speaker leads, which if left uncovered may
cause a short circuit.
! Attach the connectors of the same color to
the corresponding colored port, i.e., blue
connector to the blue port, black to black,
etc.
! Refer to the owner’s manual for details on
connecting the power amp and other units,
then make connections accordingly.
! Since a unique BPTL circuit is employed,
do not directly ground the * side of the
speaker lead or connect the * sides of the
speaker leads together. Be sure to connect
the * side of the speaker lead to the *
side of the speaker lead on this navigation
system.
! Never connect speakers with an output rat-
ing of less than 50 W channel or impe-
dance outside of the 4 ohms to 8 ohms
specifications to your navigation system.
Connecting speakers with output and/or
impedance values other than those noted
here may result in the speakers catching
fire, emitting smoke, or becoming da-
maged.
Notice for the blue/white lead
! When this unit is turned on, a control sig-
nal is output through the blue/white cable.
Connect it to an external power amp’s sys-
tem remote control or the vehicle’s auto-an-
tenna relay control terminal (max. 300 mA,
12 V DC). If the vehicle is equipped with a
glass antenna, connect the cable to the an-
tenna booster power supply terminal.
! Never connect the blue/white cable to an
external power amp’s power terminal. Also,
never connect it to the power terminal of
the auto antenna. Otherwise, battery drain
or malfunction may result.
Connecting the System
En
6
Section
03
