Pioneer DJM-900NXS2 Service Manual

68
DJM-900NXS2
1
2 3 4
A
B
C
D
E
F
1
2 3 4

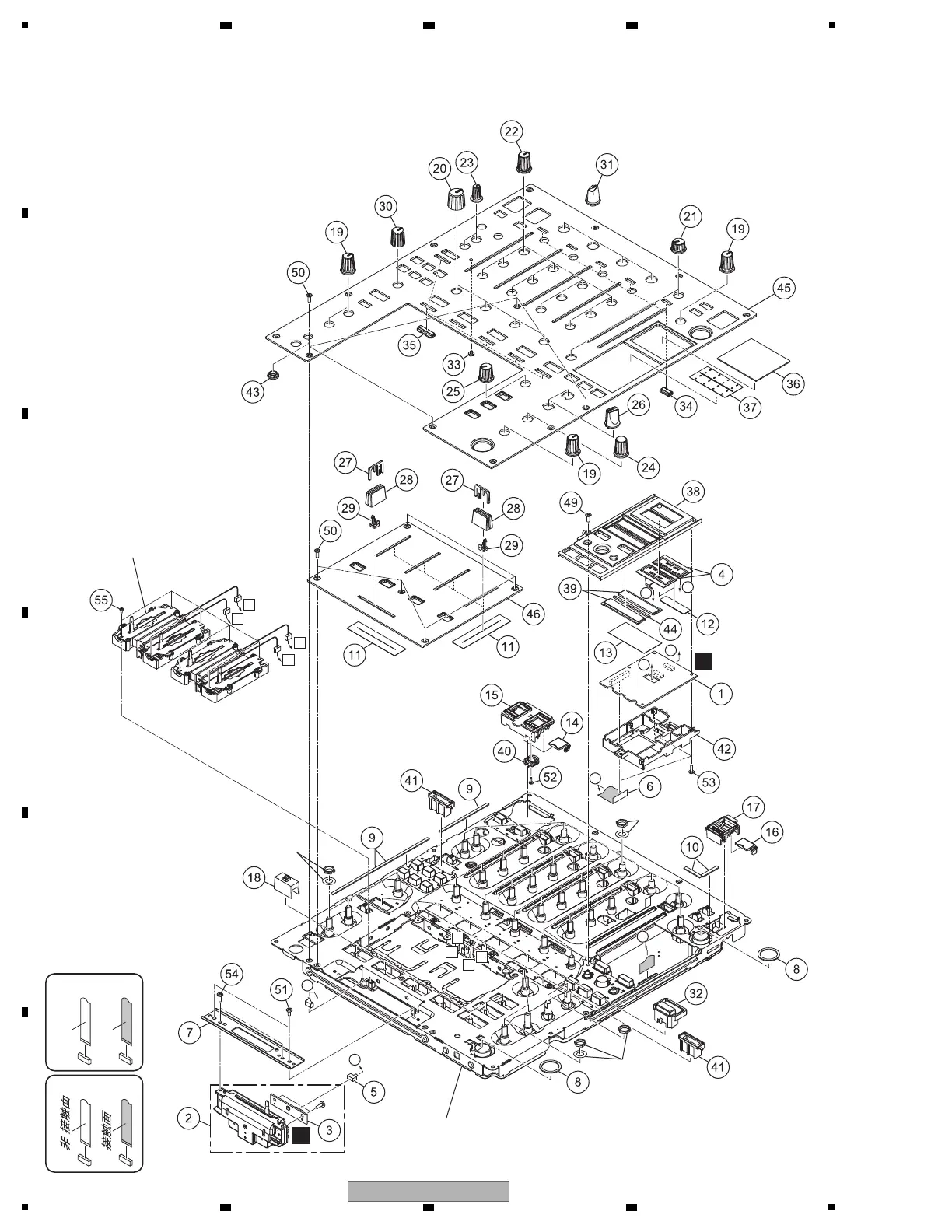

9.4 CONTROL PANEL SECTION (1/2)
C
A
A
B
B
C
D
D
CONTACT SIDE
NON-CONTACT
SIDE
W
U
W
R
B
Y
W
R
B
Y
Refer to
"9.5 CONTROL PANEL SECTION (2/2)" .
Refer to
"9.5 CONTROL PANEL SECTION (2/2)" .
Nut, Washer:
Accessory of VR
Nut, Washer:
Accessory of VR
Nut, Washer:
Accessory of VR
∗

Pioneer DJM-900NXS2 Specifications

General

MIDI out	Yes
Phono inputs (RCA)	4
USB 2.0 ports quantity	3
Digital audio coaxial out	1
Sample rate	96 kHz
Frequency range	20 - 40000 Hz
Channels quantity	4 channels
Line Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.005 %
Power consumption (typical)	42 W
Type	Magvel Fader

Weight and Dimensions

Depth	414.2 mm
Width	333 mm
Height	107.9 mm
Weight	8000 g
