Pioneer PDP-433PU User Manual

PDP-433PU
30
1234
1234
C
D
F
A
B
E

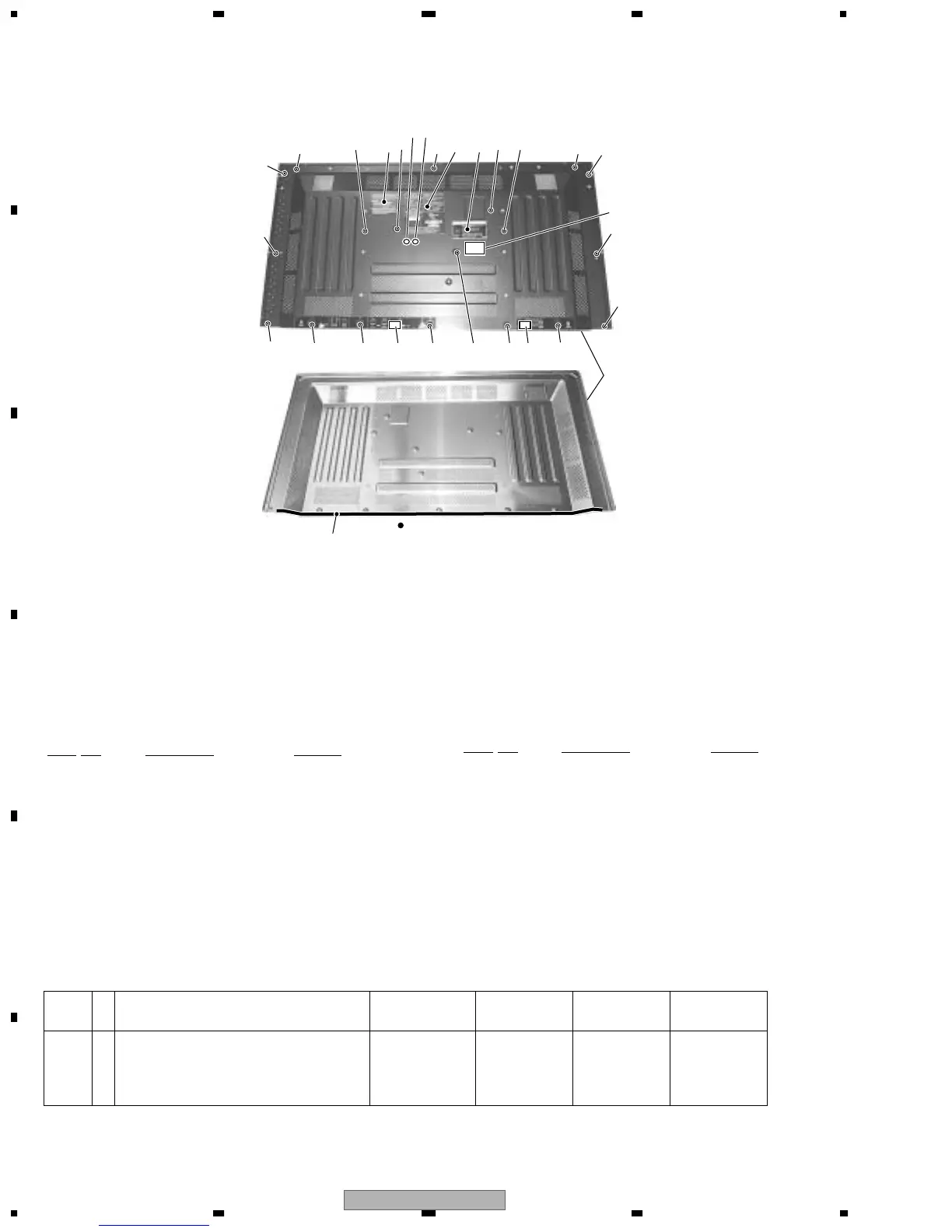

2.12 REAR SECTION
REAR SECTION parts List
(2) CONTRAST TABLE
PDP-433PU/KUC, PDP-433PE/WYVI6, PDP-433PE/WYVI6XK and PDP-433PG/TLDPKBR are constructed the
same except for the following:
1
2
5
67
4
3
3
33
4
4
4
4
3
3 38 93
Bottom View
3
3
4
4
4
4
12
PDP-433PG
Only
10
11
Mark No. Description Part No.
1 Rear Case 43P ANE1607
2 Gasket L43 ANK1698
3 Screw AMZ30P060FZK
4 Screw TBZ40P080FZK
5 Cleaning Label Gray AAX2926
NSP 6 Name Label (HD) Gray See Contrast table (2)
7 Bolt Caution Label Gray AAX2928
8Terminal Display Label P Gray See Contrast table (2)
9Terminal Display Label L Gray See Contrast table (2)
10 Label (Blue 8) AAX2786
11 Label (Green 8) AAX2955
12 MIC Label See Contrast table (2)
Mark No. Description Part No.
Mark No. Symbol and Description PDP-433PU/KUC
PDP-433PE/
WYVI6
PDP-433PE/
WYVI6XK
PDP-433PG/
TLDPKBR
NSP 6 Name Label (HD) Gray AAL2426 AAL2425 AAL2429 AAL2427
8Terminal Display Label P Gray AAX2929 AAX2929 AAX2939 AAX2929
9Terminal Display Label L Gray AAX2930 AAX2935 AAX2940 AAX2930
12 MIC Label Not used Not used Not used AAX2949
