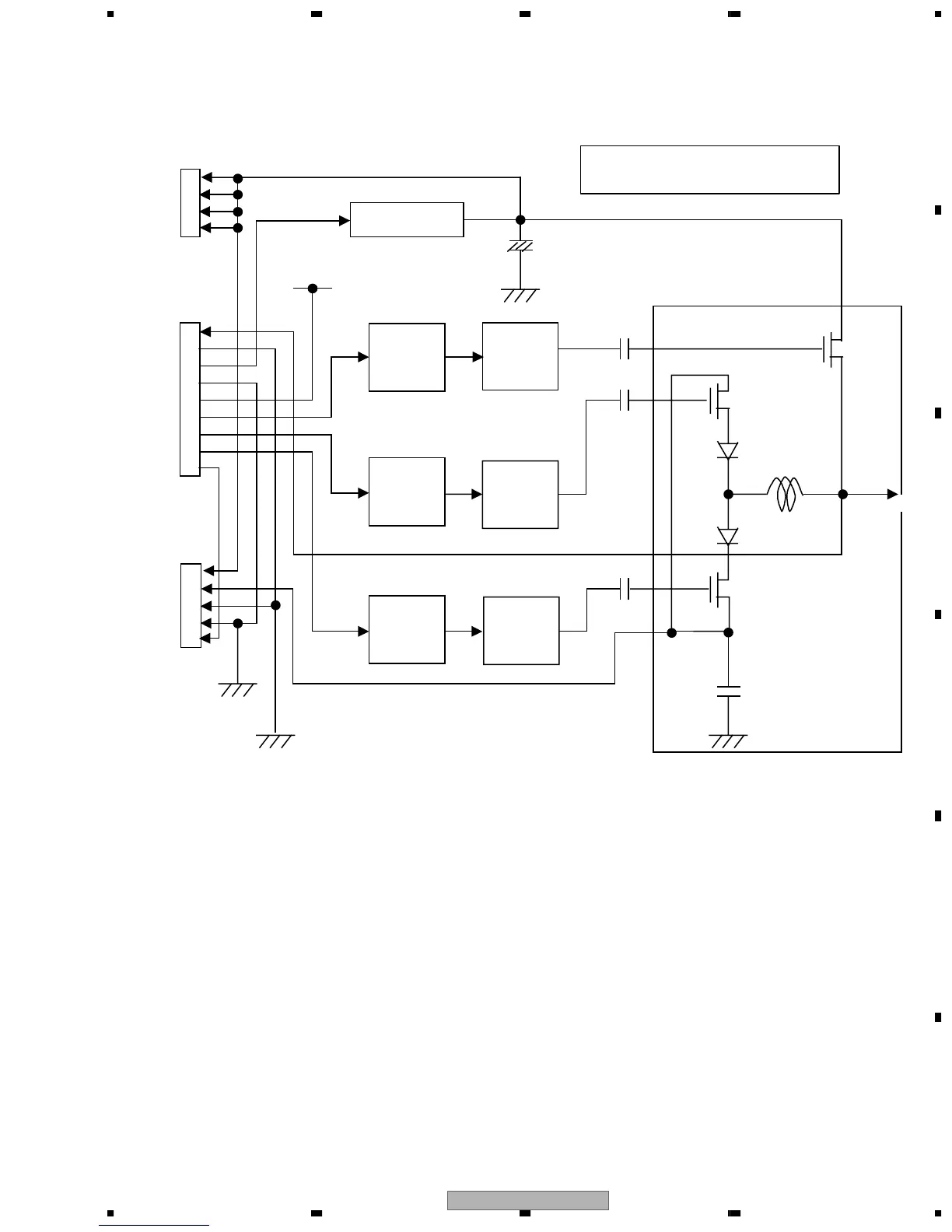

3.1.7 ADR RESONANCE ASSY
+60V
+60V
+60V
+60V
CN6702 IC6704 C6703 - C6708
12V
Address Resonance Output Block
ADROUT
ADRGND
ADR B
VADR
C6720 Q6706
DGND
Q6707
+12V
IC6701 Q6701, Q6704 ADR U
ADR-B
C6721 Q6708
ADR-U
Q6709
ADR-D
SW
CN6701
ADR OUT
L6704
IC6702 Q6702, Q6705
VADR
V MID
ADR D
ADRGND
C6722 Q6710
DGND
Q6711
SW
CN6703
DGND IC6703 Q6703, Q6712 V MID
C6716
ADRGND
ICP-S1, 0
ADR-B
Pre-Drive
ADR-U
Pre-Drive
ADR-U
Drive
ADR-D
Pre-Drive
ADR-D
Drive
ADR-B
Drive
CAUTION :
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE NO. ICP-S1.0 MFD
BY ROHM CO., LTD. FOR IC6704.
