Pioneer PDP-433PU User Manual

PDP-433PU
46
1234
1234
C
D
F
A
B
E

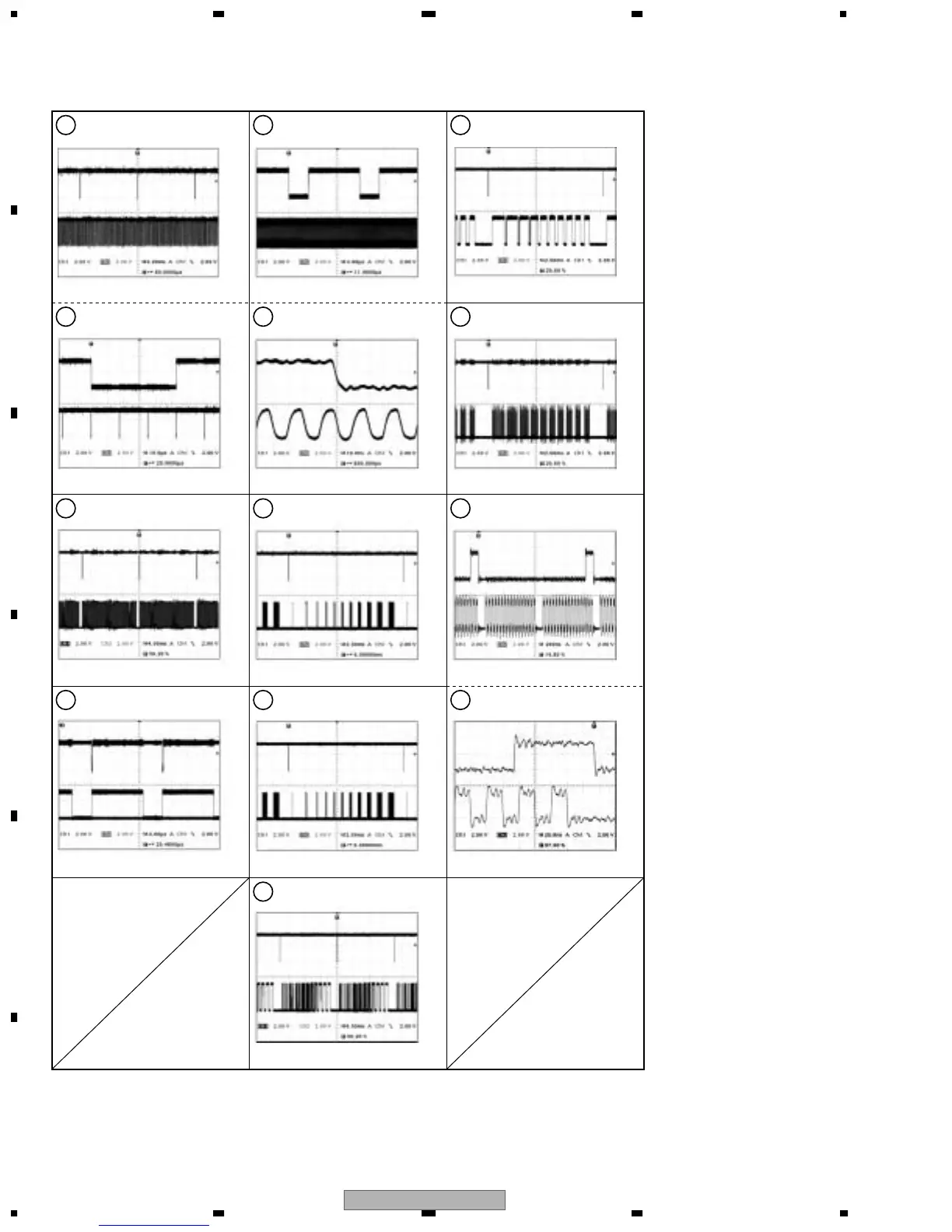

3.2 WAVEFORMS
DIGITAL VIDEO ASSY
1
K1327 (VDI)
K1328 (HDI)
V: 2V/div. H: 4msec/div.
4
K1326 (DEI)
K1333 (VCLKL)
V: 2V/div. H: 4µsec/div.
4
K1326 (DEI)
K1333 (VCLKL)
V: 2V/div. H: 10nsec/div.
5
K1308 (VDRB)
R1713 - pin 7 (XSUS_B)
V: 2V/div. H: 2msec/div.
6
K1308 (VDRB)
R1703 - pin 8 (YSUS_B)
V: 2V/div. H: 2msec/div.
7
K1308 (VDRB)
R1343 - pin 8 (RDAT_DL0)
V: 2V/div. H: 4msec/div.
8
K1308 (VDRB)
IC1501 - pin 15 (LBLK)
V: 2V/div. H: 2msec/div.
9
K1308 (VDRB)
IC1501 - pin 13 (LE)
V: 2V/div. H: 2msec/div.
10
IC1501 - pin 13 (LE)
IC1501 - pin 11 (ADRCLK)
V: 2V/div. H: 200nsec/div.
10
IC1501 - pin 13 (LE)
IC1501 - pin 11 (ADRCLK)
V: 2V/div. H: 20nsec/div.
1
K1327 (VDI)
K1328 (HDI)
V: 2V/div. H: 10µsec/div.
2
K1327 (VDI)
CN1004 pin 49 (R DIGITAL VIDEO)
V: 2V/div. H: 4msec/div.
3
K1328 (HDI)
K1326 (DEI)
V: 2V/div. H: 4µsec/div.
