Pioneer PDP-434PU

PDP-434PU
35
5 678
56
7
8
C
D
F
A
B
E

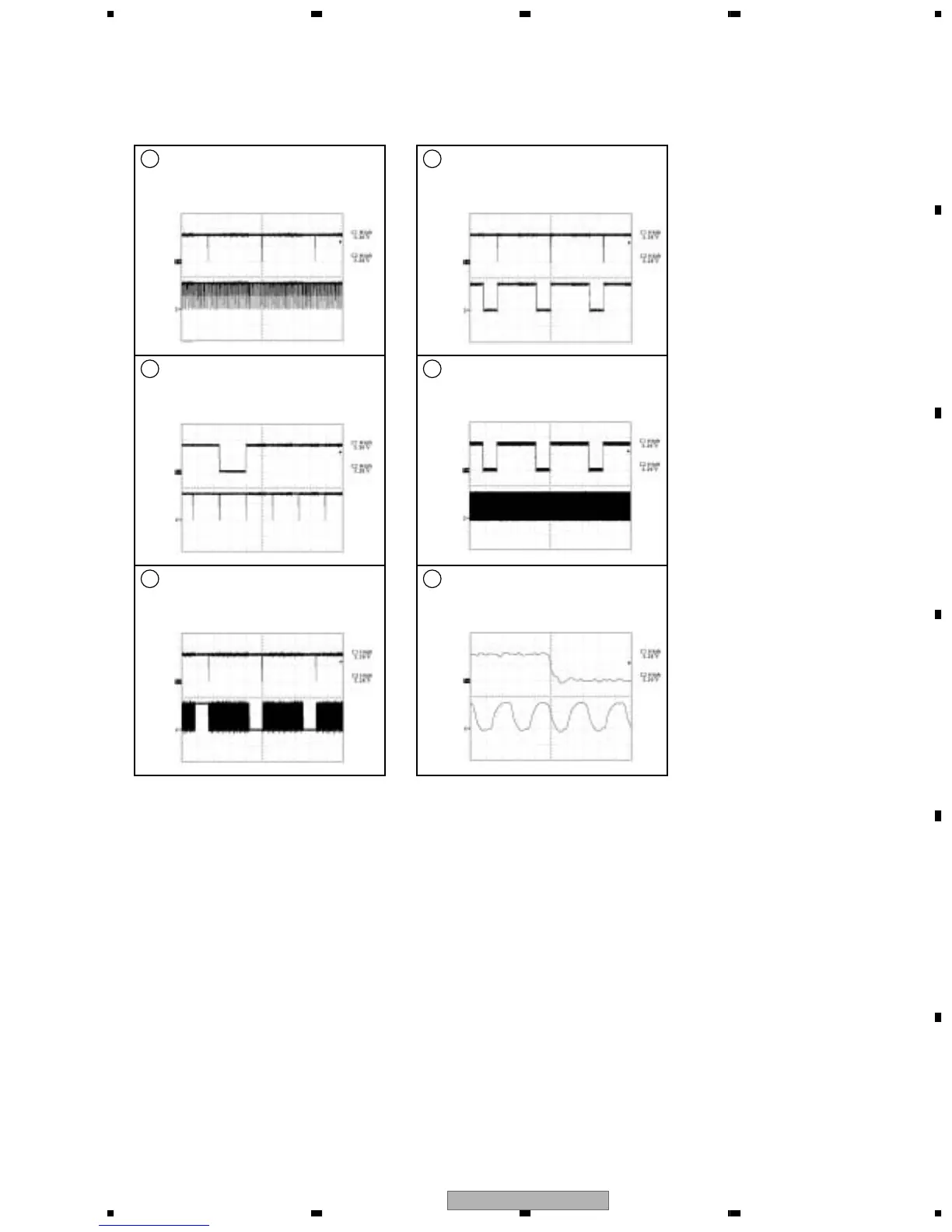

PANEL IF ASSY
1
CH1: K4005 (VDI)
CH2: K4006 (HDI)
V: 2V/div. H: 5msec/div.
CH1
CH2
1
CH1: K4005 (VDI)
CH2: K4006 (HDI)
V: 2V/div. H: 10µsec/div.
CH1
CH2
2
CH1: K4005 (VDI)
CH2: CN4004-pin 29 (RAO)
V: 2V/div. H: 5msec/div.
CH1
CH2
3
CH1: K4006 (HDI)
CH2: K4003 (DEI)
V: 2V/div. H: 5µsec/div.
CH1
CH2
4
CH1: K4003 (DEI)
CH2: K4002 (DCLK)
V: 2V/div. H: 5µsec/div.
CH1
CH2
4
CH1: K4003 (DEI)
CH2: K4002 (DCLK)
V: 2V/div. H: 10nsec/div.
CH1
CH2
