Safety Precautions
02
English
Installation Precautions
Observe the following precautions when installing with any items such as the optional bracket.
When using the optional brackets or equivalent items
Ask your dealer to perform the installation.
Be sure to use the supplied bolts.
For details, see the instruction manual that comes with the optional bracket (or equivalent items).
When using other items
Consult your dealer.

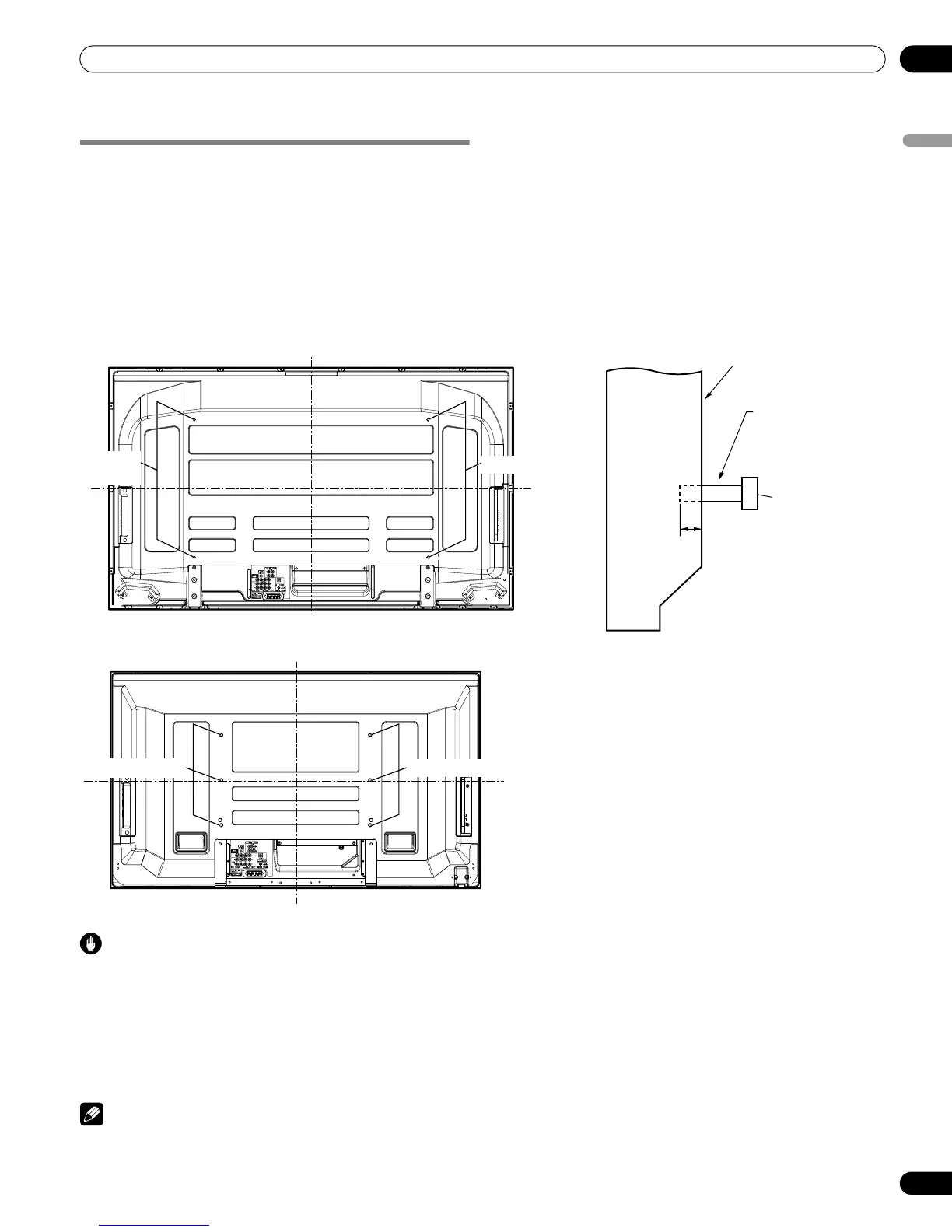

The following mounting holes can be used for the installation:
Caution
Be sure to use four or more mounting holes symmetrical to the vertical and horizontal median lines.
Use M8 screws, which go 12 mm to 18 mm (0.5 inches to 0.7 inches) in depth from the mounting surface of the plasma display. See
the side view above.
Be careful not to block the ventilation opening at the rear of the plasma display.
Be sure to install the plasma display on a flat surface because it contains glass.
The screw holes other than the above are to be used only for the specified products. Never use them for mounting non-specified
products.
Note
It is strongly recommended to use the optional Pioneer mounting products.
Pioneer shall not be liable for any personal injury or product damage that results from the use of mounting items other than the
optional Pioneer products.
Side view
Mounting surface
Plasma
display
Mounting
bracket (or
equivalent item)
M8 screw
12 mm to 18 mm
(0.5 inches to 0.7 inches)
4 5
Median
line
Median line
Rear view (PDP-6010FD)
4 5
Median line
Rear view (PDP-5010FD)
Median line
Mounting hole
Mounting
hole
Mounting hole Mounting hole
