27
En
Preparation
05
English

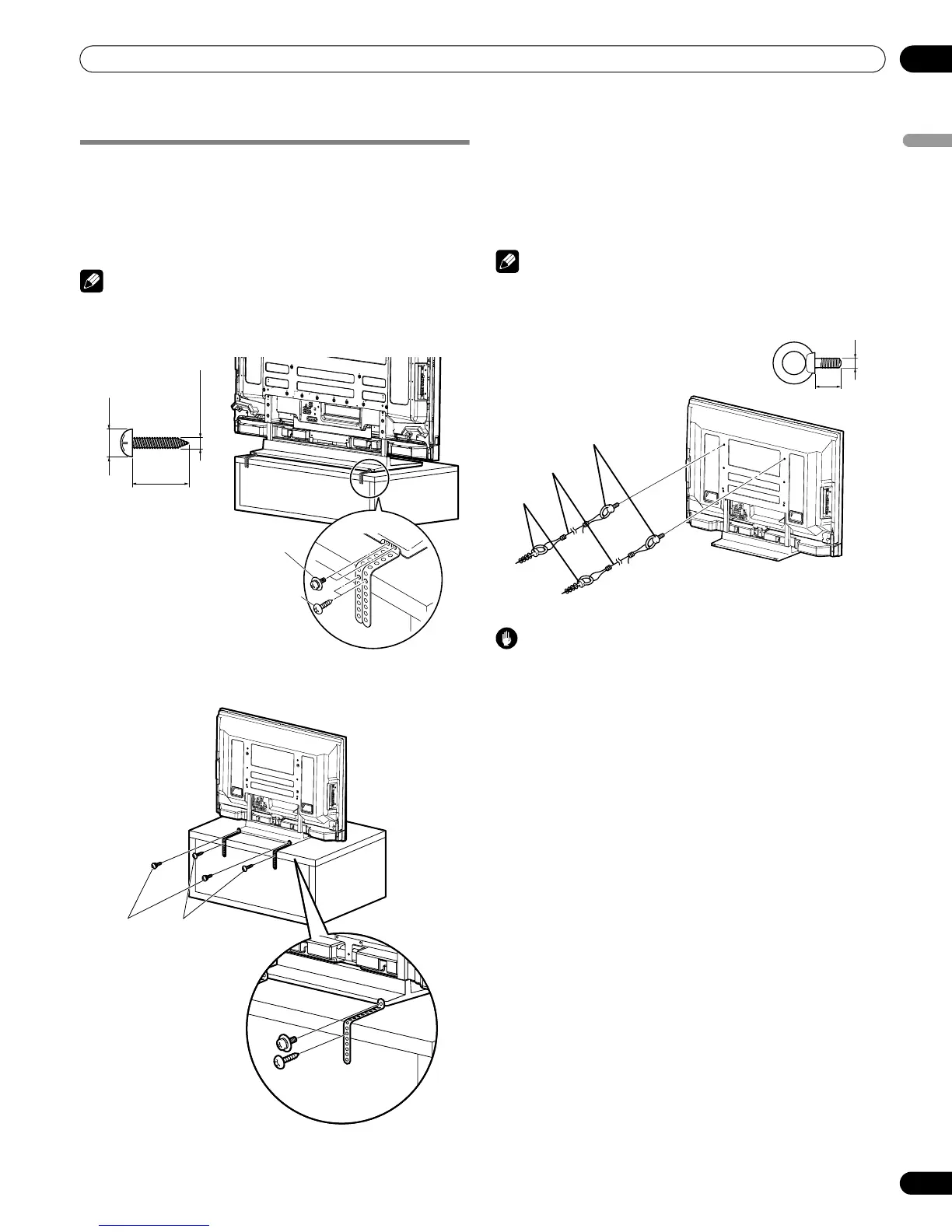

Preventing the plasma display from falling over
After installing the stand, be sure to take special care to ensure
that the plasma display will not fall over and is stabilized to both
the wall and rack.
Stabilizing on a table or rack
Stabilize the plasma display as shown in the diagram using the
supplied plastic bands and screws.
Note
•
To stabilize the plasma display on a table or rack, also use
commercially available wood screws that have a nominal diameter
of 4 mm (5/32 inch) and that are at least 20 mm (13/16 inch) long.
Drill a hole in the middle at the rear of the tabletop panel before using a
wood screw. Perform this work the same way on the left and right sides.
Drill a hole in the middle at the rear of the tabletop panel before using a
wood screw. Perform this work the same way on the left and right sides.
Using a wall for stabilization
1 Attach falling prevention bolts (hooks) to the plasma
display.
2 Use strong cords to stabilize it appropriately and
firmly to a wall, pillar, or other sturdy element.
Perform this work in the same way on the left and right sides.
Note
• Use hooks, cords and fittings that are available on the market.
Recommended hook: Nominal diameter 8 mm (3/8 inch),
length 12 mm to 18 mm (0.5 inches to 0.7 inches).
Caution
• A table or rack with adequate strength should always be used
to support the plasma display. Failure to do so could result in
personal injury and physical damage.
• When installing the plasma display, please take the necessary
safety measures to prevent it from falling or overturning in case
of emergencies, such as earthquakes, or of accidents.
• If you do not take these precautions, the plasma display could
fall down and cause injury.
• The screws, hooks, cords and other fittings that you use to
secure the plasma display to prevent it from overturning will
vary according to the composition and thickness of the surface
to which it will be attached.
• Select the appropriate screws, hooks, cords, and other fittings
after first inspecting the surface carefully to determine its
thickness and composition and after consulting a professional
installer if necessary.
20 mm
(13/16 inch)
min.
4 mm (5/32 inch)
8 mm to 15 mm
(3/8 inch to 5/8 inch)
Supplied screw
(M4 x 10 mm: black)
Wood screw
(commercially available,
4 mm x 20 mm (5/32 inch
x 13/16 inch) min.)
(PDP-6010FD)
4
5
Supplied screw
(M4 x 10 mm: black)
Wood screw
(commercially available,
4 mm x 20 mm (5/32 inch x
13/16 inch) min.)
Wood screw
Supplied screwSupplied screw
(PDP-5010FD)
4
5
M8
12 mm to 18 mm
(0.5 inches to 0.7 inches)
1. Hook
2. Cord
Fitting
To Next Page
