Pioneer PDP-5010FD

15
En

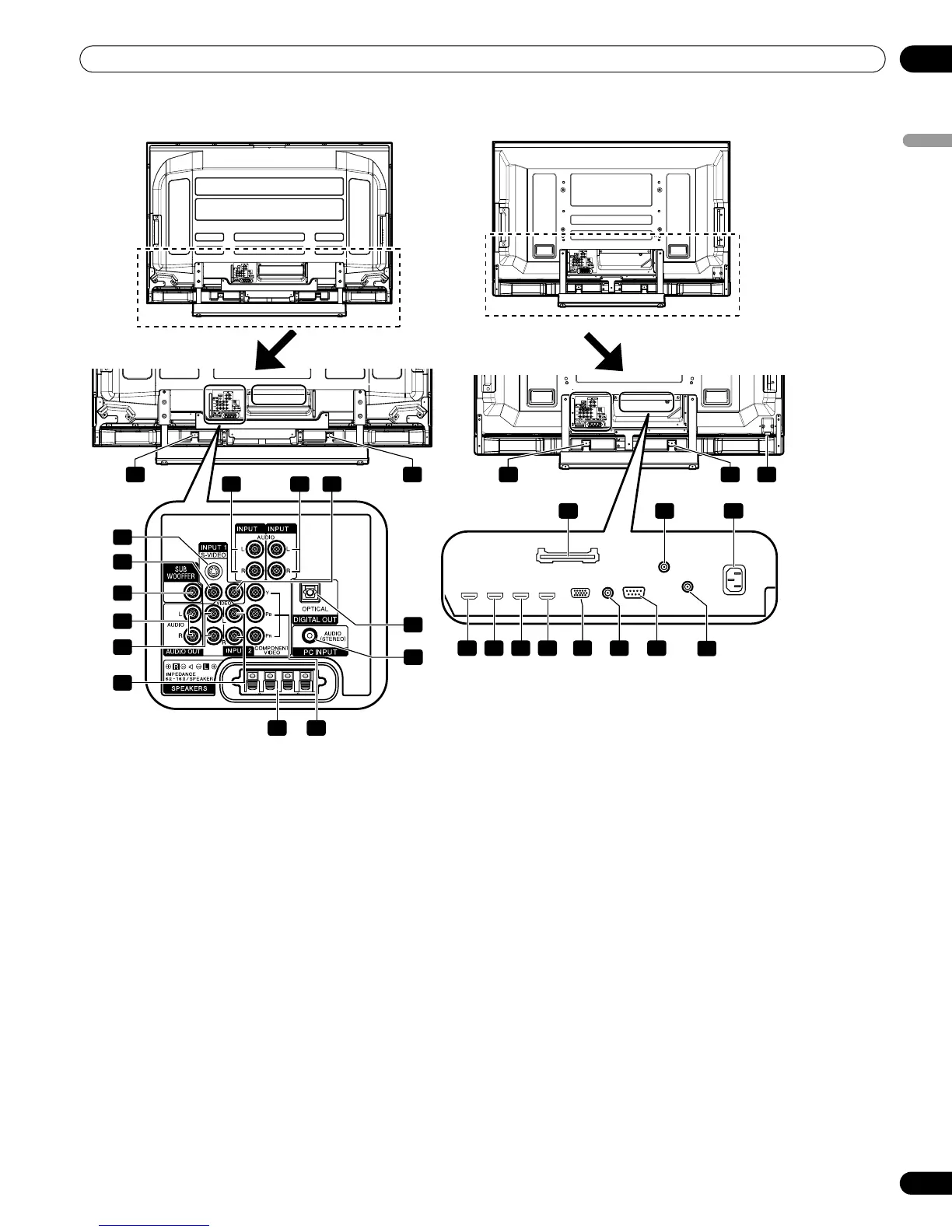

Part Names
04
English
Parts name
1 a button
2 CableCARD™ slot
3 ANT/CABLE A IN terminal
4 AC IN terminal
5 INPUT 4 terminal (HDMI)
6 INPUT 5 terminal (HDMI)
7 INPUT 6 terminal (HDMI)
8 INPUT 7 terminal (HDMI)
9 PC INPUT terminal (ANALOG RGB)
10 CONTROL OUT terminal
11 RS-232C terminal (used for factory setup)
12 ANT B IN terminal
13 INPUT 1 terminal (S-VIDEO)
14 INPUT 1 terminal (VIDEO)
15 SUB WOOFER terminal
16 AUDIO OUT terminals (AUDIO)
17 INPUT 1 terminals (AUDIO)
18 INPUT 2 terminals (AUDIO)
19 INPUT 4 terminals (AUDIO)
20 INPUT 5 terminals (AUDIO)
21 INPUT 2 terminal (VIDEO)
22 DIGITAL OUT terminal (OPTICAL)
23 PC INPUT terminal (AUDIO)
24 INPUT 2 terminals (COMPONENT VIDEO: Y, P B ,
P R )
25 SPEAKERS (R/L) terminals
26 SPEAKERS (R) terminal (Speaker side)
27 SPEAKERS (L) terminal (Speaker side)
45
45
45
45
45
6
PDP-5010FDPDP-6010FD
2 3
4
7 85
12
11
9
10
21
23
22
18
14
13
15
16
17
19
20
25 24
26
27
26
27
1
(Rear)
*For exact terminal positions, refer to
the terminal position sheet located
near the terminal compartment.
The terminals on the rear panel are common
to the PDP-6010FD and PDP-5010FD.
