PDP-502MX, PDP-502MXE
62

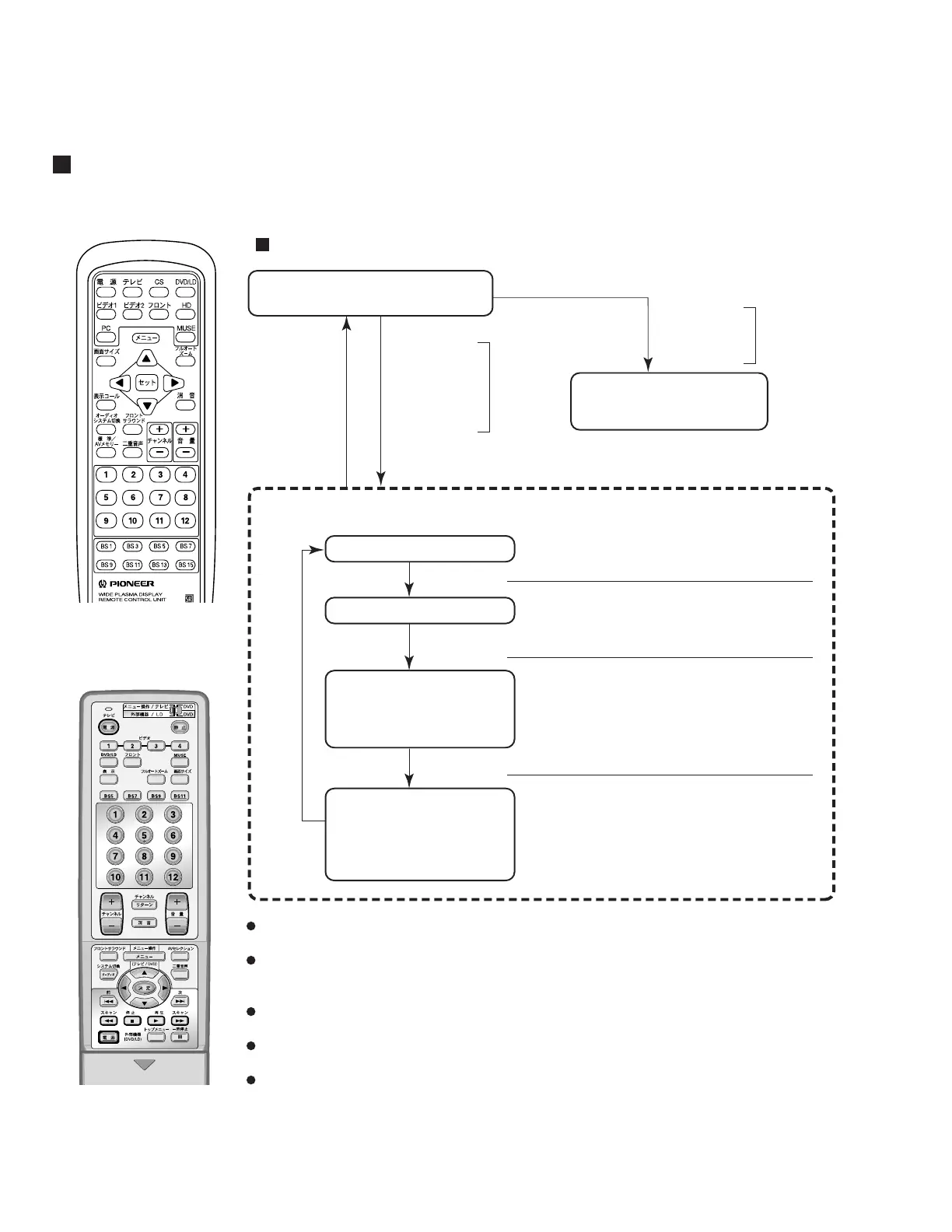

SERVICE FACTORY MODE
Perform the operations of Service factory mode using the remote control unit provided with thePDP-501HD
(CU-PD001: AXD1432) or the remote control unit provided with the PDP-502HD (CU-PDP009: AXD1673).
Normal Operation Mode
(Standby)
Service Factory Mode
SERVICE mode
RANGE CHECK mode
Integrator Mode
(refer to Technical Manual)
PICUTRE mode
REFERENCE 1…… "1" key
REFERENCE 2…… "2" key
VIDEO BOX ……… "3" key
INITIALIZE mode
SUB VIDEO…………
"1" key + "SET" key
DRIVE ADJ…………
"9" key + "SET" key
"Menu" key
‘
"Set" key
‘
∗
"Power" key
"Menu" key
‘
∗
"Power" key
"Menu" key
"MUTE" key
"MUTE" key
"MUTE"
key
"MUTE" key
within
3 seconds
within
3 seconds
∗
CU-PDP009 has two "Power" keys. In Service factory Mode, use the
"Power" key located on the upper left of the remote control unit.
Mode for checking operations of each device at
video section, by changing its adjustment value to
maximum and to minimum.
This mode is not used for repair service.
Displaying version of the system micro computer
Displaying type and format of detected input signal
Displaying the frequency/the number of lines of
input signal
Mode for adjusting video section (Independent for
each signal type and format)
Mode for adjusting video box (PDA-5001)
(PDP-502MXE only)
Mode for each setting
Drive section adjustment
Pulse/ABL adjustment
Sub video section adjustment
(Common value to all input signal)
CU-PDP001
(AXD1432)
CU-PDP009
(AXD1673)
Entering Service Factory Mode
In each adjustment mode, adjusted values can be changed with +/– of "SOUND VOLUME" key on the
remote control unit.
After adjustment, adjusted values can be fixed by pressing "SET" key.
Note)
When an input signal mode is changed, the adjustment mode is set to Normal operation mode
automatically.
SETTING (PC/VIDEO) and SIGNAL (RGB/COMPONENT) can not be changed in the service factory
mode.
When entering Service factory mode, all items of PICTURE adjustment in Normal menu/Integrator mode
and all items of SCREEN menu (such as position adj.), except for CLK Phase, are reset to their initial
value.
6. ADJUSTMENT
