8. PANEL FACILITIES AND SPECIFICATIONS

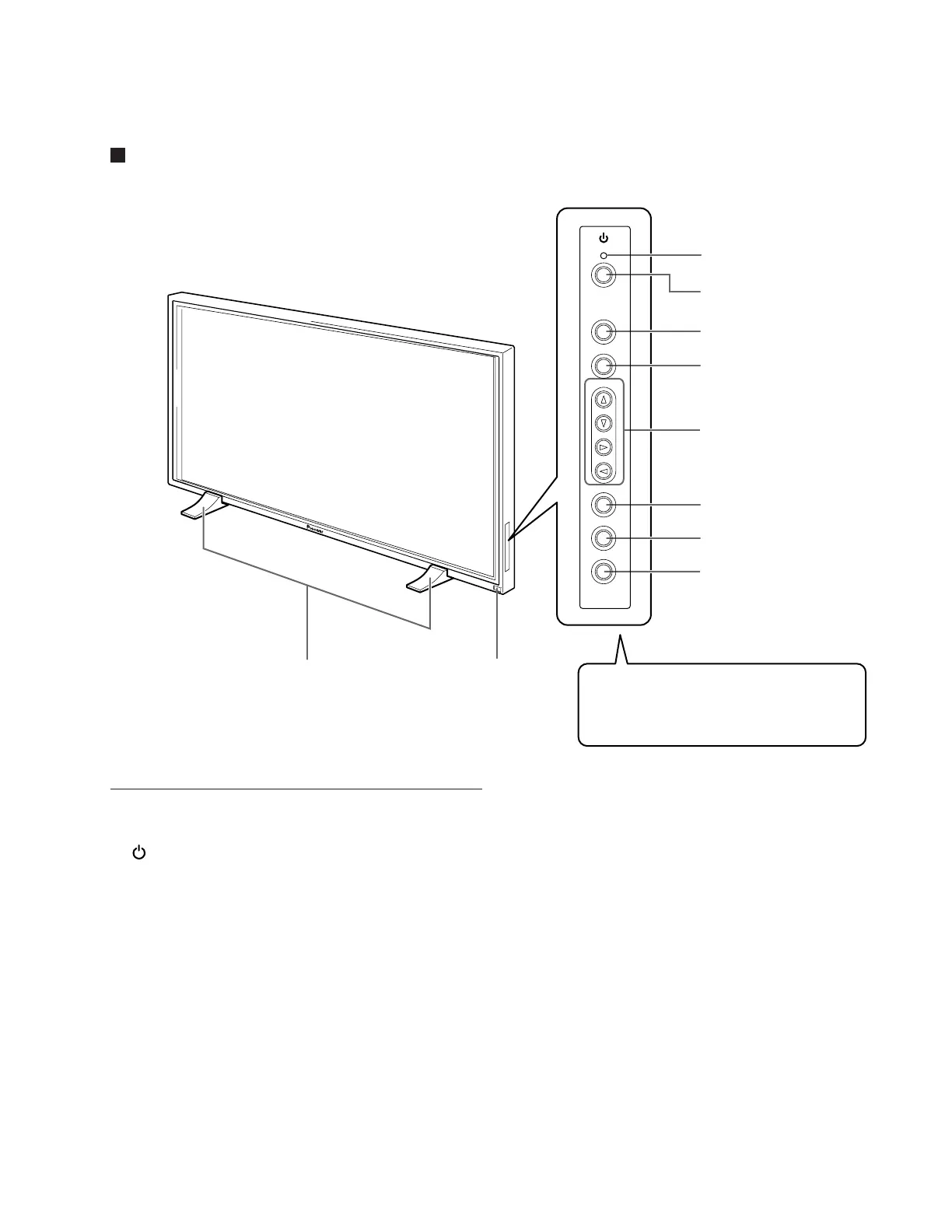

PANEL FACILITIES
Main unit
1 Display stand
2 Remote control sensor
Point the remote control toward the remote sensor to
operate the unit
Operation panel on the main unit
3 STANDBY/ON indicator
This indicator is red during standby mode, and turns to
green when the unit is in the operation mode.
4 STANDBY/ON button
Press to put the display in operation or standby mode.
5 INPUT button
Press to select input.
6 MENU button
Press to open and close the on-screen menu.
7 ADJUST (5/∞/3/2) buttons
Use to navigate menu screens and to adjust various
settings on the unit.
Usage of cursor buttons within operations is clearly
indicated in the on-screen display.
8 SET button
Press to adjust or enter various settings on the unit.
9 SIZE button
Press to manually select the screen size.
0 DISPLAY button
Press to view the unit’s current input and setup mode.
Note
When optional speakers have been connected,
the operation panel on the main unit will not be
operable.
Main unit
Operation panel on the main unit
Main unit
(for PDP-502MX and PDP-502MXE)
