PDP-502MX
87

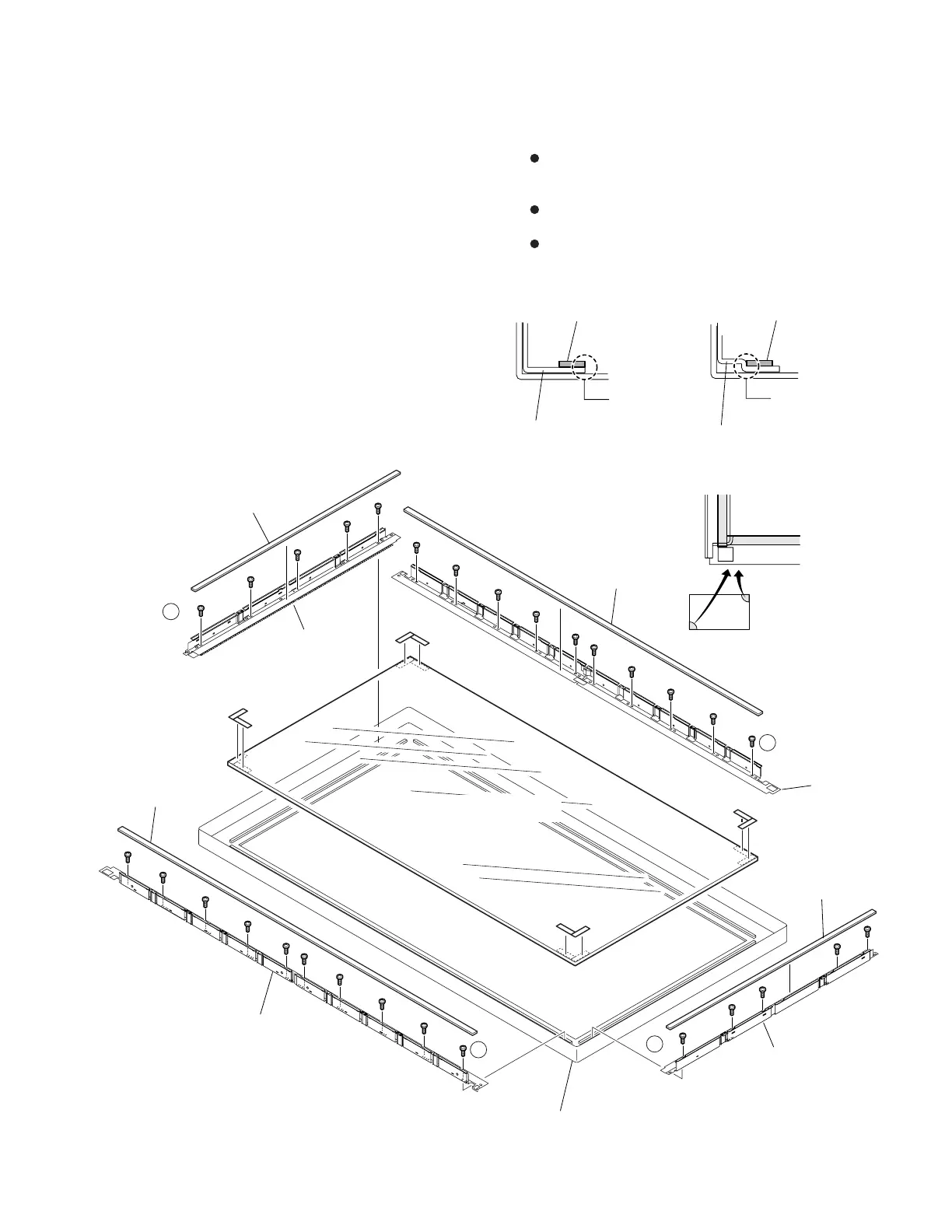

3.Removing and installing Front Protection Panel
1) Remove all 30 screws E: BPZ30P080FZK that fixes Panel
Holder V and Panel Holder Assy to Front Case.
2) Remove Front Protection Panel and replace it.
3) Install Front Protection Panel by attaching to the bottom left
side first, and then attach a Corner Cushion to each corner (only
bottom left side, attach a Corner Gasket).
Note) When new Front Protection Panel is installed, Panel Sheet H
and Panel Sheet V attached to Front Case are not needed to
be replaced.
4) Assemble Front Case in the opposite order of disassembling it.
Mount Panel Holder Assy first, then mount Panel Holder V.
Note)
Attach Panel Cushion V along the base of bending line of Panel
Holder V, and attach Panel Cushion H along the edge of Panel
Holder Assy like shown in Figure 3.
Panel Holder V / Panel Shield V and Panel Holder Assy / Panel
Shield H are inlaid fixed structures.
Be careful not to lose Remote Receiver lens and LED lens,
because they are not fixed to any where after removing Panel
Holder Assy.
E
×10
E
×10
E
×5
E
×5
Corner
Gasket
Front Case
Panel Cushion V
Panel Cushion V
Panel Cushion H
Panel Cushion H
Panel Holder V
Panel Holder V
Panel Holder Assy
Panel Holder
Assy
Front Protection Panel
Corner
Cushion
Corner
Cushion
Corner
Cushion
How to attach Panel Cushions
In this two corners,
do not put the Panel
cushion on the other
one.
Panel Cushion H
Panel Cushion V
Place it along the base
of bending line
Place it along
the edge
Panel Holder Assy
Panel Holder V
To Next Page
