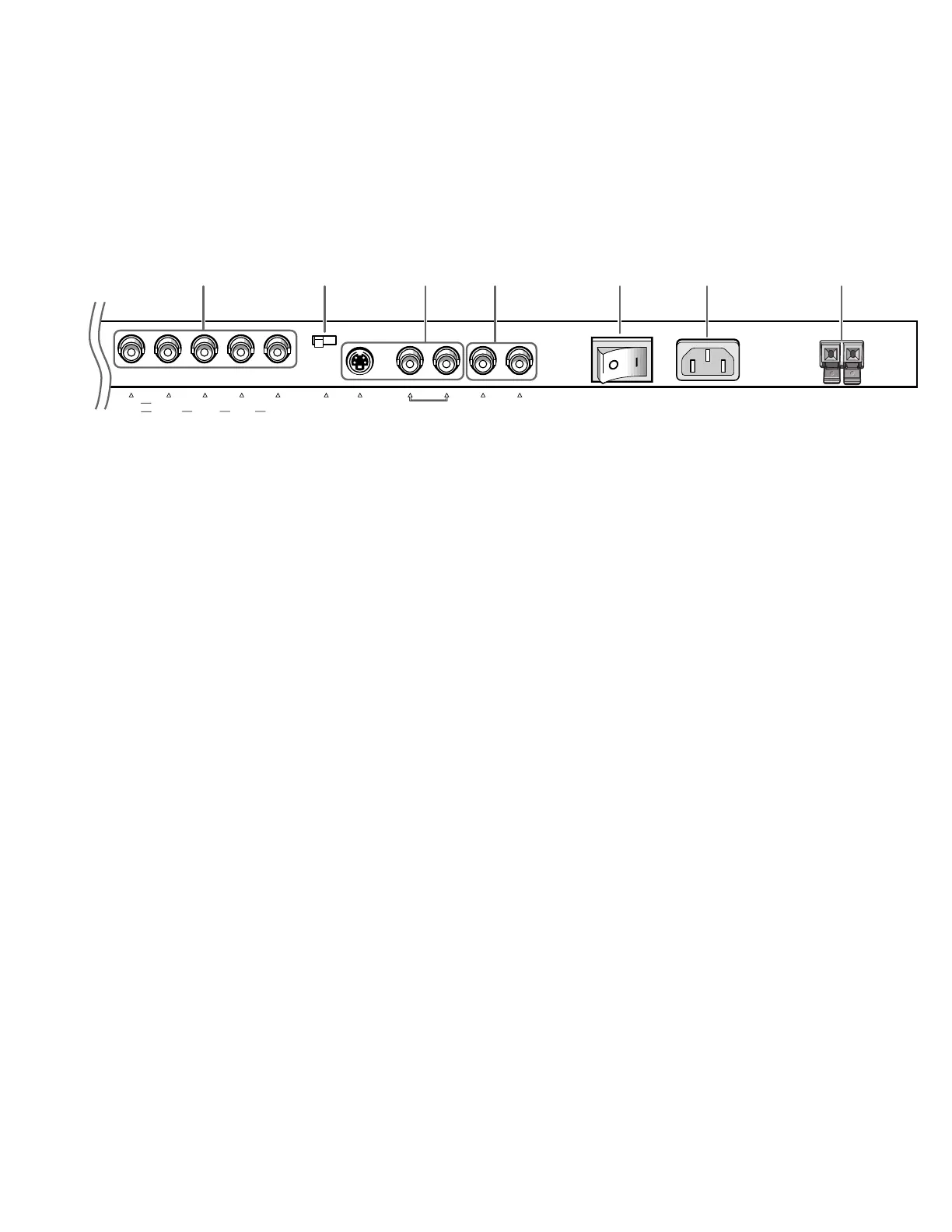

PDP-502MX, PDP-502MXE
93
INPUT3
Y
GBR
[ON SYNC] [H/V SYNC]
INPUT2
C
B
/P
B
C
R
/P
R
75Ωj2.2kΩ
MAIN POWER
OFF ON
AC INLET
90-= ~! @
SPEAKER
L
+–
8 Ω – 16 Ω
HD VD
S-VIDEO VIDEO
INPUT1
OUTPUT
(INPUT1)
CY
9 INPUT3
For connection of components that have RGB or
component output jacks such as a personal computer,
DVD player, or external RGB decoder.
0 Synchronizing signal impedance selector switch
Depending on the connections made at INPUT3, it may
be necessary to set this switch to match the output
impedance of the connected component’s
synchronization signal.
When the output impedance of the component’s
synchronization signal is above 75 Ω, set this switch to
the 2.2 kΩ position.
- INPUT2
For connection of components that have an S-video
output jack or Y/C separate video output jacks such as a
video deck, video camera, laser disc player, or DVD
player.
Note: Do not use both the S-VIDEO jack and the BNC
jacks in parallel. Doing so may cause this unit to
malfunction or become damaged.
= INPUT1
For connection of components that have a composite
video output jack such as a video deck, video camera,
laser disc player, or DVD player.
Use the INPUT1 OUTPUT jack to output the video signal
to an external monitor or other component.
Note: The video signal will not be output from the INPUT1
OUTPUT jack when the main power of this unit is off or in
standby mode.
~ MAIN POWER switch
Use to switch the main power of the unit on and off.
! AC INLET
Use to connect the supplied power cord to an AC outlet.
@ SPEAKER (L) terminal
For connection of an external left speaker. Connect a
speaker that has an impedance of 8 -16 Ω.
To Next Page
