6.4 COMMAND
6.4.1 RS-232C Command

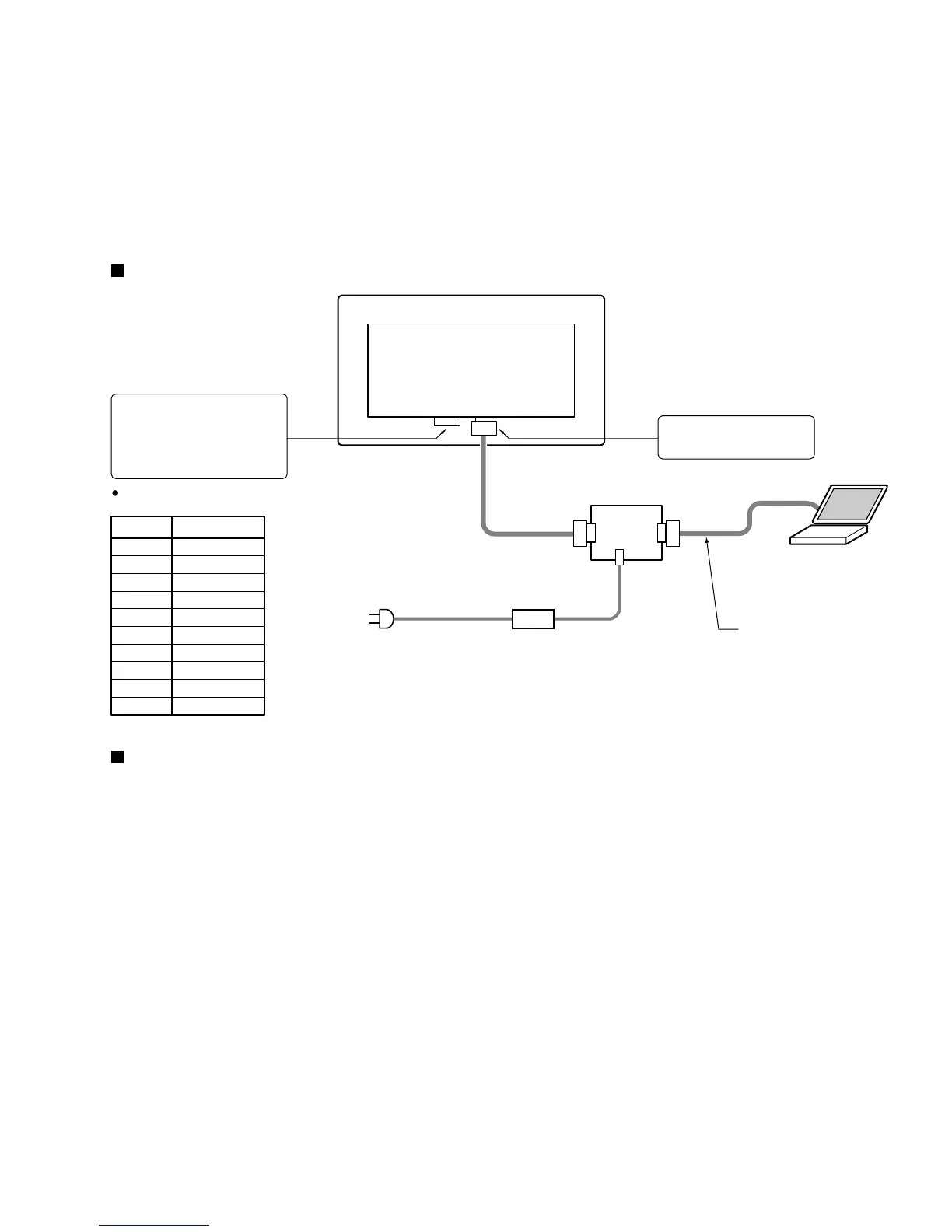

Connection
As for PDP-503P system, the 232C control of the panel control item is possible by a single state.
However, the following exclusive use communication jig is necessary.
∗ Be careful so that can not use a DSUB 9-pin in the rear panel of the media receiver.
38400 bps is fixed.
Communication baudrate
PDP rear view
DVI (Video line):
Input optional video from the
signal source with the DVI
output.
Input timing is as follows.
Communication line:
Connect a system cable.
PC for control
Connect to DSUB 9-pin
DSUB 9-pin straight cable
Exclusive use
communication jig
AC-DC adapter
(9V or 12V output)
DVI input timing
XGA60 (VESA conformity)
CLK 65MHz
H total 1344 clk
H disp 1024 clk
H sync 136 clk
H BP 160 clk
V total 806 line
V disp 768 line
V sync 6 line
V BP 29 line
fH 48.363 kHz
fV 60.004 Hz
