PDP-503PE, PDP-503PU
7. GENERAL INFORMATION
7.1 DIAGNOSIS

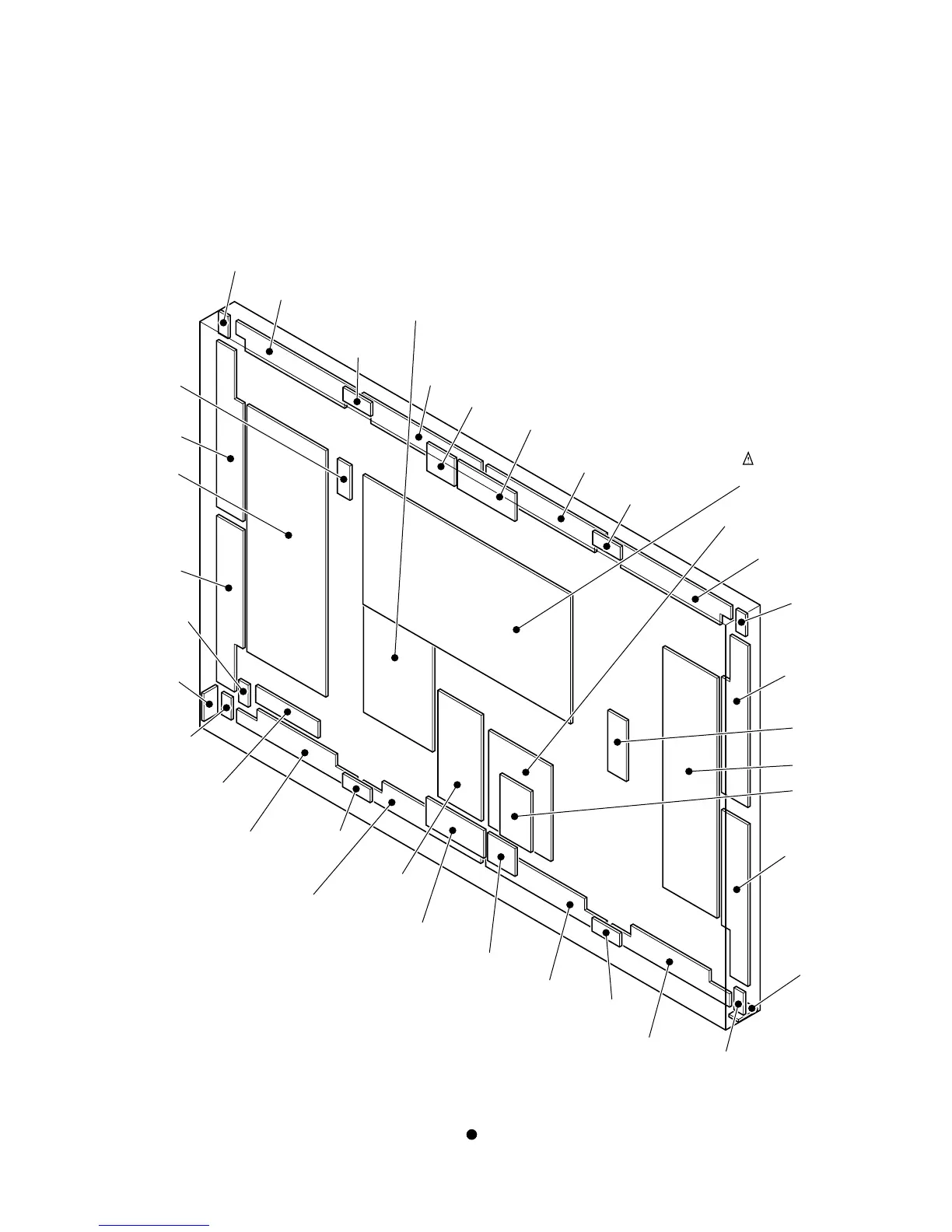

7.1.1 PCB LOCATION
Rear View
DIGITAL VIDEO
Assy
BRIDGE B
Assy
ADR CONNECT D
Assy
CLAMP C
Assy
FRONT KEY
CONN
Assy
IR (P) Assy
CLAMP D
Assy
CLAMP B
Assy
X CONNECTOR (A)
Assy
V MID CLAMP
Assy
X CONNECTOR (B)
Assy
FRONT KEY
Assy
LED Assy
SP TERMINAL
Assy
X DRIVE Assy
AUDIO AMP
Assy
ADR CONNECT A
Assy
Y DRIVE
Assy
SCAN (A)
Assy
THERMAL
SENSOR
Assy
BRIDGE A
Assy
SCAN (B)
Assy
ADR CONNECT B
Assy
ADR RESONANCE
Assy
SUB ADDRESS A
Assy
SUB ADDRESS B
Assy
ADR RESONANCE
Assy
ADR CONNECT C
Assy
ADR CONNECT D
Assy
CLAMP A
Assy
ADR CONNECT C
Assy
MR INTERFACE
Assy
SW POWER SUPPLY
Module
BRIDGE C
Assy
BRIDGE D
Assy
ADR CONNECT B
Assy
ADR CONNECT A
Assy
