PDP-504PU
34
1234
1234
C
D
F
A
B
E

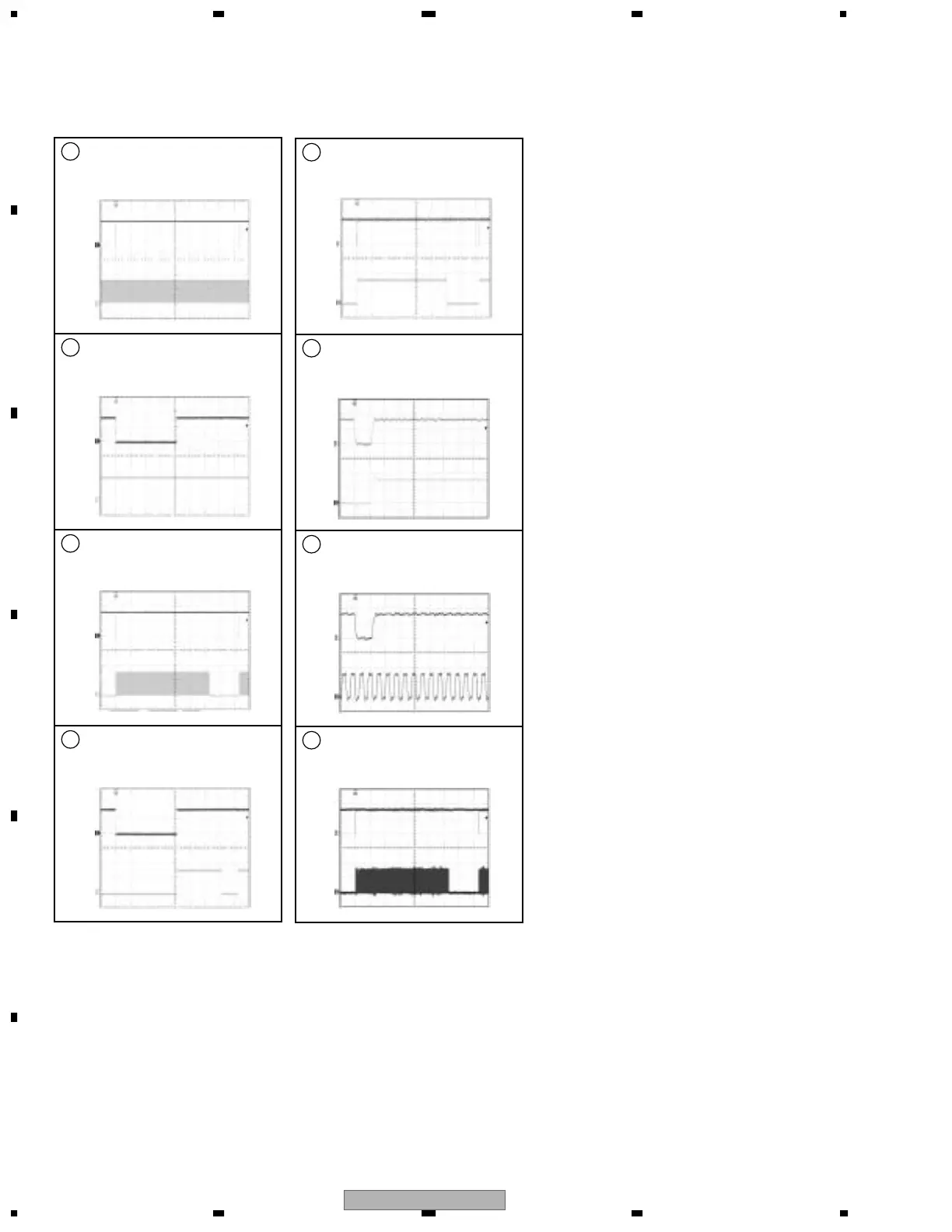

3.2 WAVEFORMS
DIGITAL VIDEO ASSY
1
CH1: K5003 (VD)
CH2: K5002 (HD)
V: 2V/div. H: 2msec/div.
CH1
CH2
1
CH1: K5003 (VD)
CH2: K5002 (HD)
V: 2V/div. H: 4µsec/div.
CH1
CH2
2
CH1: K5003 (VD)
CH2: K5004 (DE)
V: 2V/div. H: 2msec/div.
CH1
CH2
2
CH1: K5003 (VD)
CH2: K5004 (DE)
V: 2V/div. H: 4µsec/div.
CH1
CH2
3
CH1: K5002 (HD)
CH2: K5004 (DE)
V: 2V/div. H: 2µsec/div.
CH1
CH2
3
CH1: K5002 (HD)
CH2: K5004 (DE)
V: 2V/div. H: 40nsec/div.
CH1
CH2
4
CH1: K5002 (HD)
CH2: CN5001-pin 77 (DCLK)
V: 2V/div. H: 40nsec/div.
CH1
CH2
5
CH1: K5003 (VD)
CH2: CN5001-pin 88 (RA_IN2)
V: 2V/div. H: 2msec/div.
CH1
CH2
