PDP-504PU
54
1234
1234
C
D
F
A
B
E
7. GENERAL INFORMATION
7.1 DIAGNOSIS

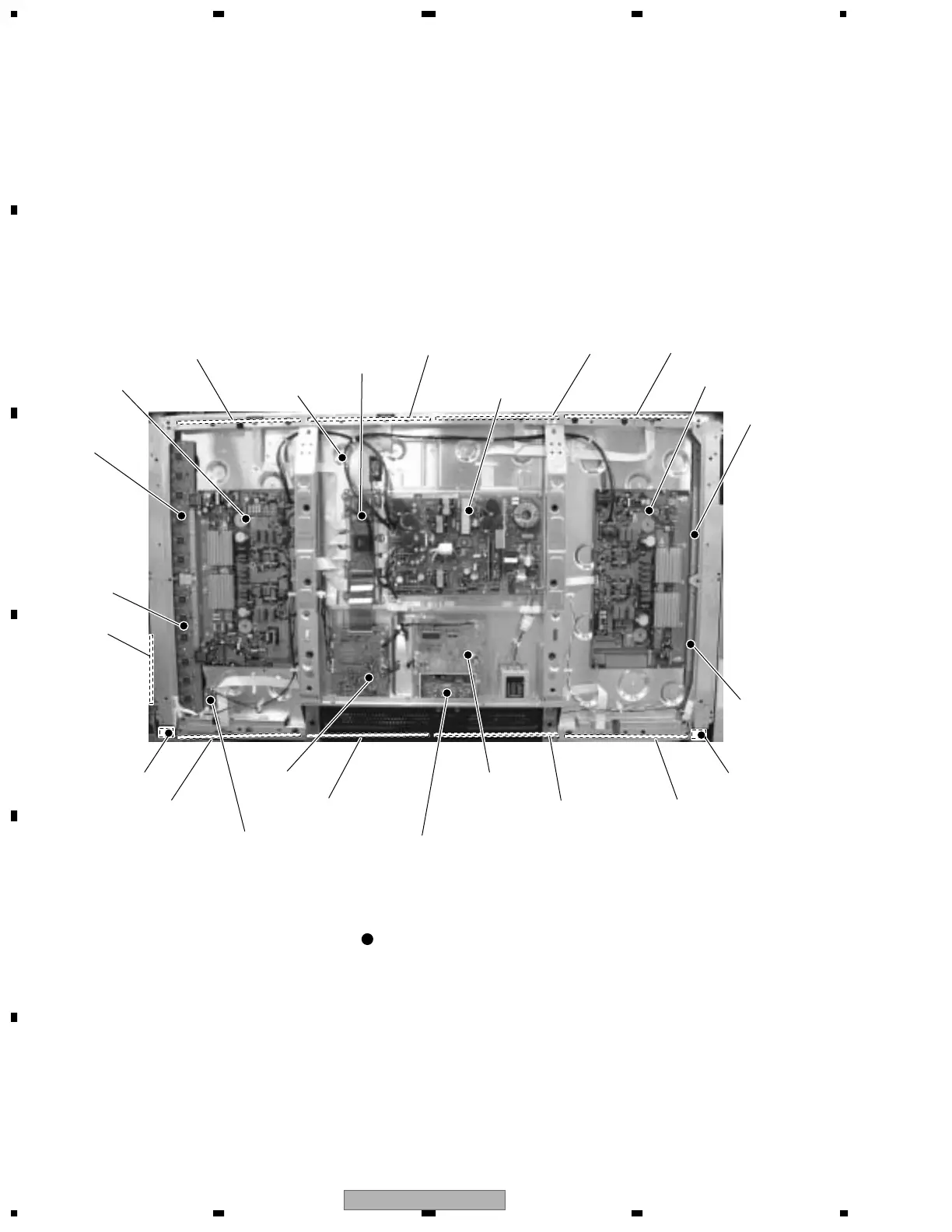

7.1.1 PCB LOCATION
POWER SUPPLY Unit
HD AUDIO
AMP Assy
PANEL IF Assy
Rear view
DIGITAL VIDEO Assy
50 Y DRIVE Assy
50 SCAN B
Assy
50 SCAN A
Assy
KEY CONTROL Assy
X CONNECTOR
B Assy
X CONNECTOR
A Assy
HD SP
TERMINAL Assy
50 ADDRESS Assy
50 ADDRESS Assy
50 ADDRESS Assy
50 ADDRESS Assy
50 ADDRESS Assy
50 ADDRESS Assy
50 ADDRESS Assy
50 ADDRESS Assy
50 X DRIVE Assy
PANEL LED Assy
PANEL SENSOR
Assy
PANEL IR Assy
PANEL KEY
Assy
