Pioneer PDP-504PU User Manual

PDP-504PU
38
1234
1234
C
D
F
A
B
E

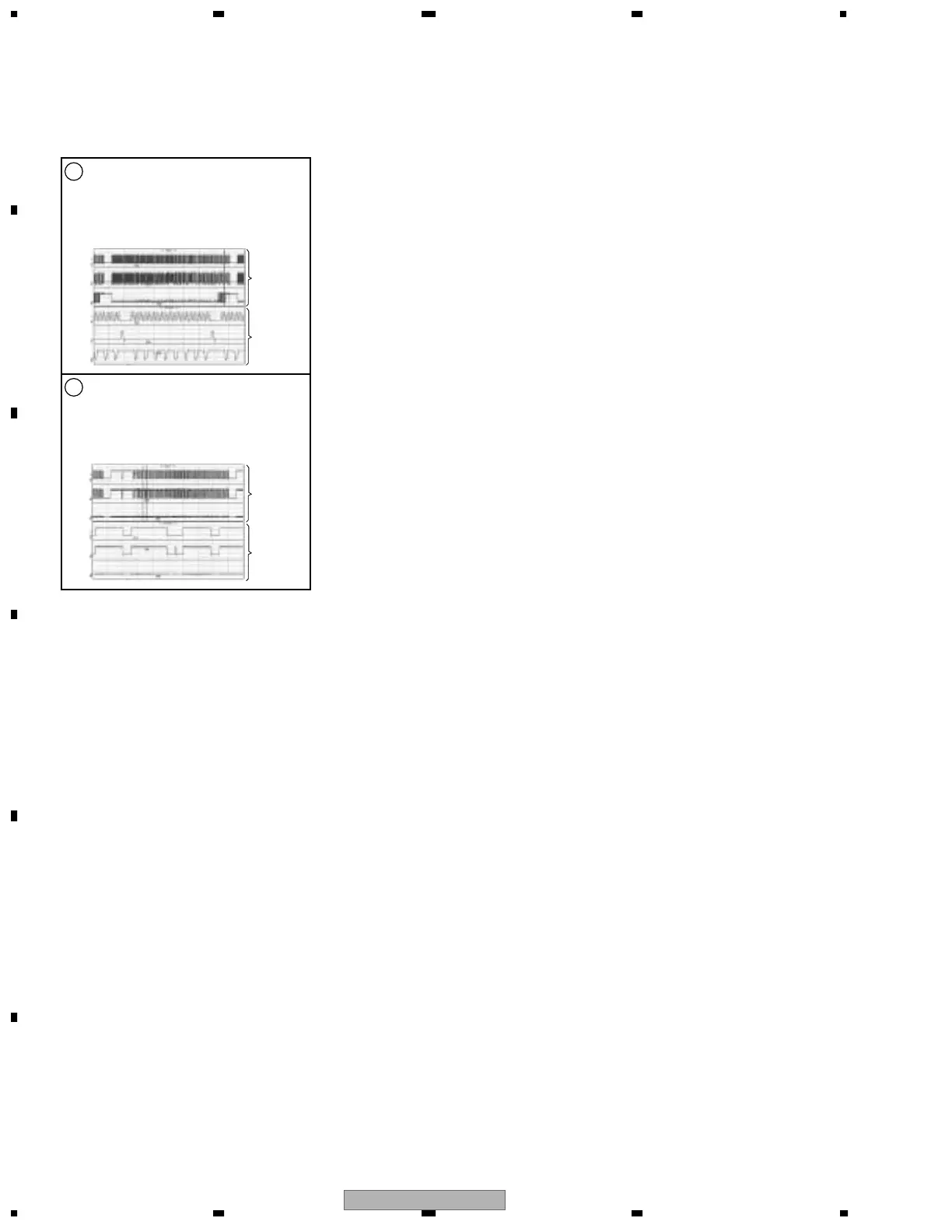

50 ADDRESS ASSY
• ADR LOGIC BLOCK
CH1: IC1553-pin 18 (CLK input)
CH2: IC1553-pin 16 (LE input)
CH3: IC1553-pin 9 (DATA input)
V: 1V/div.
(Input: VIDEO, Signal: Color-bar)
CH1
H:
2msec/div.
CH2
CH3
CH1
CH2
CH3
1
H:
200nsec/div.
CH1: IC1553-pin 23 (HBLK input)
CH2: IC1553-pin 19 (LBLK input)
CH3: IC1553-pin 25 (HZ input)
V: 1V/div.
(Input: VIDEO, Signal: Color-bar)
CH1
H:
2msec/div.
CH2
CH3
CH1
CH2
CH3
2
H:
50µsec/div.
