Data on temperature (INFORMATION-TEMPERATURE)
The data on the current temperatures are displayed.
The temperature at the PANEL SENSOR ASSY of the PDP-434P/PDP-504P is indicated as the TEMP 1 value (000-255),
which should be converted using the following formula:
Current temperature (°C) 0.65 × TEMP 1 value - 52
Note: Shutdown caused by high TEMP 1 value
PDP-434P: TEMP 1 value > 200 ( 77°C)
PDP-504P: TEMP 1 value > 209 ( 83°C)

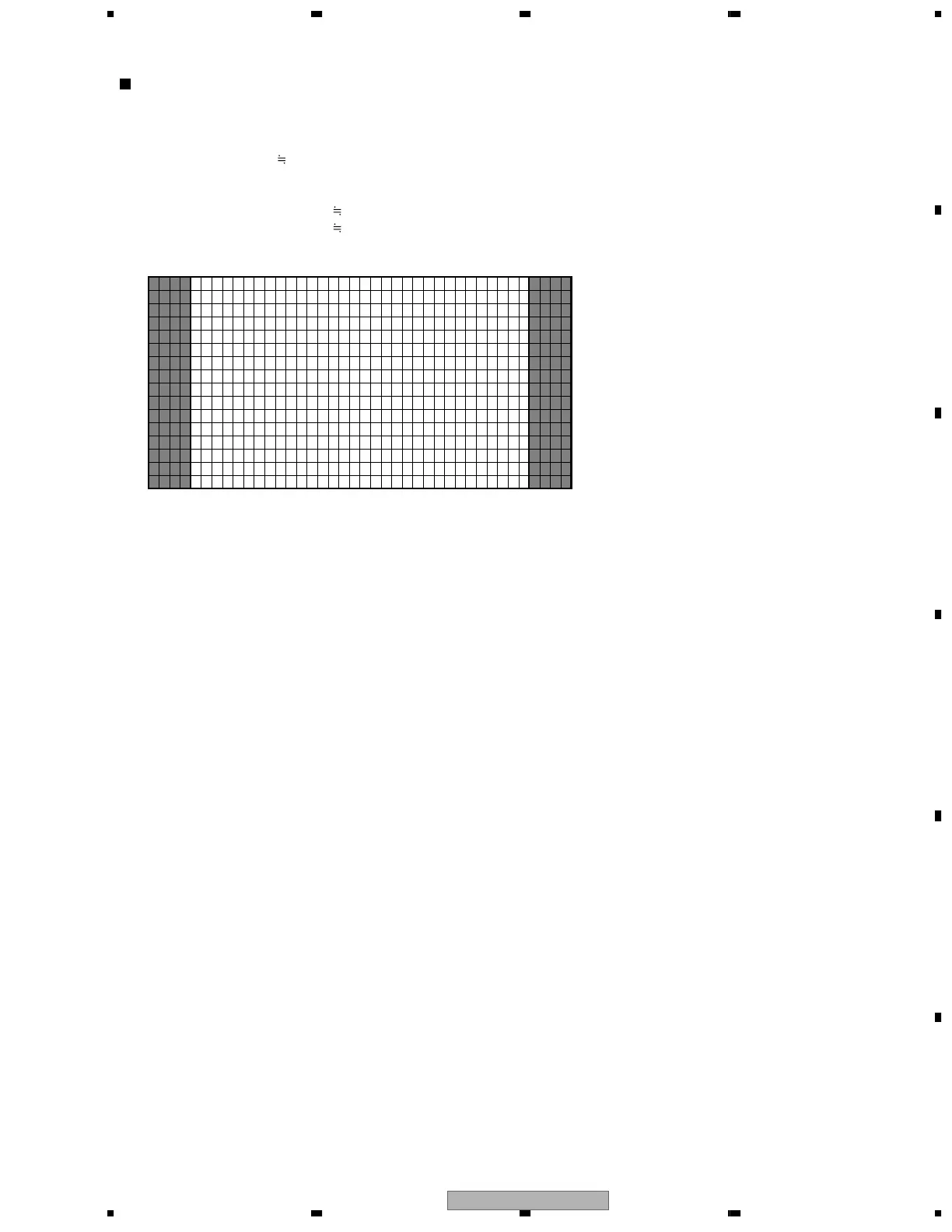

NNIFOMRI–N1 013–NTV S–T1AT IO
1
1
5
10
15
16
510152025303540
TEMPERATURE
TEMP
1:128
TEMP
2:149
:1FAN 25
Note: To update the data on temperature, use the Left and Right keys on the remote control unit.
