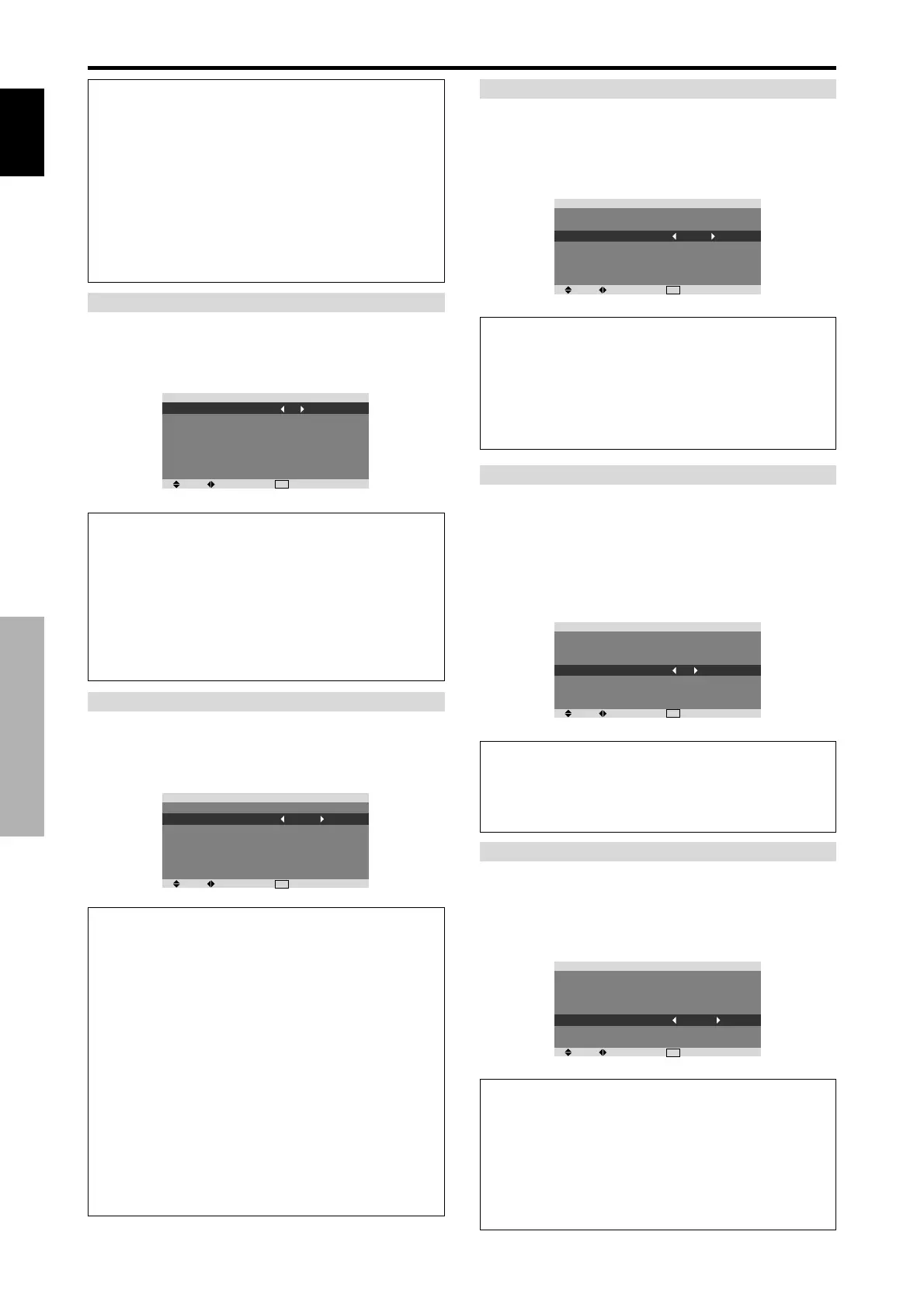

OSD (On Screen Display) Controls
ABL (Auto Brightness Limiter)
Use this to activate the brightness limiter.
Example: Setting “ABL” to “75”
On “ABL” of “LONG LIFE” menu, select “75”.
SEL. ADJ.
EXIT
RETURN
LONG LIFE
ABL
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSD ORBITER
OSD CONTRAST
: 75
: OFF
: OFF
: OFF
: OFF
: ON
: LOW
Information
 ABL settings
100: The brightness of the screen is adjusted
automatically to suit the picture quality.
75, 50, 25: Sets maximum brightness.
The brightness level decreases in the order of 75, 50,
25. 25 provides minimum brightness.
* These values are approximate.
ORBITER
Use this to set the picture shift.
Example: Setting “ORBITER” to “AUTO1”
On “ORBITER” of “LONG LIFE” menu, select “AUTO1”.
SEL. ADJ.
EXIT
RETURN
LONG LIFE
ABL
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSD ORBITER
OSD CONTRAST
: 100
: AUTO1
: OFF
: OFF
: OFF
: ON
: LOW
Information
 ORBITER settings
OFF: Orbiter mode does not function.
This is the default setting when PC signal is input.
AUTO1: The picture moves around the screen
intermittently, making the picture smaller. This is the
default setting when a Video, a COMPONENT or an
HDMI signal is input. Set to “OFF” when these signals
are not used.
AUTO2: The picture moves around the screen
intermittently, making the picture bigger.
* When a Video, a COMPONENT or an HDMI signal is
input, the AUTO1 and 2 functions will affect only the
moving picture and will not make the screen smaller or
bigger.
INVERSE/WHITE
Use this to set the inverse mode or to display a white screen.
Example: Setting “INVERSE/WHITE” to “WHITE”
On “INVERSE/WHITE” of “LONG LIFE” menu, select
“WHITE”.
SEL. ADJ.
EXIT
RETURN
LONG LIFE
ABL
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSD ORBITER
OSD CONTRAST
: 100
: OFF
: WHITE
: OFF
: OFF
: ON
: LOW
Information
 INVERSE/WHITE Settings
OFF: Inverse/white mode does not function.
INVERSE: The picture is displayed alternately between
positive image and negative image.
WHITE: The entire screen turns white.
SCREEN WIPER
When this is set to ON, a white vertical bar moves
repeatedly from the left and of the screen to the right end
at a constant speed.
Example: Setting “SCREEN WIPER” to “ON”
On “SCREEN WIPER” of “LONG LIFE” menu, select
“ON”.
SEL. ADJ.
EXIT
RETURN
LONG LIFE
ABL
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSD ORBITER
OSD CONTRAST
: 100
: OFF
: OFF
: ON
: OFF
: ON
: LOW
Information
 SCREEN WIPER
ON: The white vertical bar appears.
OFF: Screen wiper mode does not function.
SOFT FOCUS
Reduces edges and softens the image.
Example: Setting “SOFT FOCUS” to “LEVEL2”
On “SOFT FOCUS” of “LONG LIFE” menu, select
“LEVEL2”.
SEL. ADJ.
EXIT
RETURN
LONG LIFE
ABL
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSD ORBITER
OSD CONTRAST
: 100
: OFF
: OFF
: OFF
: LEVEL2
: ON
: LOW
Information
 SOFT FOCUS settings
OFF: Turns the SOFT FOCUS function off.
LEVEL1, 2, 3, 4: Activates the SOFT FOCUS setting.
The higher numbers create a softer image.
“SHARPNESS” can not be adjusted on the
“PICTURE” menu.
Information
 When set to AUTO
Set automatically, as described below.
ABL: 100
ORBITER: AUTO1
INVERSE/WHITE: OFF
SCREEN WIPER: OFF
SOFT FOCUS: OFF
OSD ORBITER: ON
OSD CONTRAST: LOW
