Pioneer PDP-615EX

English
26
En
5 4 3 2 1
15 14 13 12 11
10 9 8 7 6

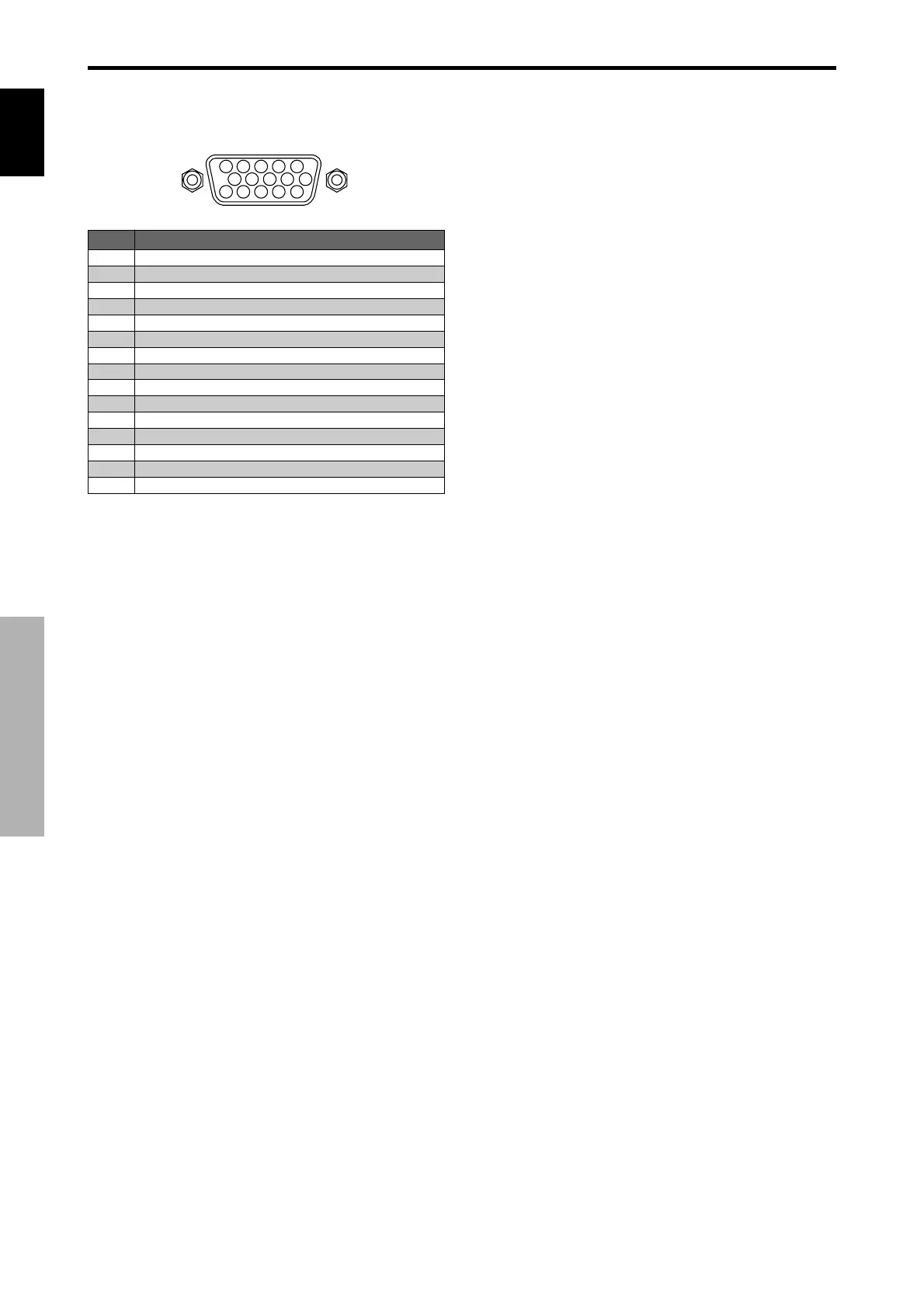

PC 1
mini D-Sub 15-pin connector
(Analog)
Signal (Analog)
Red
Green or sync-on-green
Blue
No connection
Ground
Red ground
Green ground
Blue ground
No connection
Sync signal ground
No connection
Bi-directional DATA (SDA)
Horizontal sync or Composite sync
Vertical sync
Data clock
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Pin Assignments
Pin Assignments
