Connecting your equipment
03
21
En
Determining the speakers’ application
This unit permits you to build various surround systems,
in accordance with the number of speakers you have.
•Be sure to connect speakers to the front left and right
channels (L and R).
• It is also possible to only connect one of the surround
back speakers (SB) or neither.

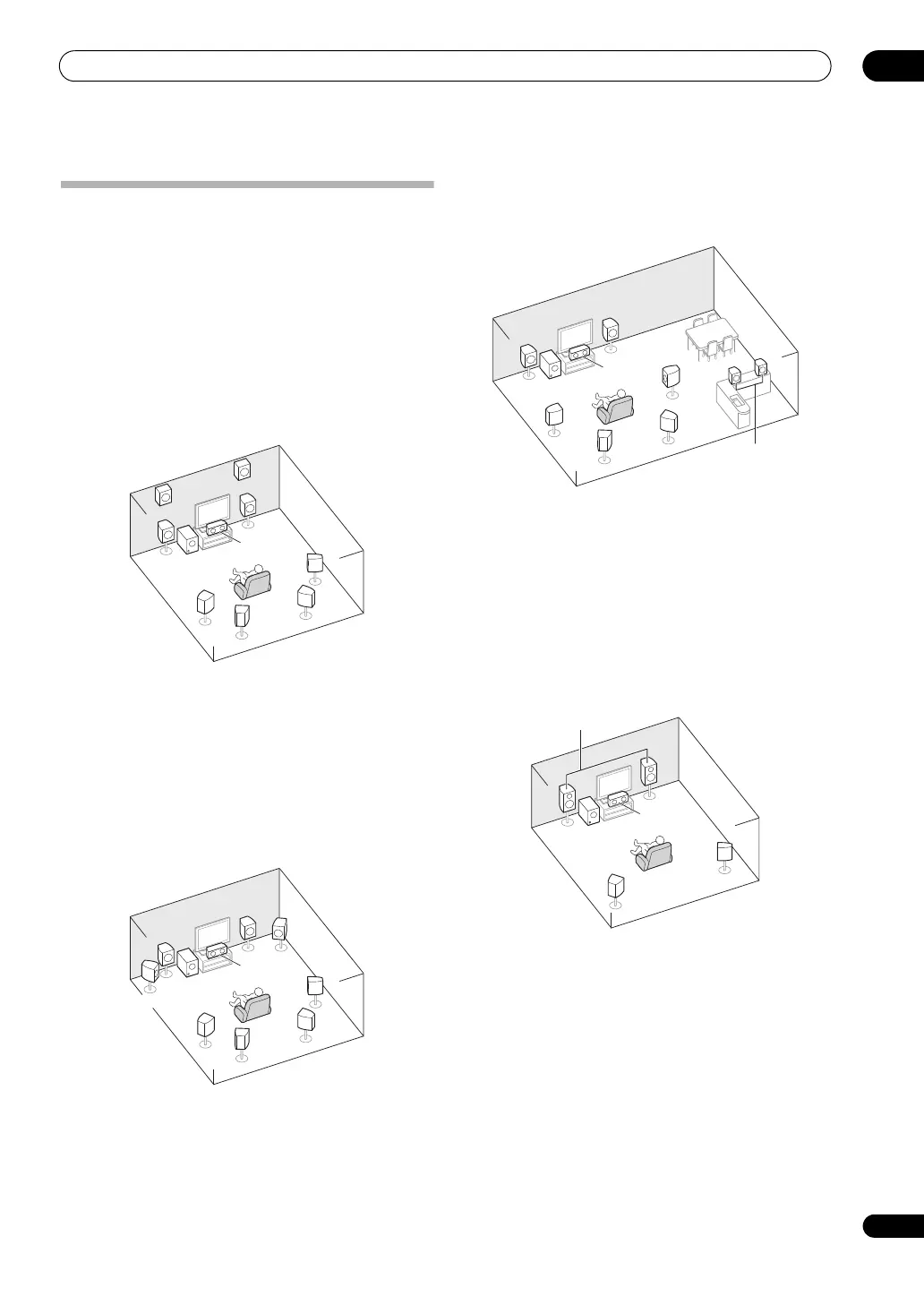

Choose one from Plans [A] to [E] below.
[A] 9.1 channel surround system (Front height)
*Default setting
• Speaker System setting: Normal(SB/FH)
A 9.1 ch surround system connects the left and right
front speakers (L/R), the center speaker (C), the left and
right front height speakers (FHL/FHR), the left and right
surround speakers (SL/SR), the left and right surround
back speakers (SBL/SBR), and the subwoofer (SW).
This surround system produces a more true-to-life sound
from above.
[B] 9.1 channel surround system (Front wide)
• Speaker System setting: Normal(SB/FW)
This plan replaces the left and right front height speakers
shown in [A] with the left and right front wide speakers
(FWL/FWR).
This surround system produces a true-to-life sound over
a wider area.
[C] 7.1 channel surround system & Speaker B
connection
• Speaker System setting: Speaker B
With these connections you can simultaneously enjoy
5.1-channel surround sound in the main zone with stereo
playback of the same sound on the B speakers. The same
connections also allow for 7.1-channel surround sound
in the main zone when not using the B speaker s.
[D] 5.1 channel surround system & Front Bi-
amping connection (High quality surround)
• Speaker System setting: Front Bi-Amp
Bi-amping connection of the front speakers for high
sound quality with 5.1-channel surround sound.
SL
L
FHL
SW
C
R
FHR
SR
SBL
SBR
FWR
FWL
L
SW
C
R
SBL
SBR
SL
SR
SL
L
SW
C
R
SR
SBL
SBR
L
R
Speaker B
L
R
SL
SW
C
SR
Front Bi-Amp
