Pioneer SVM-1000 Service Manual

15
SVM-1000
5
6 7 8
5
6 7 8
A
B
C
D
E
F

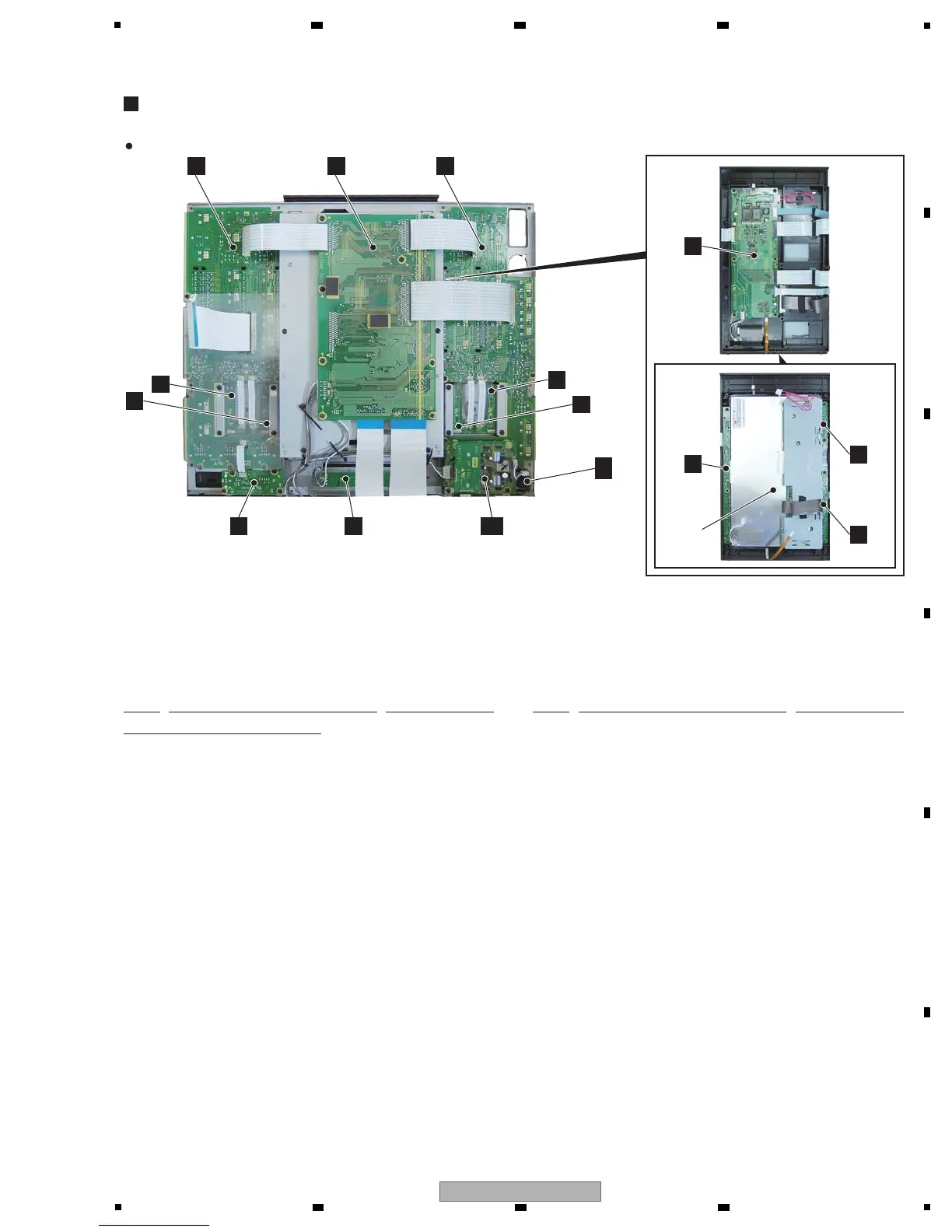

Operation Panel Section
Bottom view
CTL2A ASSY
J
CTL1 ASSY
I
SCPU ASSY
H
CTL2B ASSY
K
CFD4 ASSY
O
INVT ASSY
P
CTL3R ASSY
Q
LCD Panel
CFD1 ASSY
L
CTL3LA ASSY
S
CTL3LB ASSY
R
CFD2 ASSY
M
CFD3 ASSY
N
CRFD ASSY
T
HAMP ASSY
AA
HJCK ASSY
AB
1..MAIN ASSY DWX2715
NSP 1..SCIV ASSY DWM2302
2..SCPU ASSY DWX2706
2..INVT ASSY DWX2717
NSP 1..AUDI ASSY DWM2303
2..AUD1 ASSY DWX2718
2..DIO2 ASSY DWX2719
2..USB1 ASSY DWX2727
NSP 1..AUIL ASSY DWM2304
2..AUD2 ASSY DWX2721
2..ILMR ASSY DWX2722
2..ILML ASSY DWX2723
NSP 1..DIHP ASSY DWM2305
2..USB2 ASSY DWX2720
2..DIO1 ASSY DWX2724
2..PDIV ASSY DWX2725
2..HAMP ASSY DWX2726
2..SDIO ASSY DWX2728
2..MIDI ASSY DWX2751
2..REG ASSY DWX2767
2..COVER PCB DWX2793
NSP 1..CTVI ASSY DWM2306
2..CTL1 ASSY DWX2729
2..CTL3R ASSY DWX2730
2..VIO1 ASSY DWX2731
2..VIO2 ASSY DWX2732
2..VIN3 ASSY DWX2733
2..HJCK ASSY DWX2734
NSP 1..CTFD ASSY DWM2307
2..CTL2A ASSY DWX2735
2..CTL2B ASSY DWX2736
2..ACSW ASSY DWX2737
2..MJCK ASSY DWX2738
2..CRFD ASSY DWX2739
2..CFD1 ASSY DWX2740
2..CFD2 ASSY DWX2741
2..CFD3 ASSY DWX2742
2..CFD4 ASSY DWX2743
2..CTL3LA ASSY DWX2744
2..CTL3LB ASSY DWX2745
> 1..POWER SUPPLY UNIT DWR1440
> 1..LCD Panel CWX3405
Mark No. Description Part No. Mark No. Description Part No.
LIST OF ASSEMBLIES
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
