Pioneer VSA-E03 - Exploded Views and Parts List

3
VSA-E03

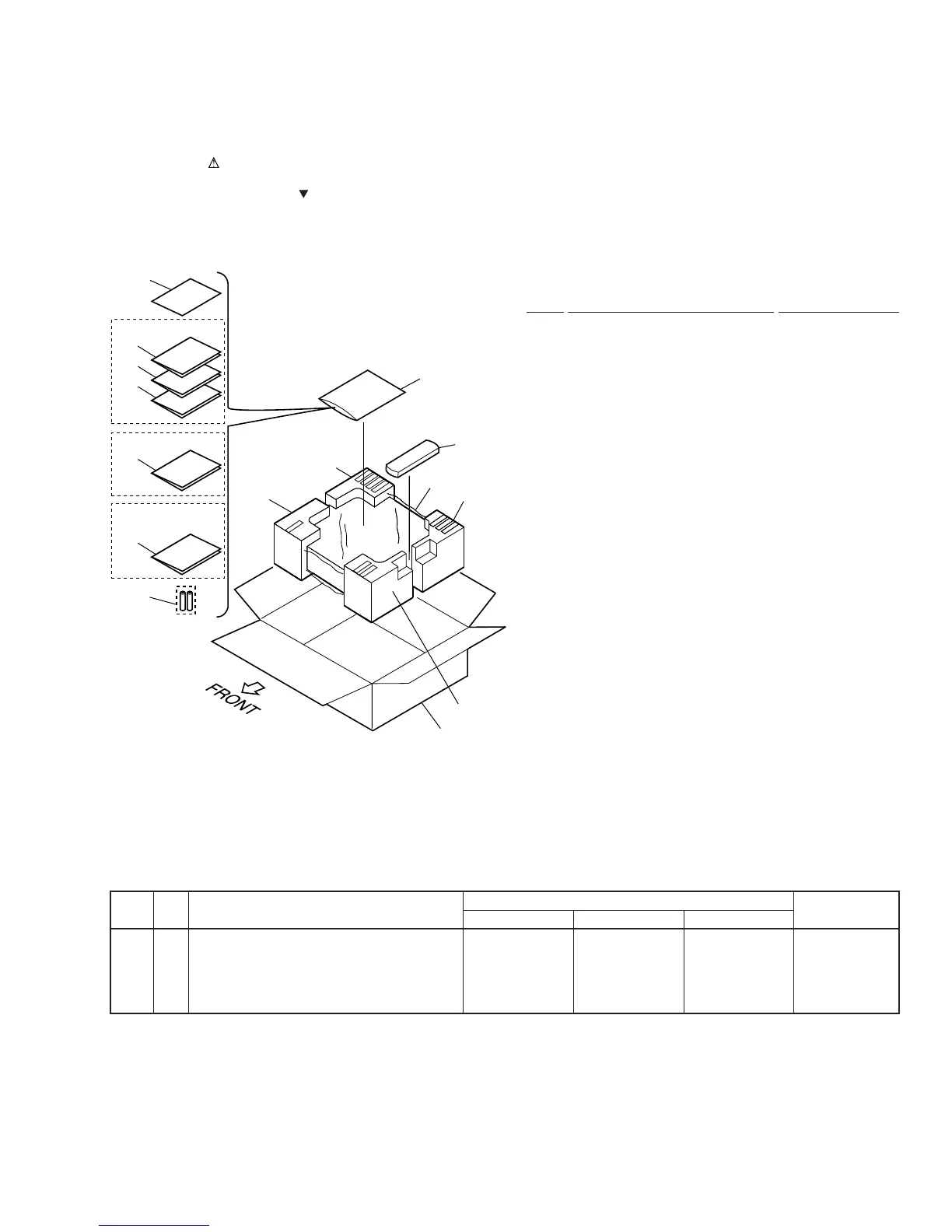

2.1 PACKING
(1) PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES:
•
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•
Screws adjacent to mark on the product are used for disassembly.
1 Packing Sheet AHG7010
NSP 2 Alkaline Dry Cell Battery VEM1012
(LR6, AA)
3 Operating Instructions See Contrast table (2)
4 • • • • •
5 • • • • •
6 • • • • •
NSP 7 Warranty Card ARY7022
8 Remote Control Unit AXD7237
(CU-VSA035)
9 • • • • •
10 Polyethylene Bag Z21-038
(0.03×230×340)
11 Front Pad 508 AHA7236
12 Rear Pad 508 AHA7237
13 Packing Case E03 AHD7781
14 Operating Instructions See Contrast table (2)
15 Operating Instructions See Contrast table (2)
16 Operating Instructions See Contrast table (2)
17 Operating Instructions See Contrast table (2)
7
3
14
15
16
17
HYXJI Type Only
Except HVXJI Type
Except
HYXJI/GR Type
2
10
11(1/2)
11(2/2)
12(2/2)
12(1/2)
1
13
8
Refer to
"7.3 REMOTE
CONTROL UNIT"
Mark No. Symbol and Description
Part No.
Remarks
HYXJI Type HYXJI/GR Type HVXJI Type
3 Operating Instructions (English) ARB7212 Not used ARB7212
14 Operating Instructions (German) ARC7226 ARC7226 Not used
15 Operating Instructions (French/Italian) ARC7267 Not used Not used
16 Operating Instructions (Swedish/Dutch) ARC7268 Not used Not used
17 Operating Instructions (Portuguese/Spanish) ARC7269 Not used Not used
(2) CONTRAST TABLE
VSA-E03/HYXJI, HYXJI/GR and HVXJI are constructed the same except for the following :
