VSA-E03
52
•
Parts List
Mark No. Description Part No.
1 Filter AZA7152
2 Name Plate AZA7336
3 Rubber Sheet (A) AZA7308
4 Rubber Sheet (B) AZA7335
5 Spring (+) AZB7049
6 Spring (–) AZB7050
7 Spring AZB7051
8 Screw AZB7052
9 Remo-con Case (A) AZN7737
10 Remo-con Case (B) AZN7326
11 Battery Cover AZN7327
12 Main Key (FF) AZN7666
13 Main Key (STOP) AZN7741
14 Main Key (REV) AZN7665
15 Main Key (PAUSE) AZN7742
16 Main Key (PLAY) AZN7664
NSP 17 PCB AZW7248
2
9
13
12
16
15
14
3
17
1
10
8
11
7
6
5
4

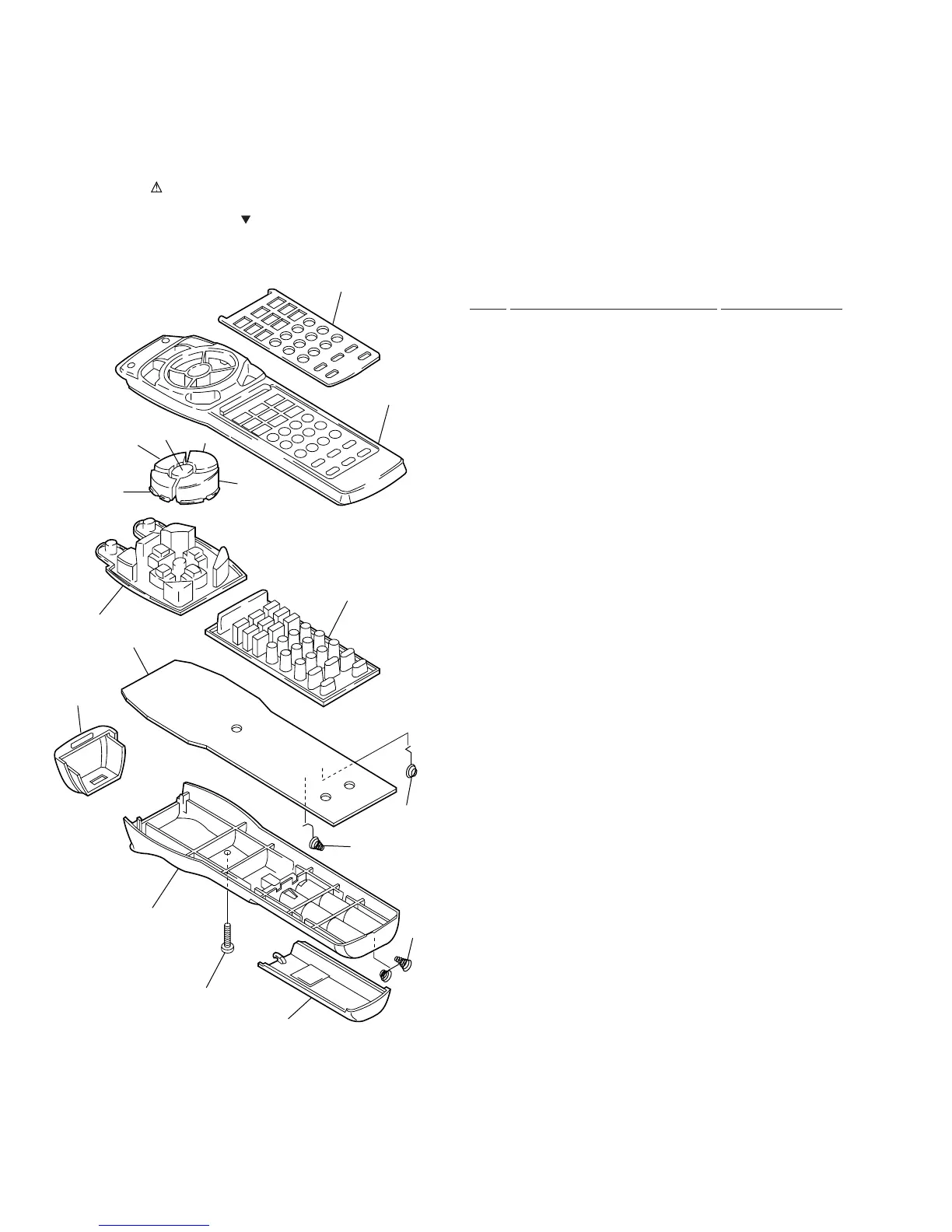

7.3 REMOTE CONTROL UNIT [CU-VSA035 (AXD7237)]
7.3.1 Exploded Views and Parts List
NOTES:
•
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•
Screws adjacent to mark on the product are used for disassembly.
