Pioneer VSA-E03 - Page 37

VSA-E03
37
A
B
C
D
1
234
1
2
3
4

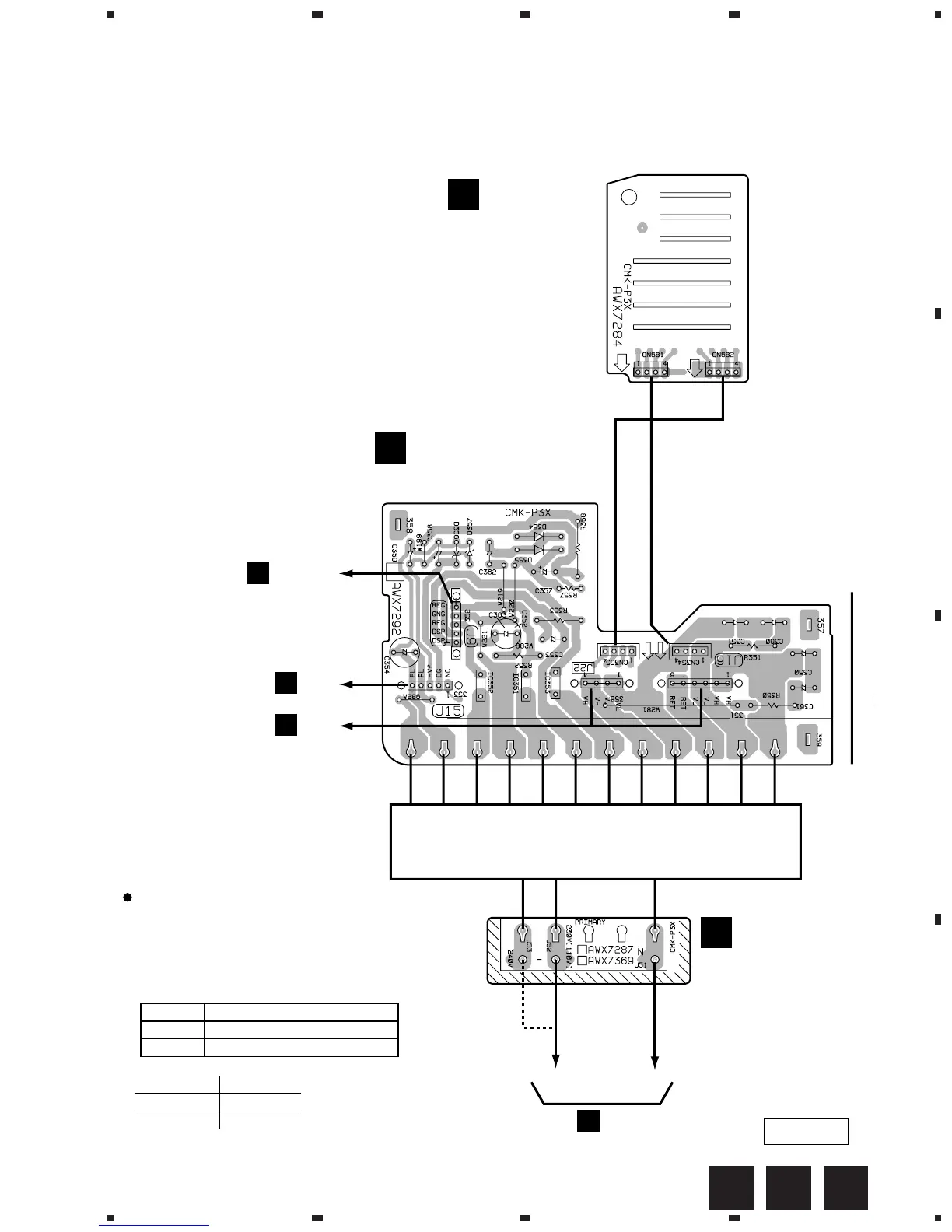

4.5 TRANS 2, TRANS 1 and BARRIER ASSYS
(ANP7274-A)
(ANP7274-A)
(ANP7274-A)
IC351
IC353
CN115
A
404
D
POWER TRANSFORMER (T1)
405
D
J51
D
TRANS 2 ASSY
J
TRANS 1
ASSY
K
BARRIER
ASSY
L
J52
SIDE A
220-230V
240V
Line Voltage can be changed by the following modification:
1. Disconnect the AC power cord.
2. Remove the cover.
3. Change the connection wire from TRANS 1 ASSY
[Terminal No. J52 or J53] to AMP ASSY (Terminal No. J52)
as follows.
Voltage Terminal No. of TRANS 1 ASSY
220-230V J52
240V J53
4. Stick a line voltage label on the rear panel.
Description Part No.
220V label AAX-193
240V label AAX-192
Line Voltage Selection
LKJ
