Pioneer VSA-E03 - Display Indicators

59
VSA-E03

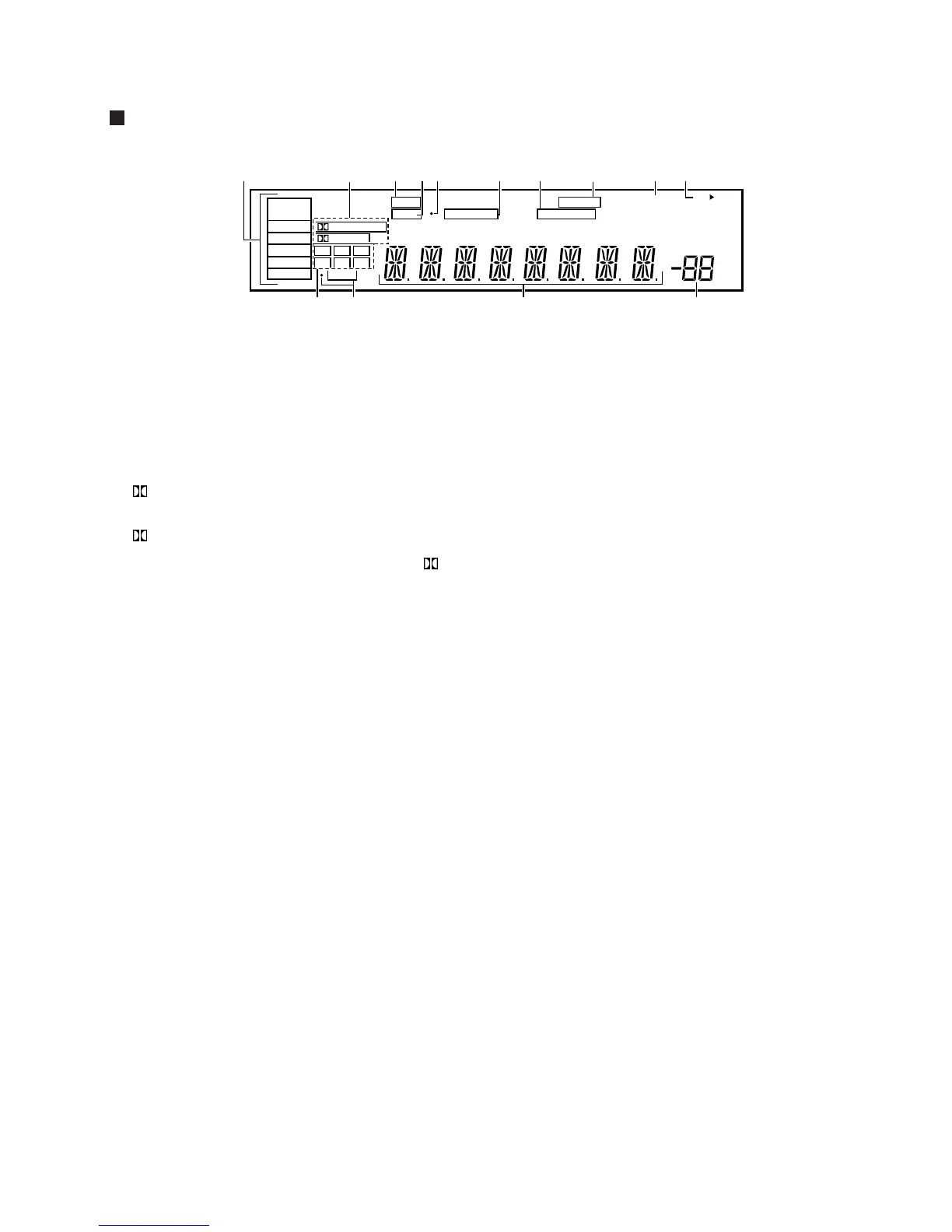

Display
- Program format indicators
The following indicators light to show the channels
being played back.
L : Left front*
1
*
2
, C : Center*
1
, R : Right front*
1
*
2
,
LS : Left surround*
1
, S : Surround (mono)*
2
,
RS : Right surround*
1
*1: Indicates 5.1ch Dolby Digital playback.
*2: Indicates Dolby Pro Logic playback.
= LFE indicator
LFE (Low Frequency Effects) indicator lights to
indicate that the program source contains an LFE
channel. The indicator to the left of LFE lights during
actual playback of the LFE signals (LFE signals are not
present in all parts of the sound track).
~ Character display
! Volume level display
Displays the volume level. Volume level is maintained
even when the power is off. ---dB indicates the
minimum level, and 0dB indicates the maximum
level.
• Depending on the level settings for individual
channels, the MAX level can range between –10dB
and 0dB.
1 SIGNAL SELECT indicators
Light to indicate the type of input signal selected for
the current component.
ANALOG : Lights when the analog audio signals are selected.
DIGITAL : Lights when the digital audio signals are selected.
AC-3 : Lights when a source with Dolby Digital signals is played.
2 Digital indicators
PRO LOGIC : When the Dolby Surround mode on
the amplifier is on, this indicator lights during 2
channel playback of Dolby Digital sources.
DIGITAL : When the Dolby Surround mode on the
amplifier is on, this indicator lights to indicate
playback of a Dolby Digital signal. However, PRO
LOGIC lights during 2 channel playback of Dolby
Digital.
3 SFC (DSP) mode indicator
Lights when the DSP mode is selected.
4 ATT indicator
Lights when ATT is used to reduce the level of the input
signal (available in ANALOG mode only).
5 Overload indicator
When “ANALOG” is selected in SIGNAL SELECT, this
indicator lights to show that an excessively strong
signal is being processed. When this occurs, press
ATT on the remote control to attenuate the signal.
6 MIDNIGHT indicator
Lights when the MIDNIGHT mode is on.
7 LOUDNESS indicator
Lights when loudness is on.
8 DIRECT indicator
Lights when direct playback is on.
9 H.P indicator
Lights when headphones are plugged in.
0 Speaker indicators
Light to indicate the current speaker system.
SP 3 A : Lights when speaker system A is selected.
SP 3 B : Lights when speaker system B is selected.
dB
SP
SIGNAL
SELECT
ANALOG
DIGITAL
AC-3
PRO LOGIC
AB
DIGITAL
LCR
RSSLS
LFE
SFC
ATT MIDNIGHT LOUDNESS
H.P
DIRECT
123456
7
0
!
8
9


=
-
~
